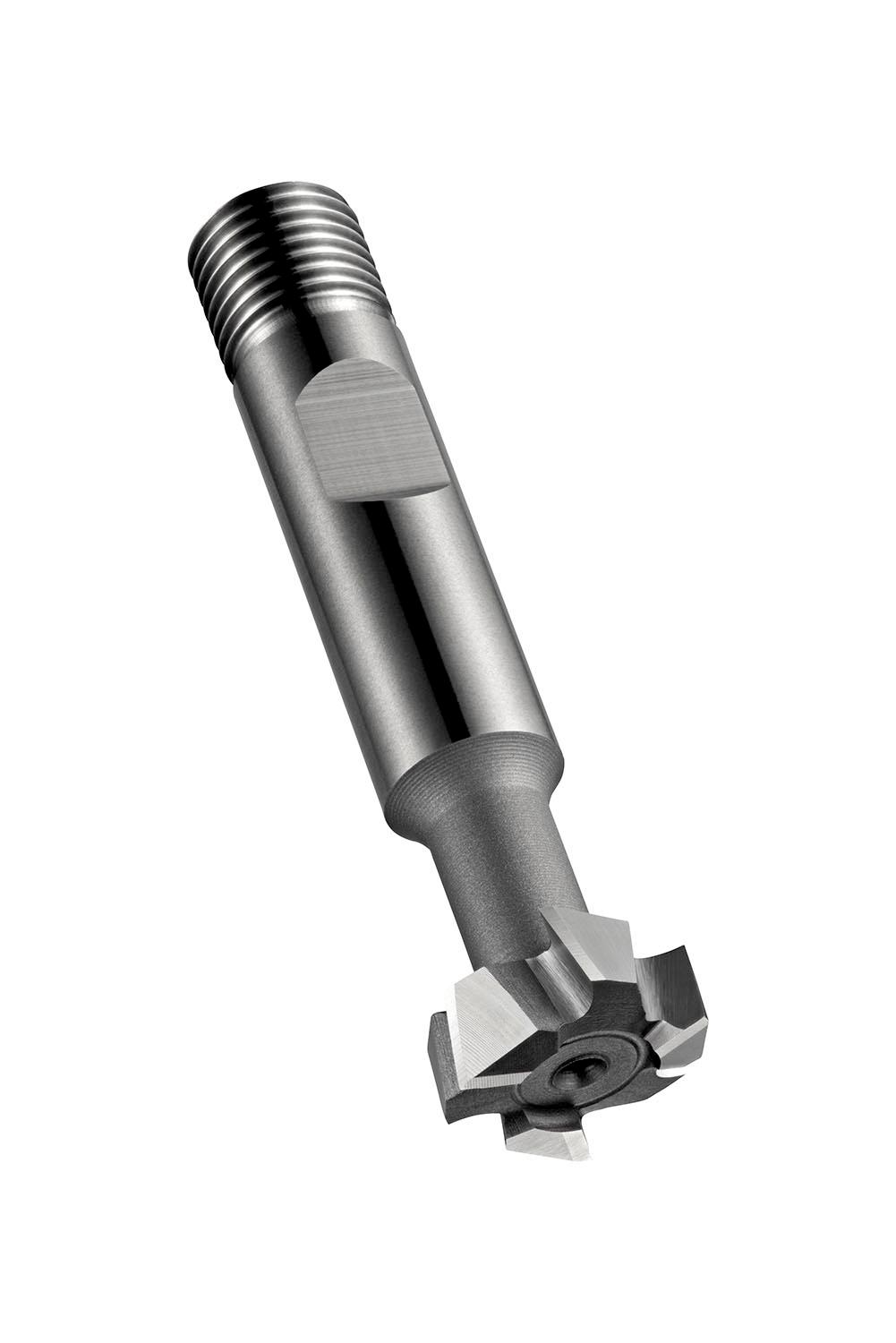

DORMER C80012.5X6.0 HSCO Cutters

Product Code: C80012.5X6.0

$280.98$255.44 Ex. GST

Product Code: C80012.5X6.0 SKU C80012.5X6.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

T-slot cutter with 6 teeth, diameter 12.5mm with 6mm depth of cut and 57mm overall length, according to DIN 851 standard with a 10mm combi shank with weldon flat and thread, cobalt based HSS-E with bright finish, 15° helix and 10° rake angle for T-slot milling in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.2728 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074442
Product number (SAP): 86014207
Ordering code ANSI: C80012.5X6.0
Gross weight – grams: 33.7

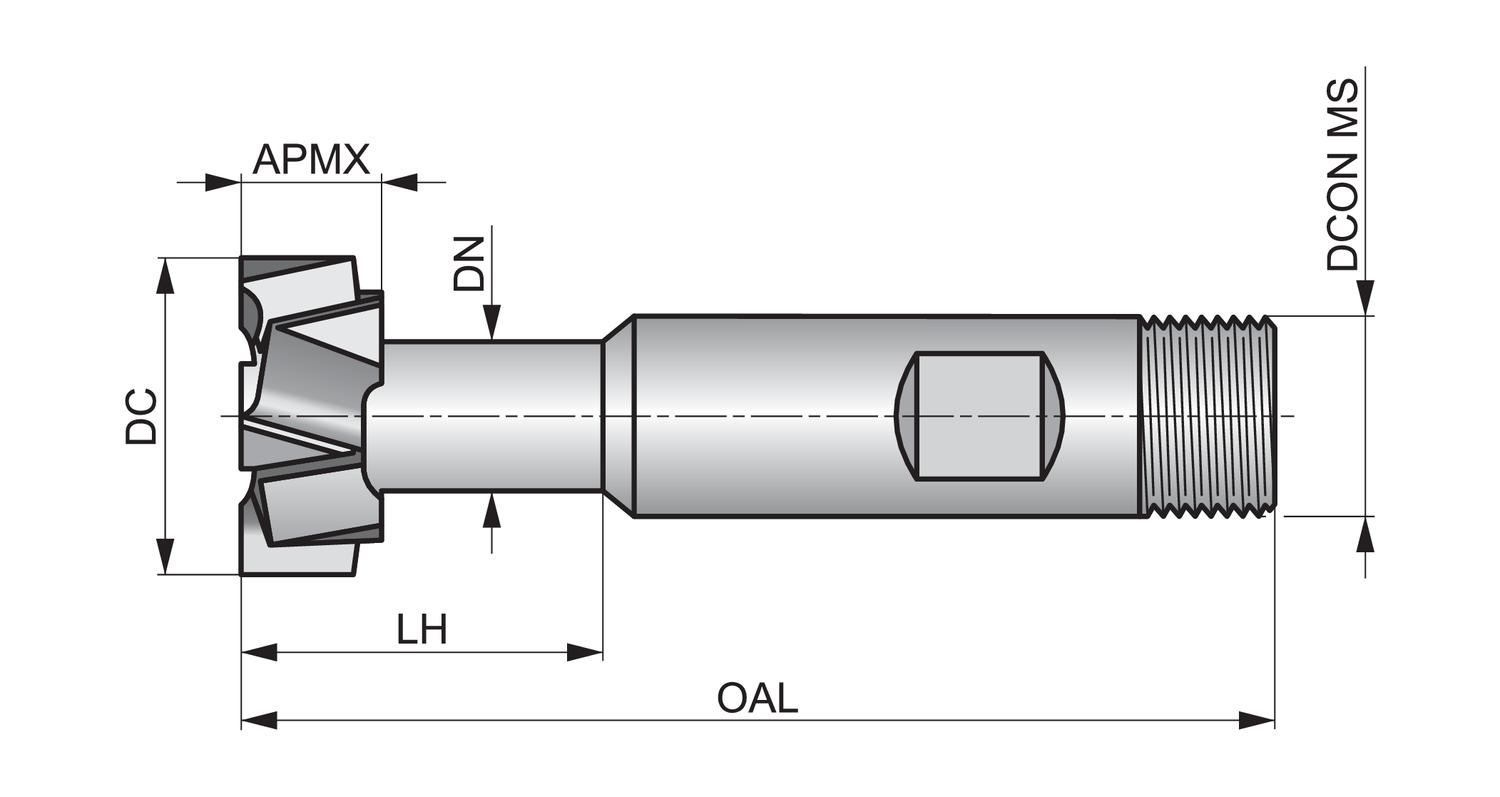

Depth of cut maximum – millimeter (APMX): 6 mm
Cutting diameter – millimeter (DC): 12.5 mm
DIN650 Size code: 6
Neck diameter – millimeter (DN): 5 mm
Head length – millimeter (LH): 15 mm
Overall length – millimeter (OAL): 57 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 6
Radial rake angle (GAMF): 10
ISO: C80012.5X6.0

Brand

DORMER
