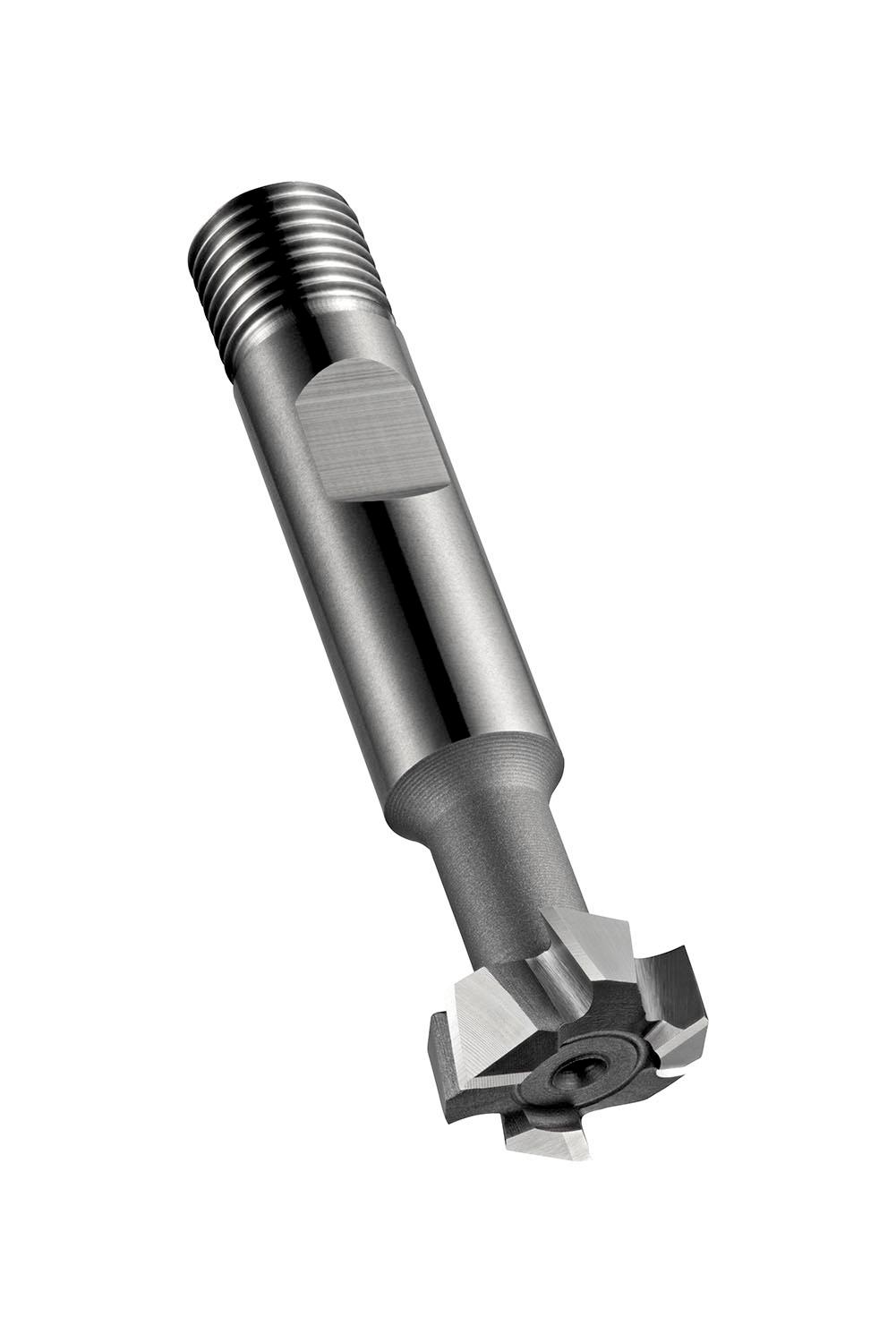

DORMER C80018.0X10.0 HSCO Cutters

Product Code: C80018.0X10.0

$352.36$320.33 Ex. GST

Product Code: C80018.0X10.0 SKU C80018.0X10.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

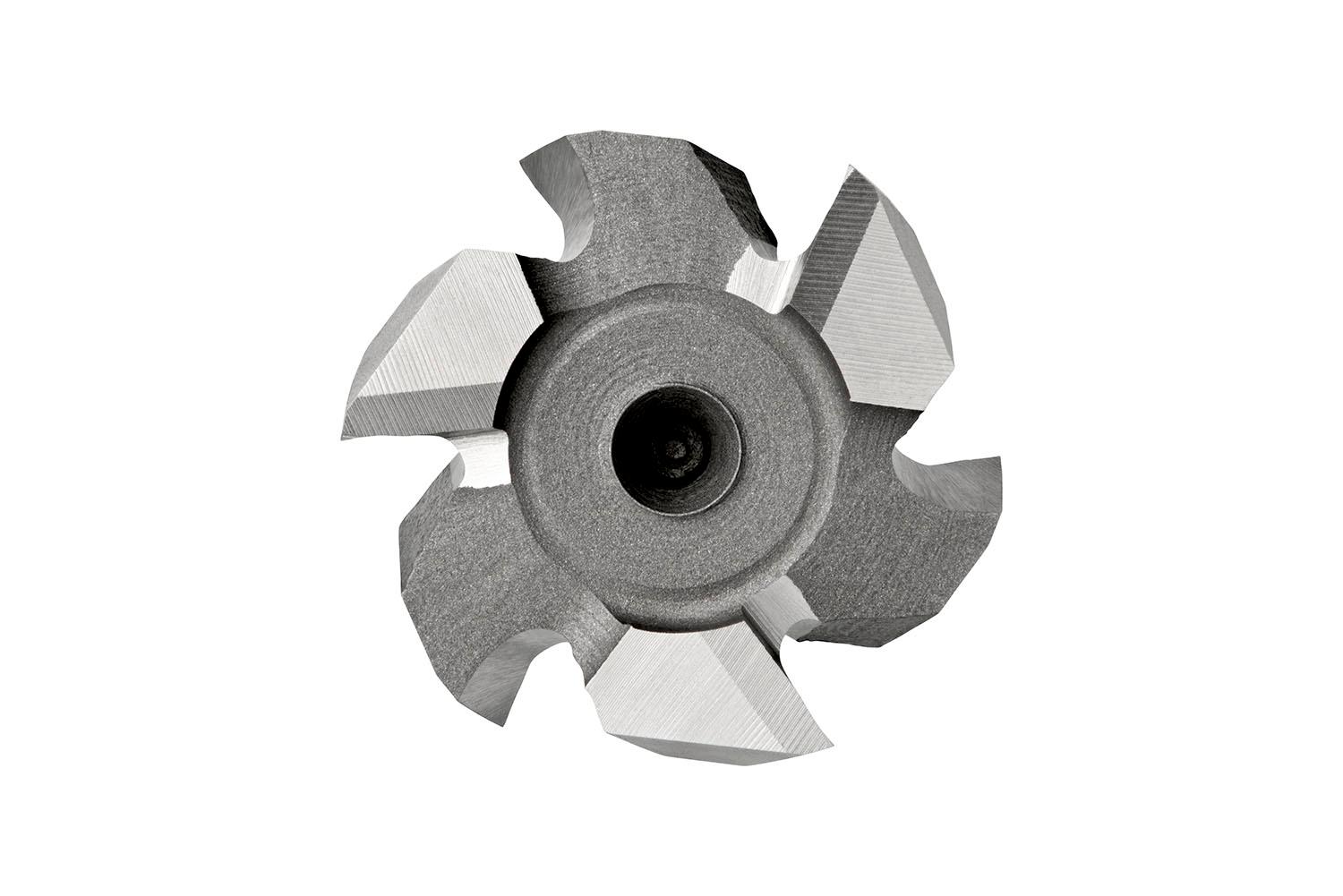

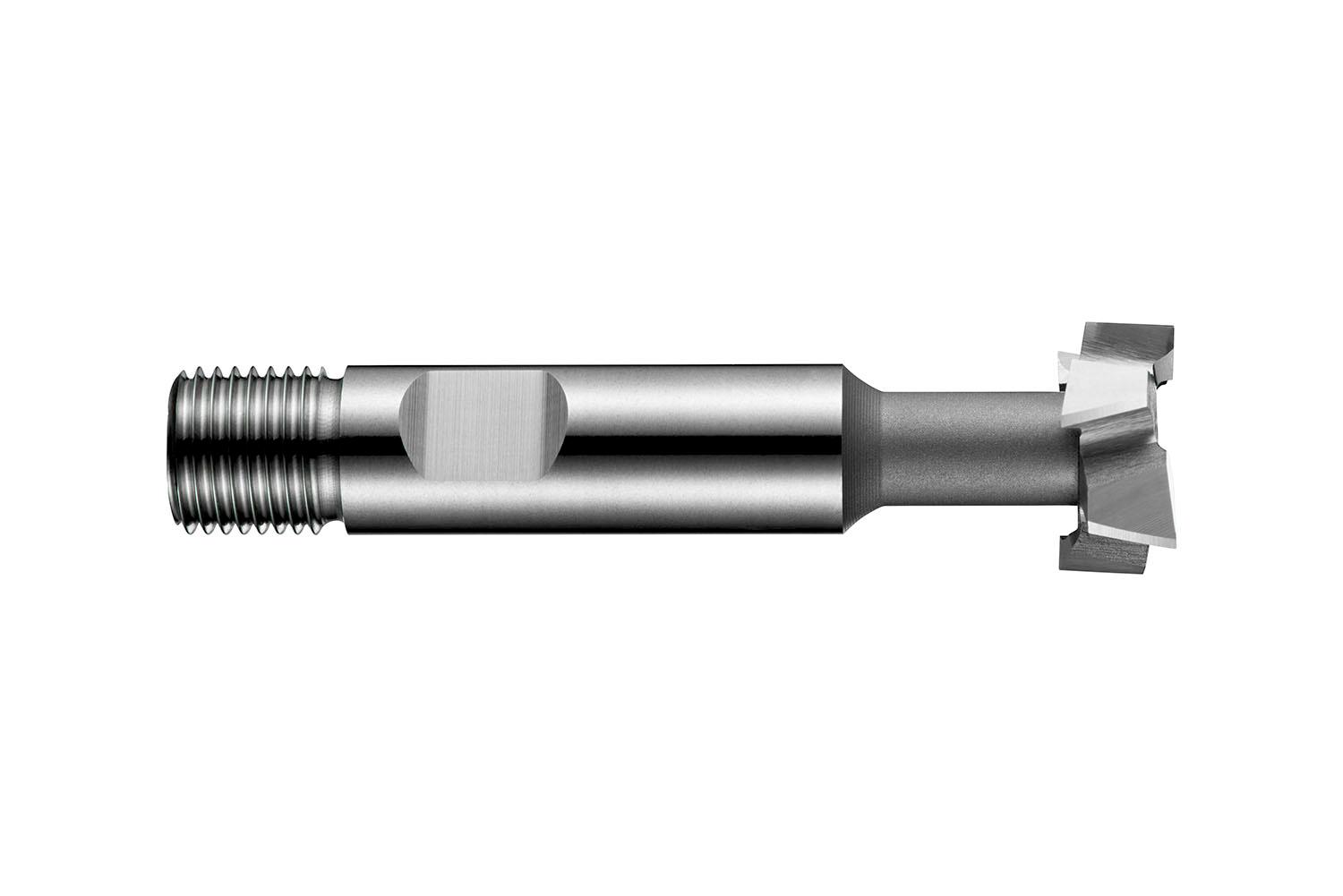

T-slot cutter with 6 teeth, diameter 18mm with 8mm depth of cut and 70mm overall length, according to DIN 851 standard with a 12mm combi shank with weldon flat and thread, cobalt based HSS-E with bright finish, 15° helix and 10° rake angle for T-slot milling in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.3421 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074466
Product number (SAP): 86014209
Ordering code ANSI: C80018.0X10.0
Gross weight – grams: 63

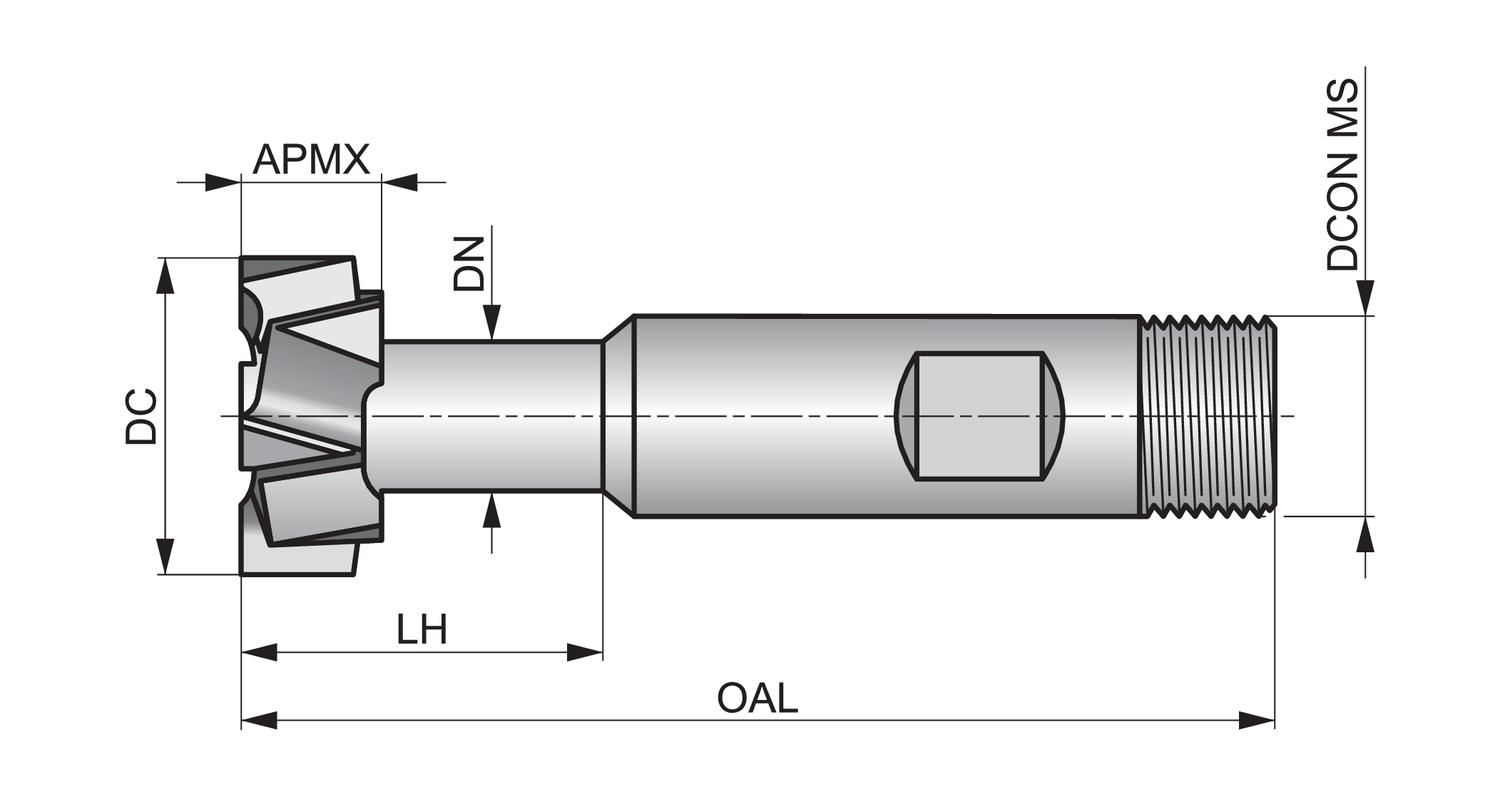

Depth of cut maximum – millimeter (APMX): 8 mm
Cutting diameter – millimeter (DC): 18 mm
DIN650 Size code: 10
Neck diameter – millimeter (DN): 8 mm
Head length – millimeter (LH): 23 mm
Overall length – millimeter (OAL): 70 mm
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 6
Radial rake angle (GAMF): 10
ISO: C80018.0X10.0

Brand

DORMER
