DORMER C80025.0X14.0 HSCO Cutters

Product Code: C80025.0X14.0

$475.86$432.60 Ex. GST

Product Code: C80025.0X14.0 SKU C80025.0X14.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

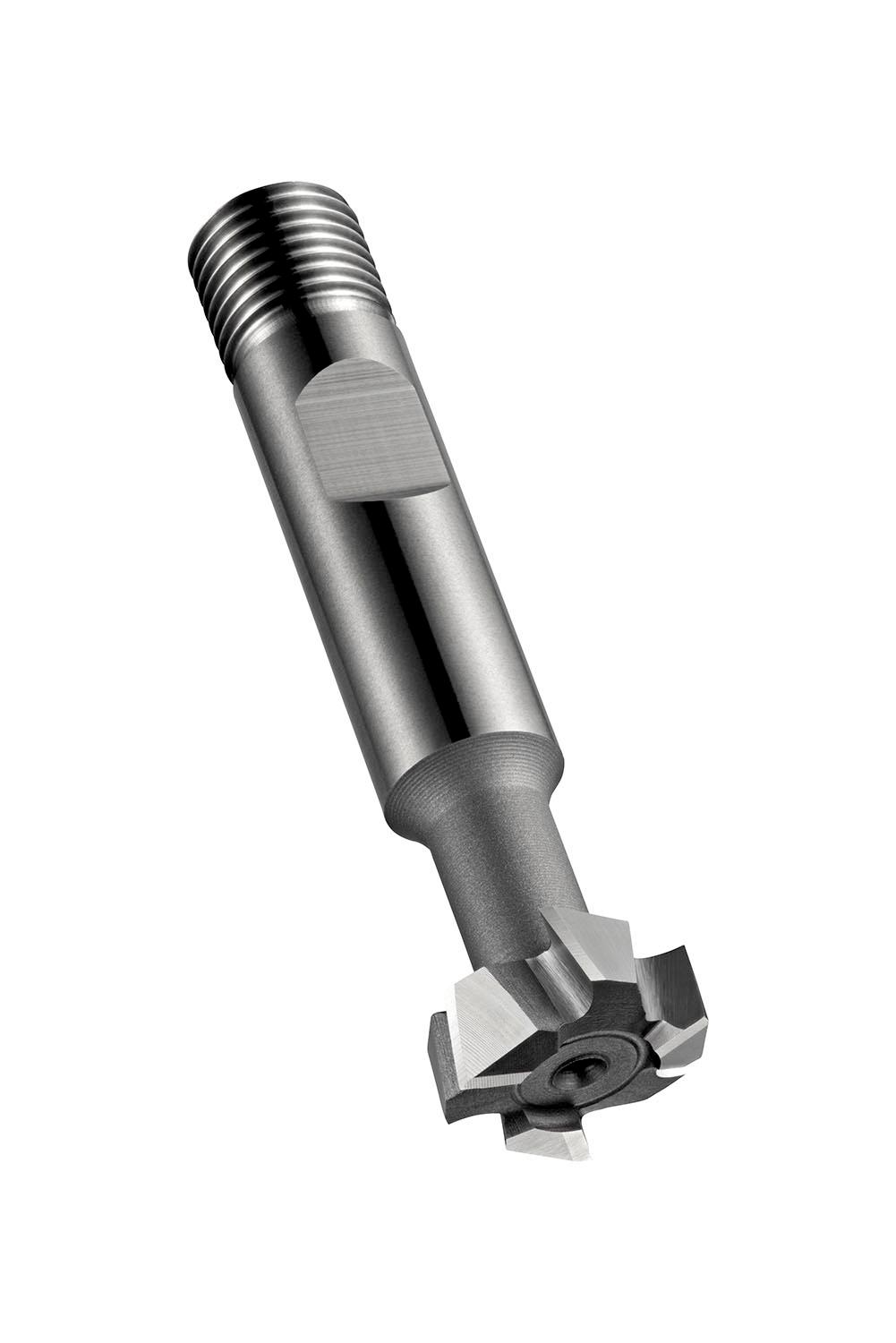

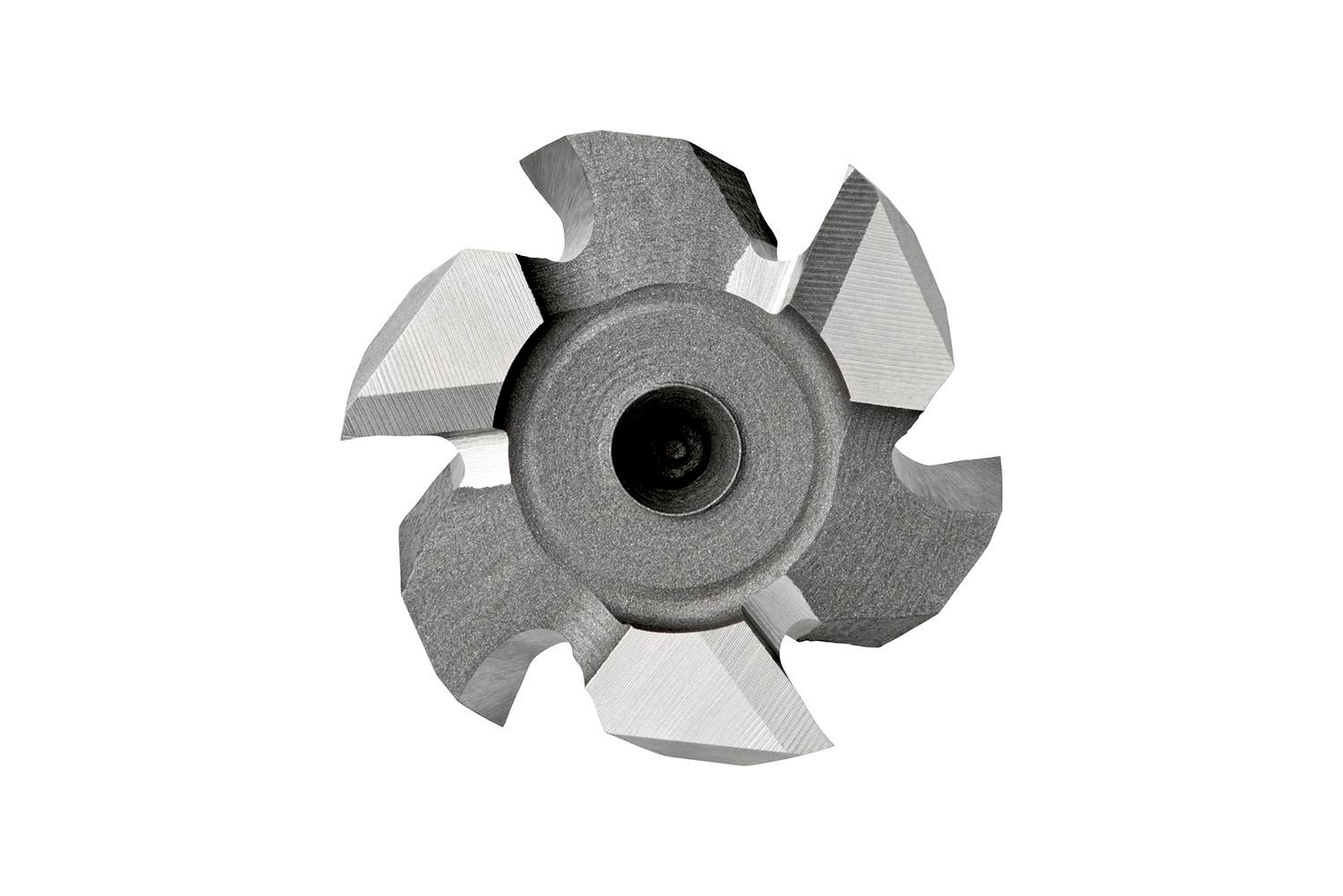

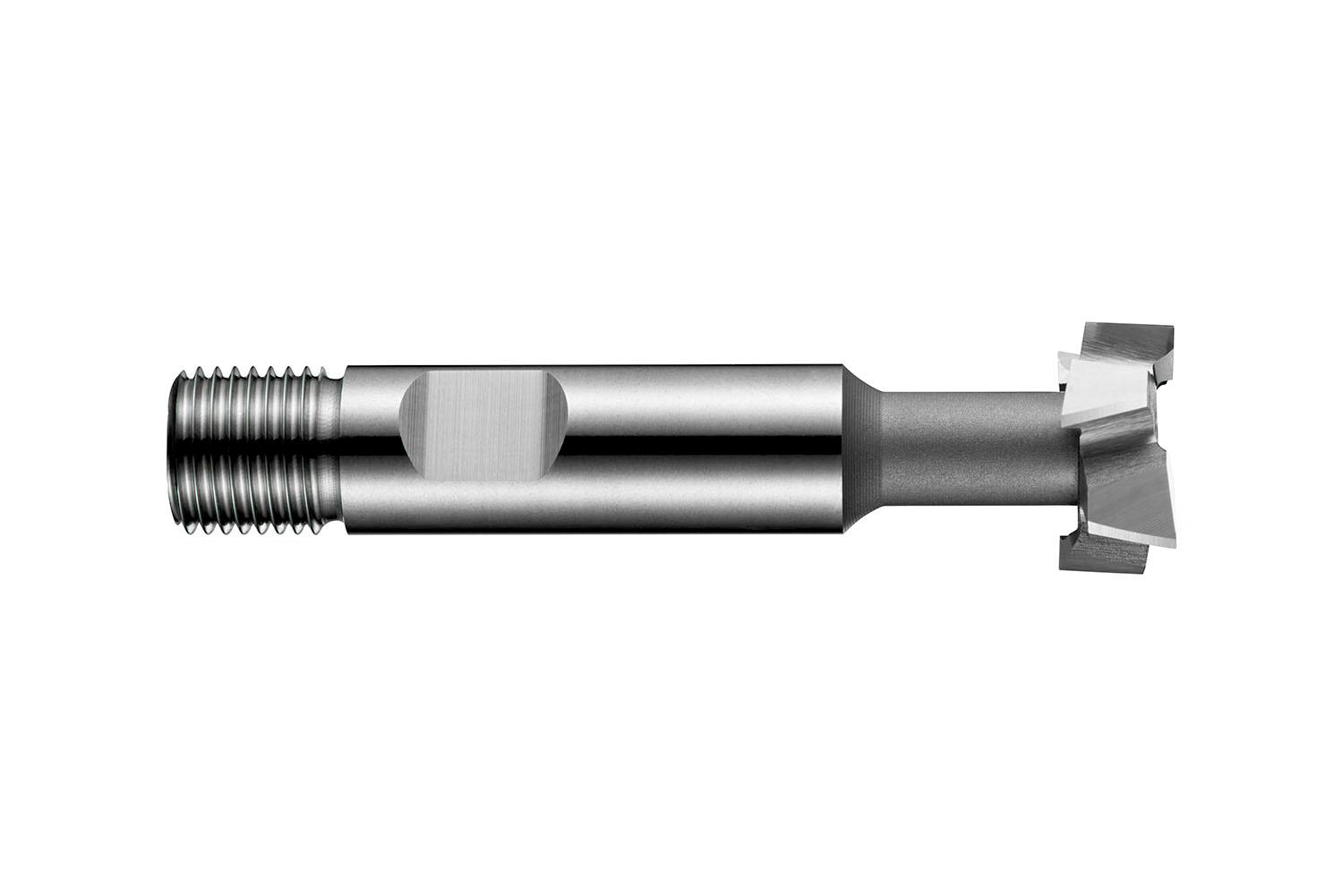

T-slot cutter with 8 teeth, diameter 25mm with 11mm depth of cut and 82mm overall length, according to DIN 851 standard with a 16mm combi shank with weldon flat and thread, cobalt based HSS-E with bright finish, 15° helix and 10° rake angle for T-slot milling in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.4620 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074480
Product number (SAP): 86014211
Ordering code ANSI: C80025.0X14.0
Gross weight – grams: 134.4

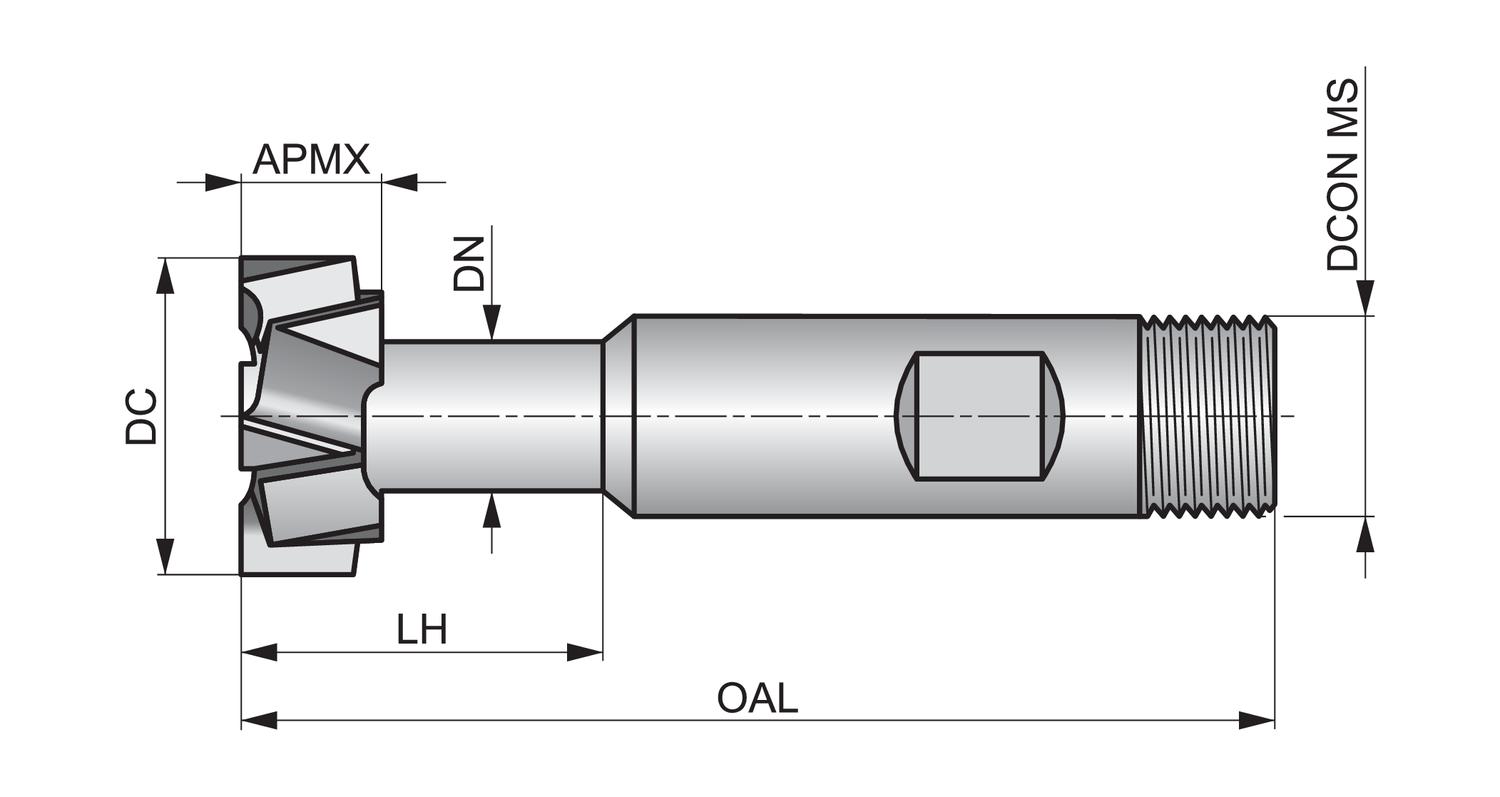

Depth of cut maximum – millimeter (APMX): 11 mm
Cutting diameter – millimeter (DC): 25 mm
DIN650 Size code: 14
Neck diameter – millimeter (DN): 12 mm
Head length – millimeter (LH): 31 mm
Overall length – millimeter (OAL): 82 mm
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 8
Radial rake angle (GAMF): 10
ISO: C80025.0X14.0

Brand

DORMER
