DORMER C82219.5X5.0 HSCO Cutters

Product Code: C82219.5X5.0

$283.25$257.50 Ex. GST

Product Code: C82219.5X5.0 SKU C82219.5X5.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

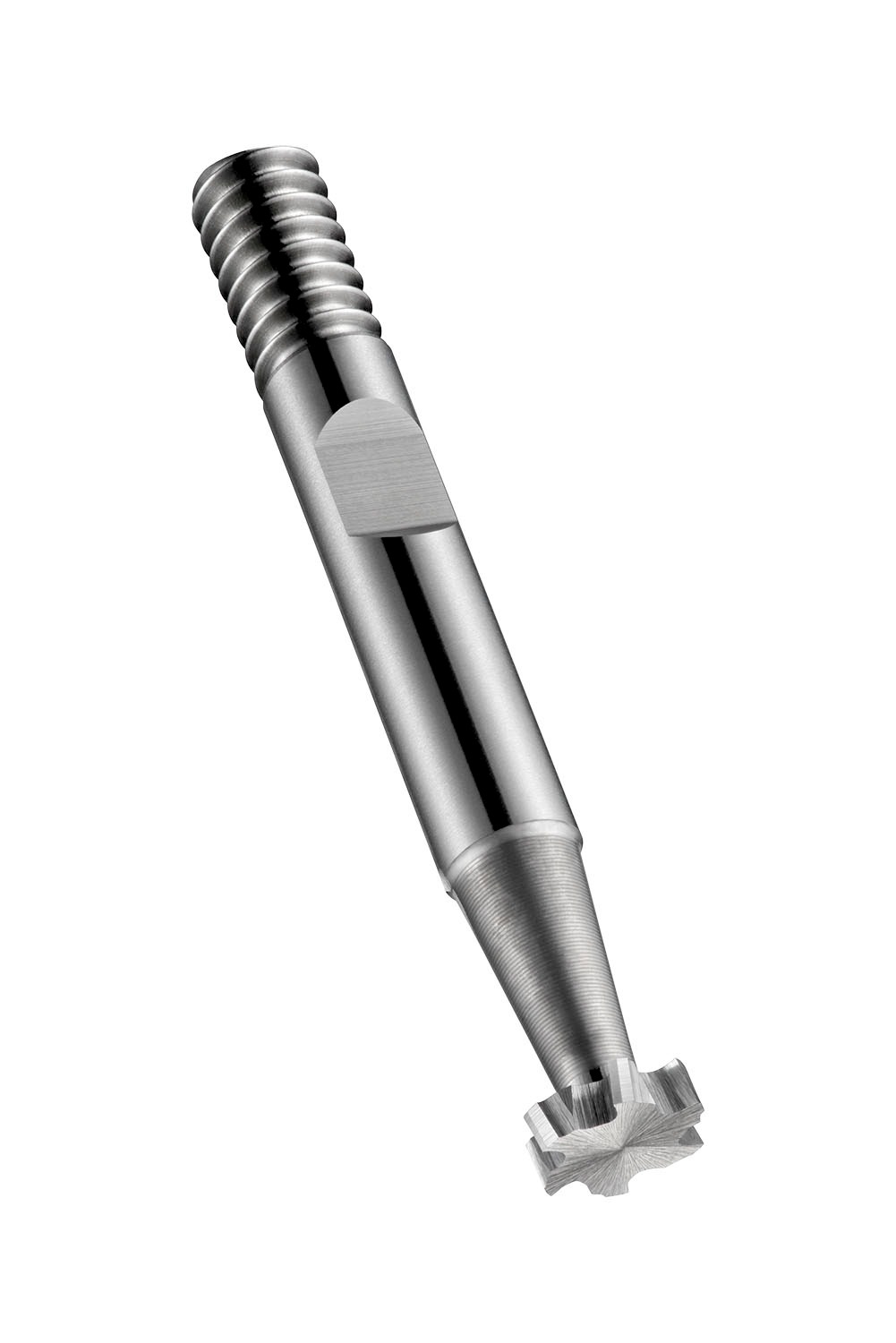

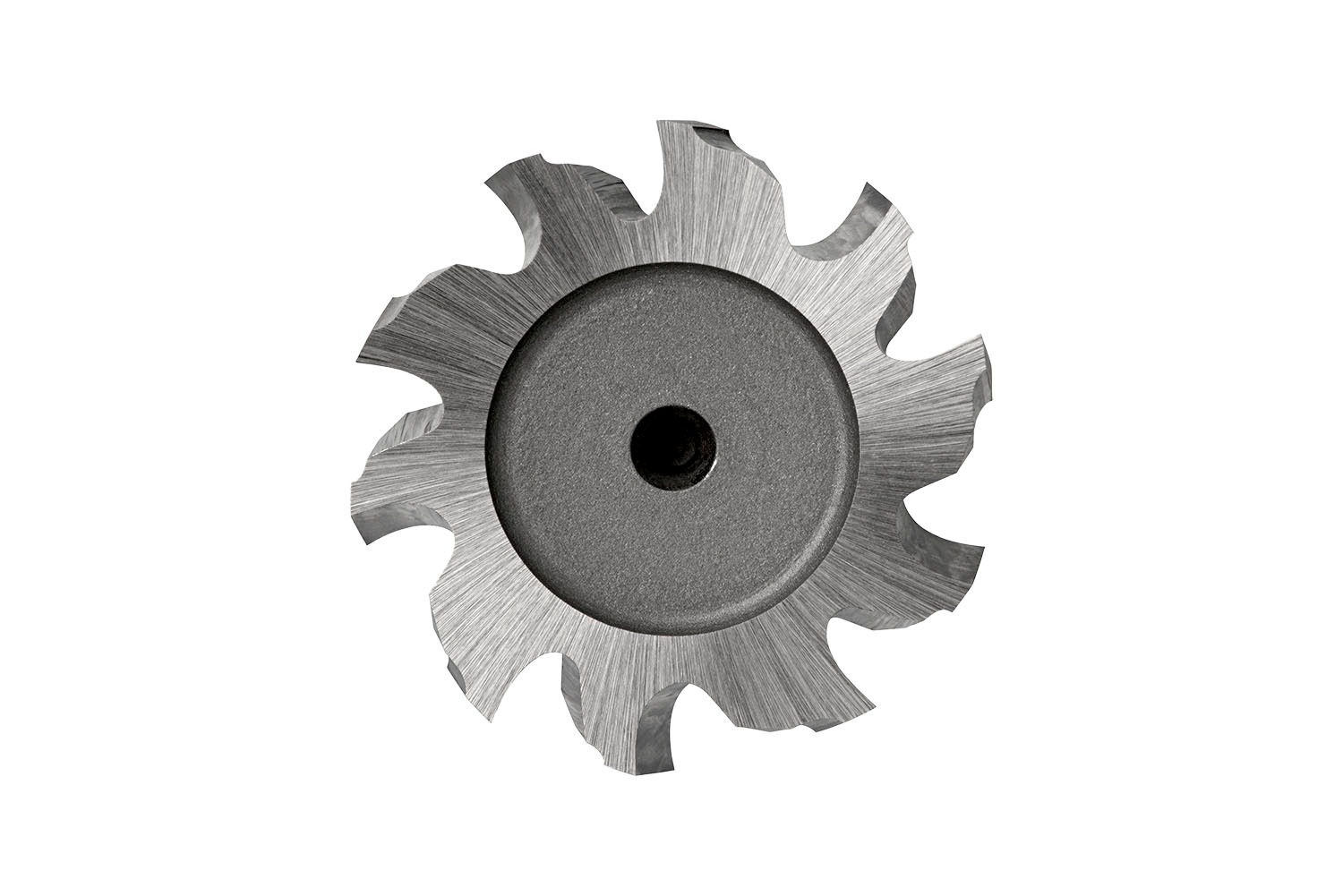

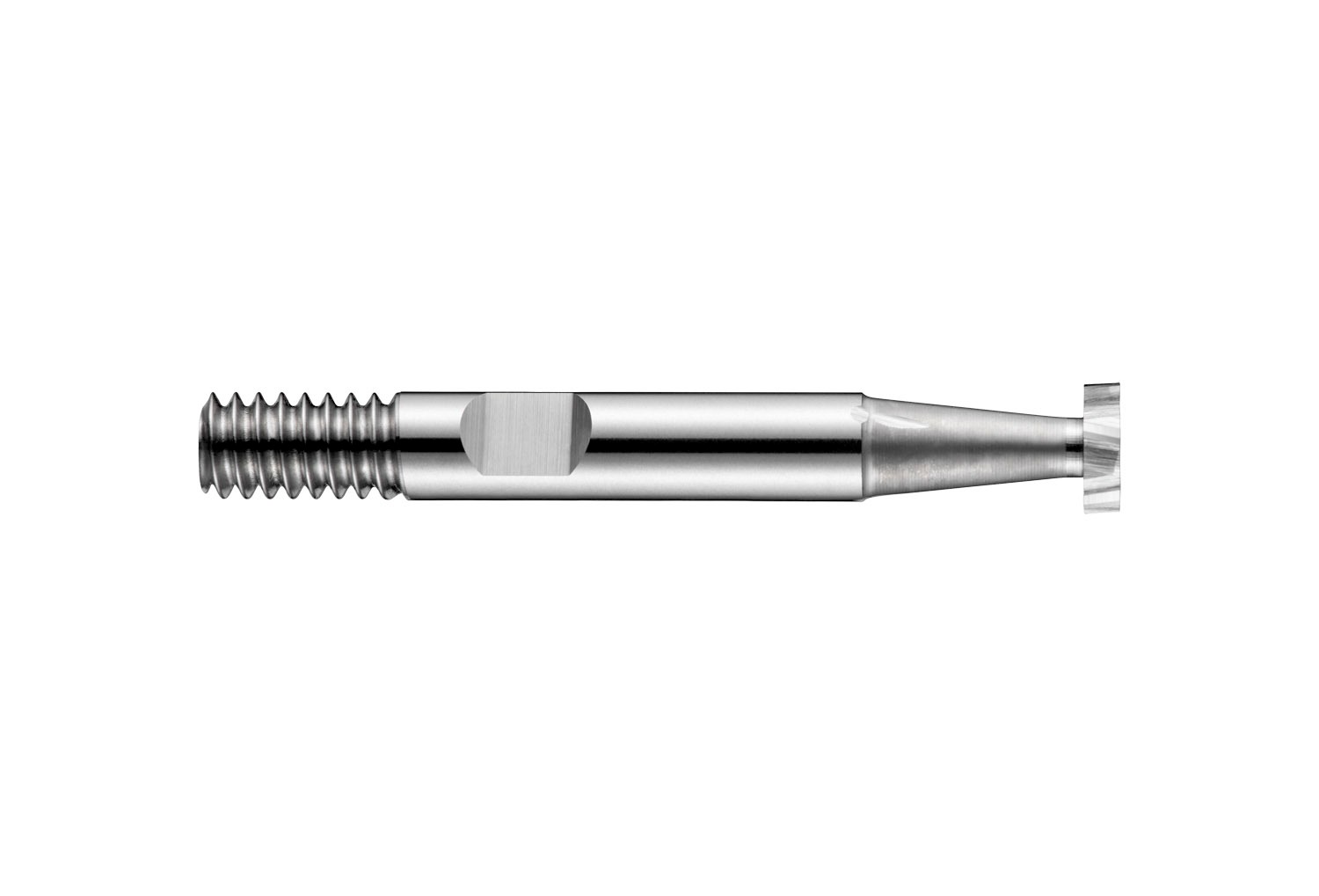

Woodruff cutter with 10 teeth, diameter 19.5mm with 5mm width of cut and 63mm overall length, according to DIN 850 standard with a 10mm combi shank with weldon flat and thread, cobalt based HSS-E with bright finish, 10° helix and 10° rake angle for keyway milling in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.2750 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074725
Product number (SAP): 86014318
Ordering code ANSI: C82219.5X5.0
Gross weight – grams: 48

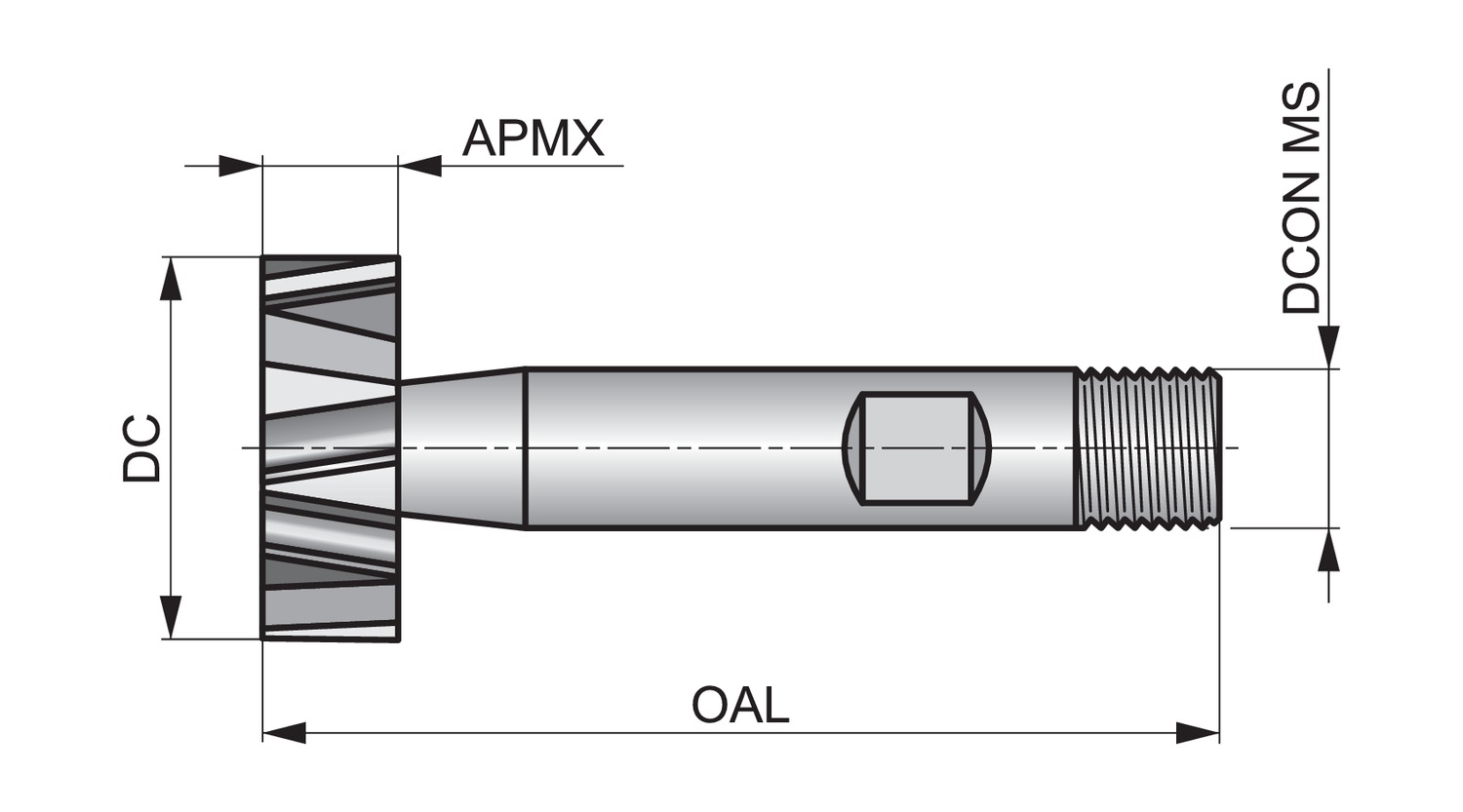

Depth of cut maximum – millimeter (APMX): 5 mm
Cutting diameter – millimeter (DC): 19.5 mm
Overall length – millimeter (OAL): 63 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 10
Radial rake angle (GAMF): 10
ISO: C82219.5X5.0

Brand

DORMER
