DORMER C82225.5X6.0 HSCO Cutters

Product Code: C82225.5X6.0

$367.09$333.72 Ex. GST

Product Code: C82225.5X6.0 SKU C82225.5X6.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

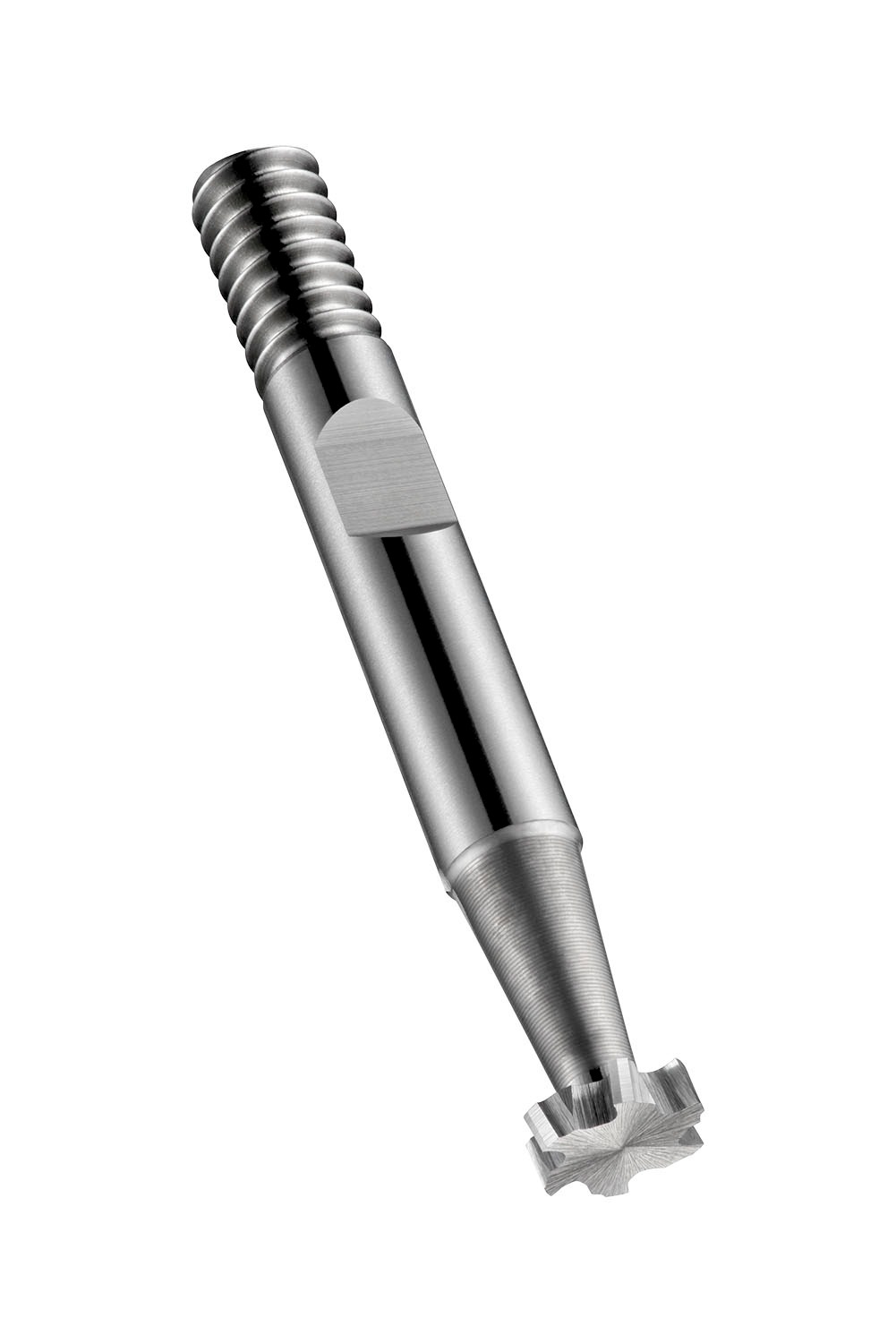

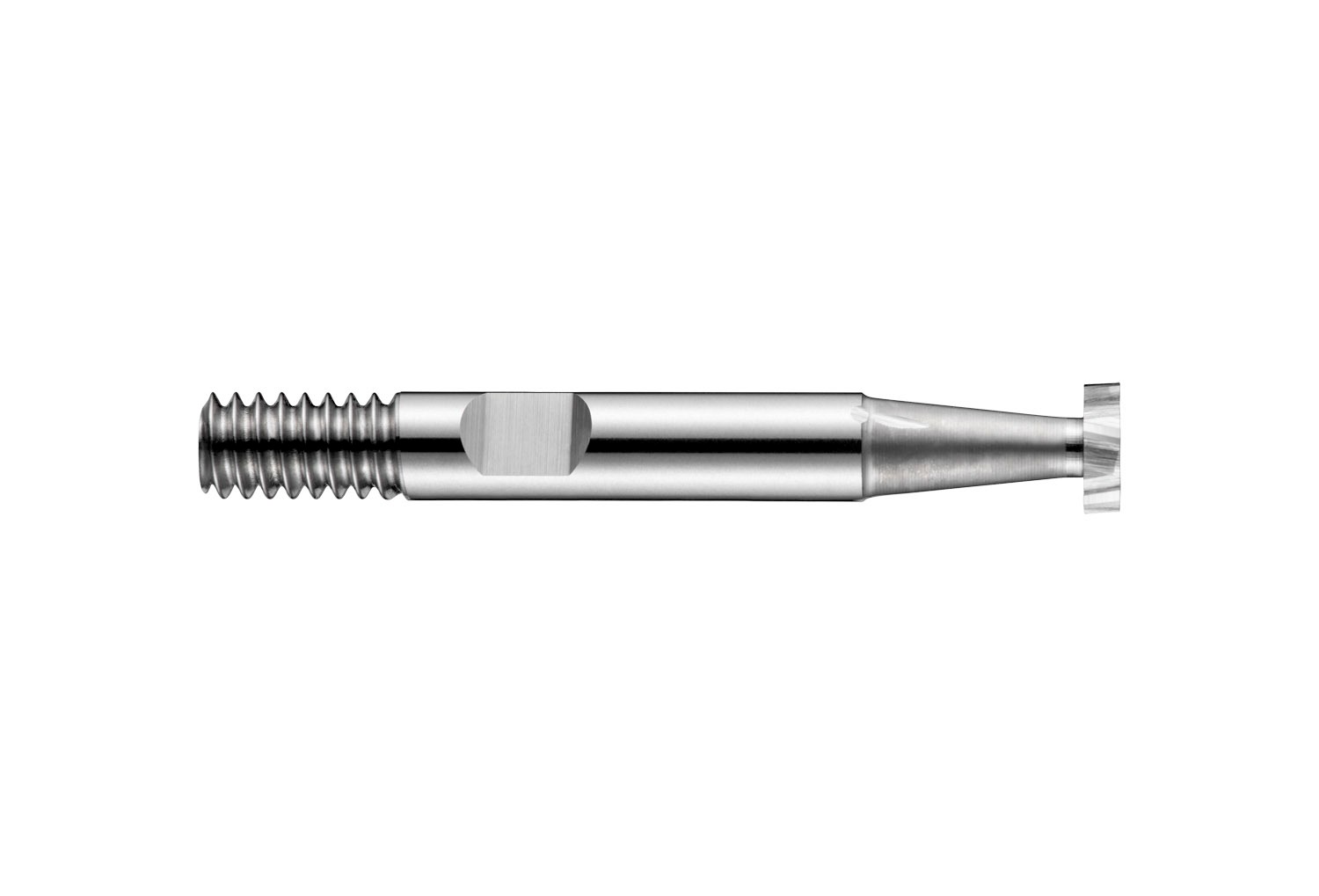

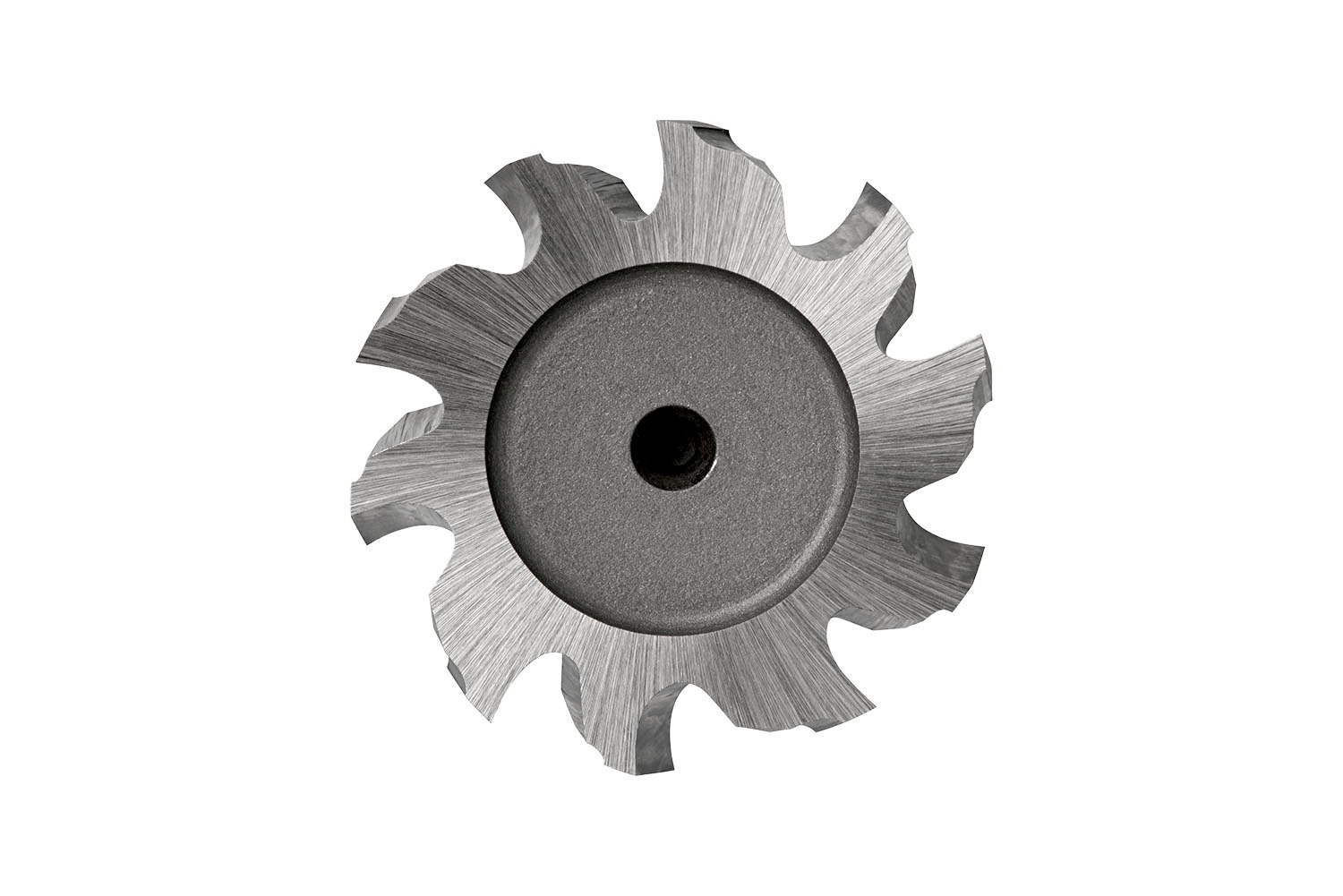

Woodruff cutter with 12 teeth, diameter 25.5mm with 6mm width of cut and 63mm overall length, according to DIN 850 standard with a 10mm combi shank with weldon flat and thread, cobalt based HSS-E with bright finish, 10° helix and 10° rake angle for keyway milling in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.3564 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760275115
Product number (SAP): 86014322
Ordering code ANSI: C82225.5X6.0
Gross weight – grams: 60

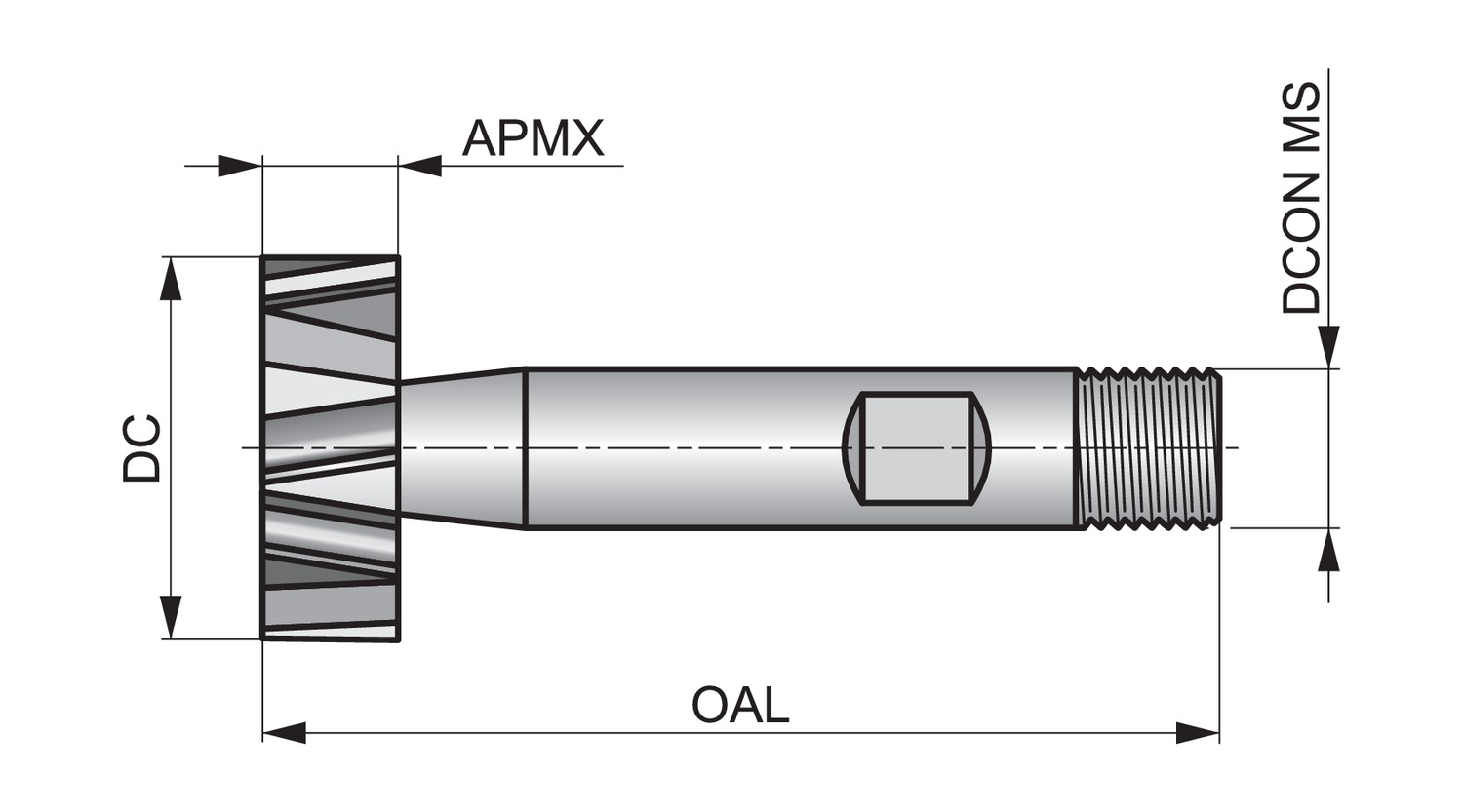

Depth of cut maximum – millimeter (APMX): 6 mm
Cutting diameter – millimeter (DC): 25.5 mm
Overall length – millimeter (OAL): 63 mm
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 12
Radial rake angle (GAMF): 10
ISO: C82225.5X6.0

Brand

DORMER
