DORMER C8224.5X1.0 HSCO Cutters

Product Code: C8224.5X1.0

$253.79$230.72 Ex. GST

Product Code: C8224.5X1.0 SKU C8224.5X1.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

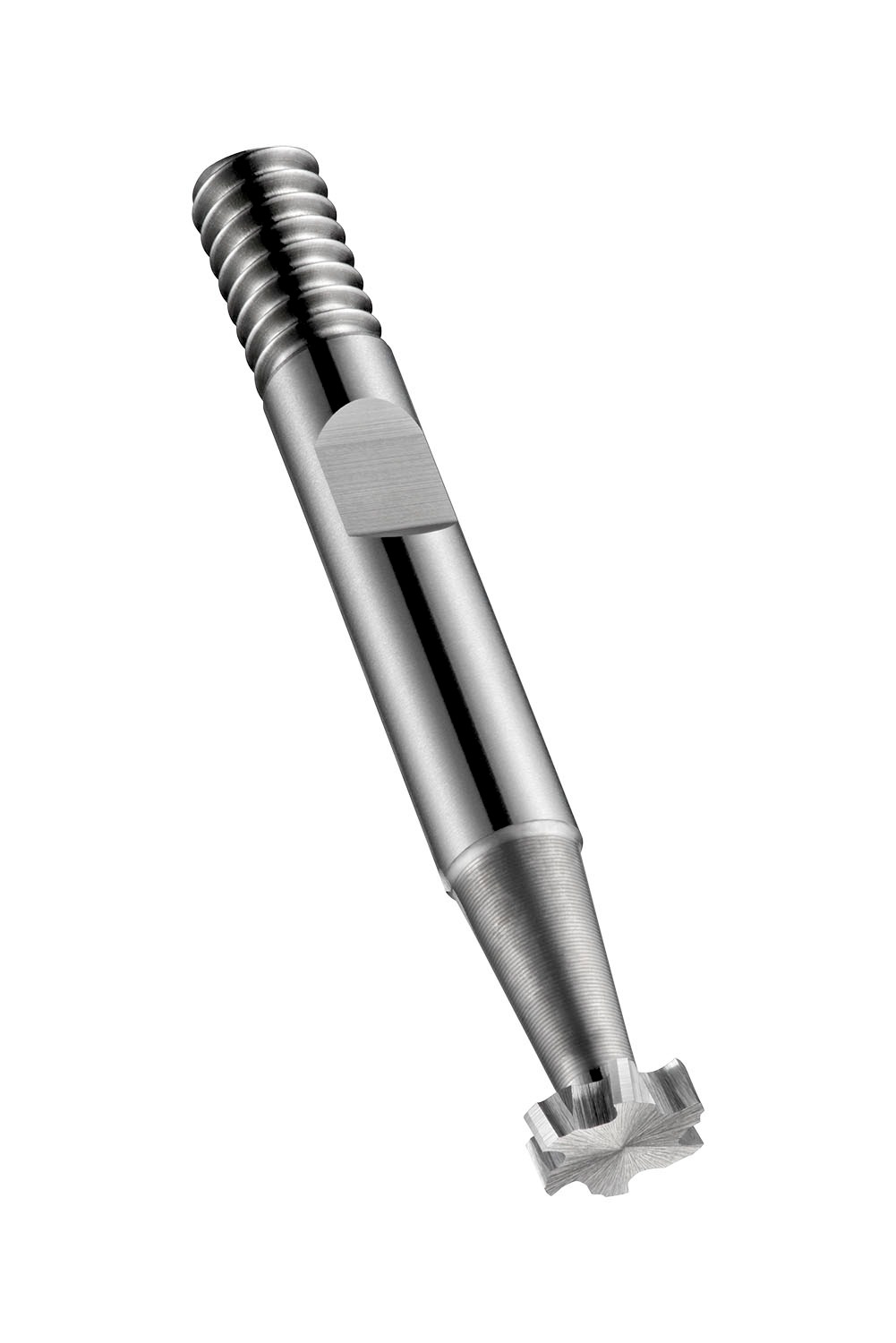

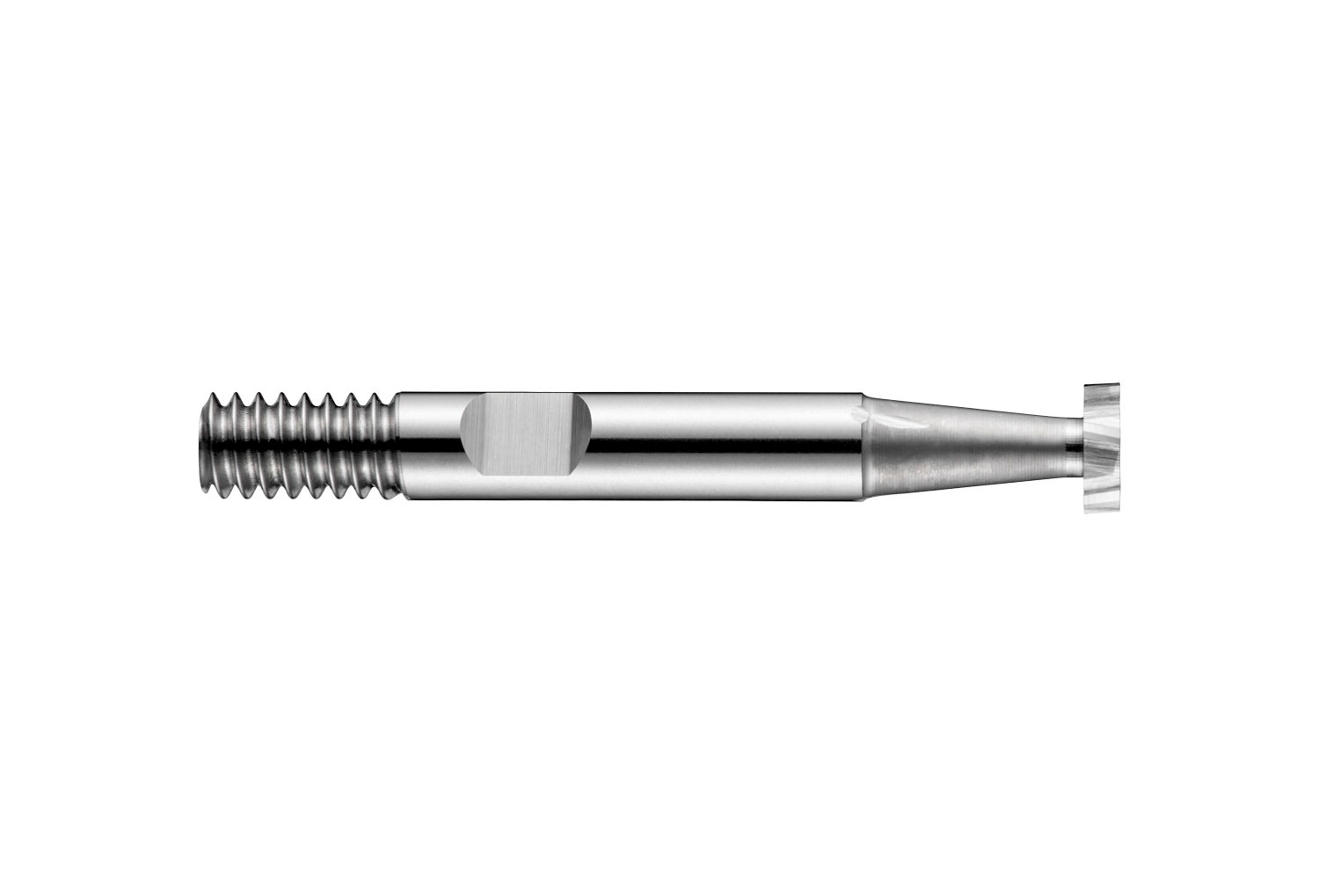

Woodruff cutter with 6 teeth, diameter 4.5mm with 1mm width of cut and 50mm overall length, according to DIN 850 standard with a 6mm combi shank with weldon flat and thread, cobalt based HSS-E with bright finish, 10° helix and 10° rake angle for keyway milling in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.2464 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074824
Product number (SAP): 86014328
Ordering code ANSI: C8224.5X1.0
Gross weight – grams: 11

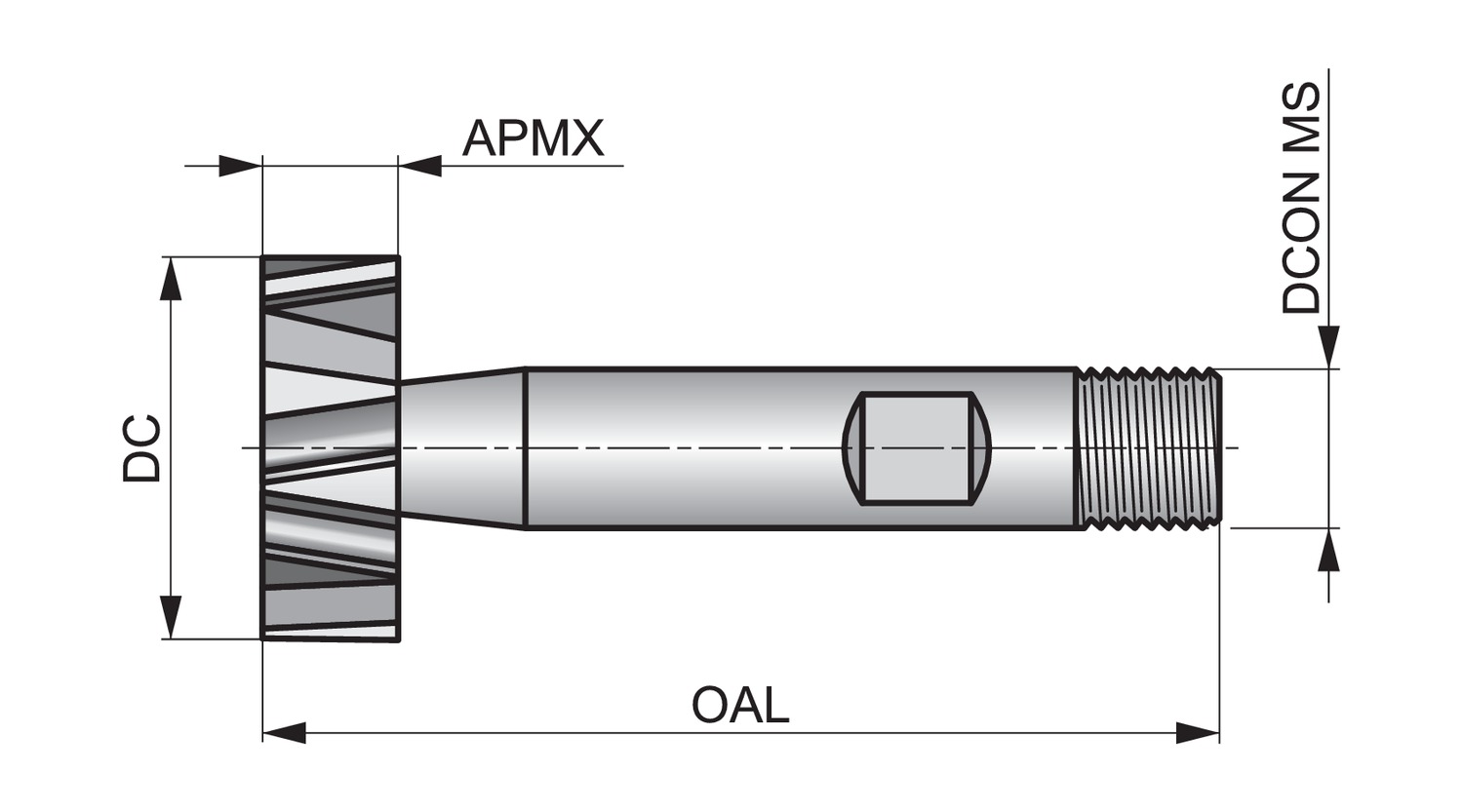

Depth of cut maximum – millimeter (APMX): 1 mm
Cutting diameter – millimeter (DC): 4.5 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 6
Radial rake angle (GAMF): 10
ISO: C8224.5X1.0

Brand

DORMER
