DORMER C8227.5X2.0 HSCO Cutters

Product Code: C8227.5X2.0

$209.61$190.55 Ex. GST

Product Code: C8227.5X2.0 SKU C8227.5X2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

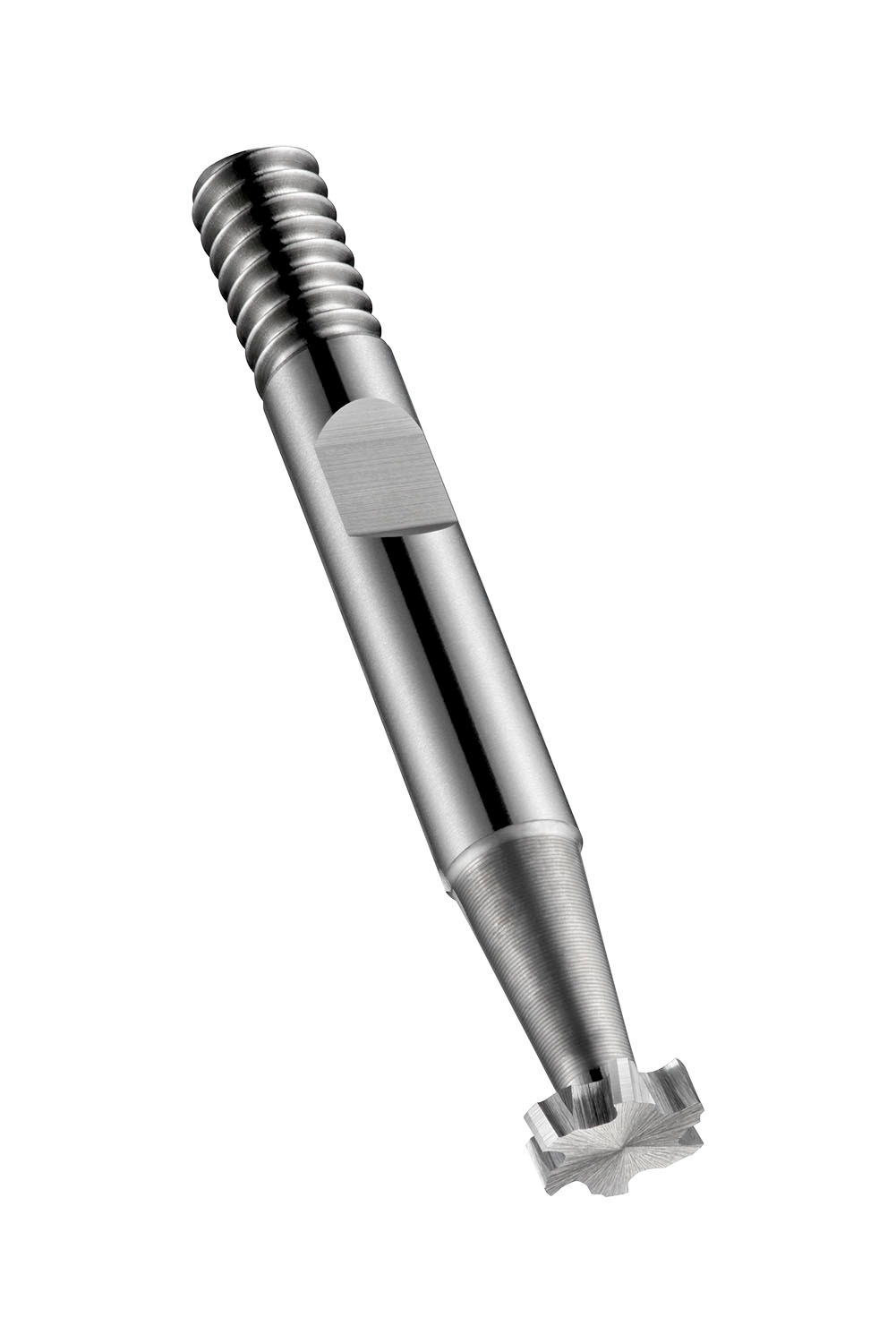

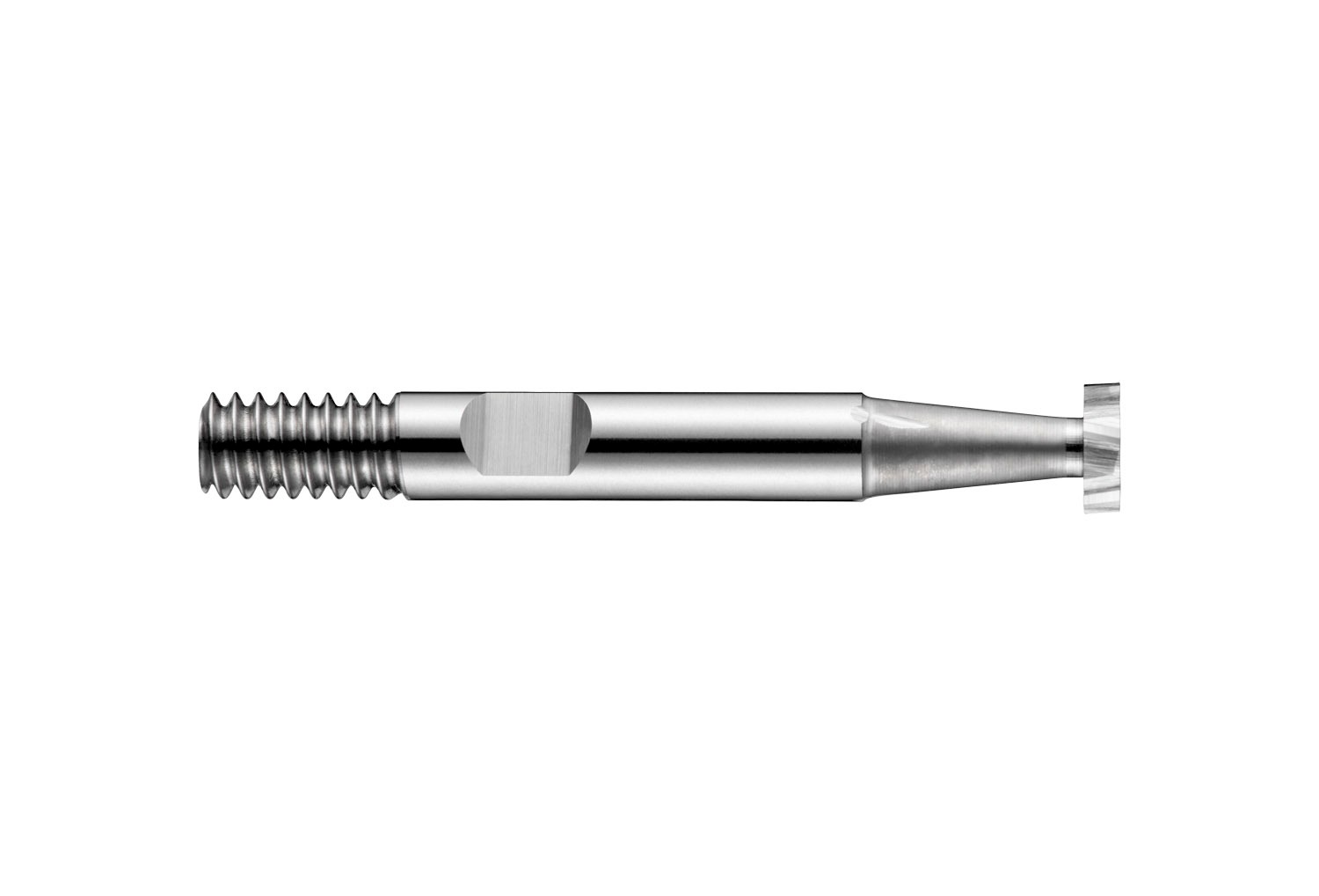

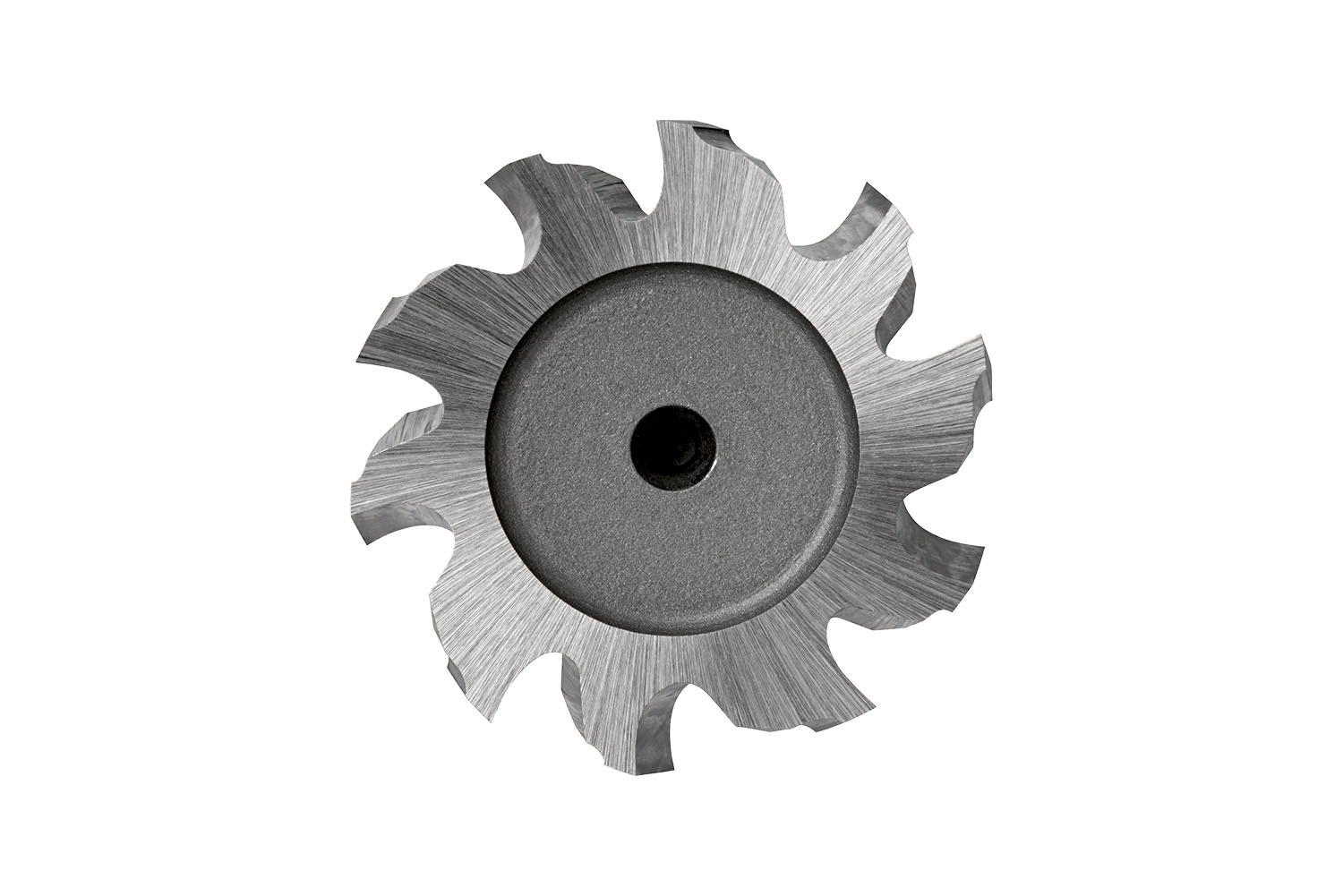

Woodruff cutter with 6 teeth, diameter 7.5mm with 2mm width of cut and 50mm overall length, according to DIN 850 standard with a 6mm combi shank with weldon flat and thread, cobalt based HSS-E with bright finish, 10° helix and 10° rake angle for keyway milling in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.2035 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760074855
Product number (SAP): 86014331
Ordering code ANSI: C8227.5X2.0
Gross weight – grams: 15.7

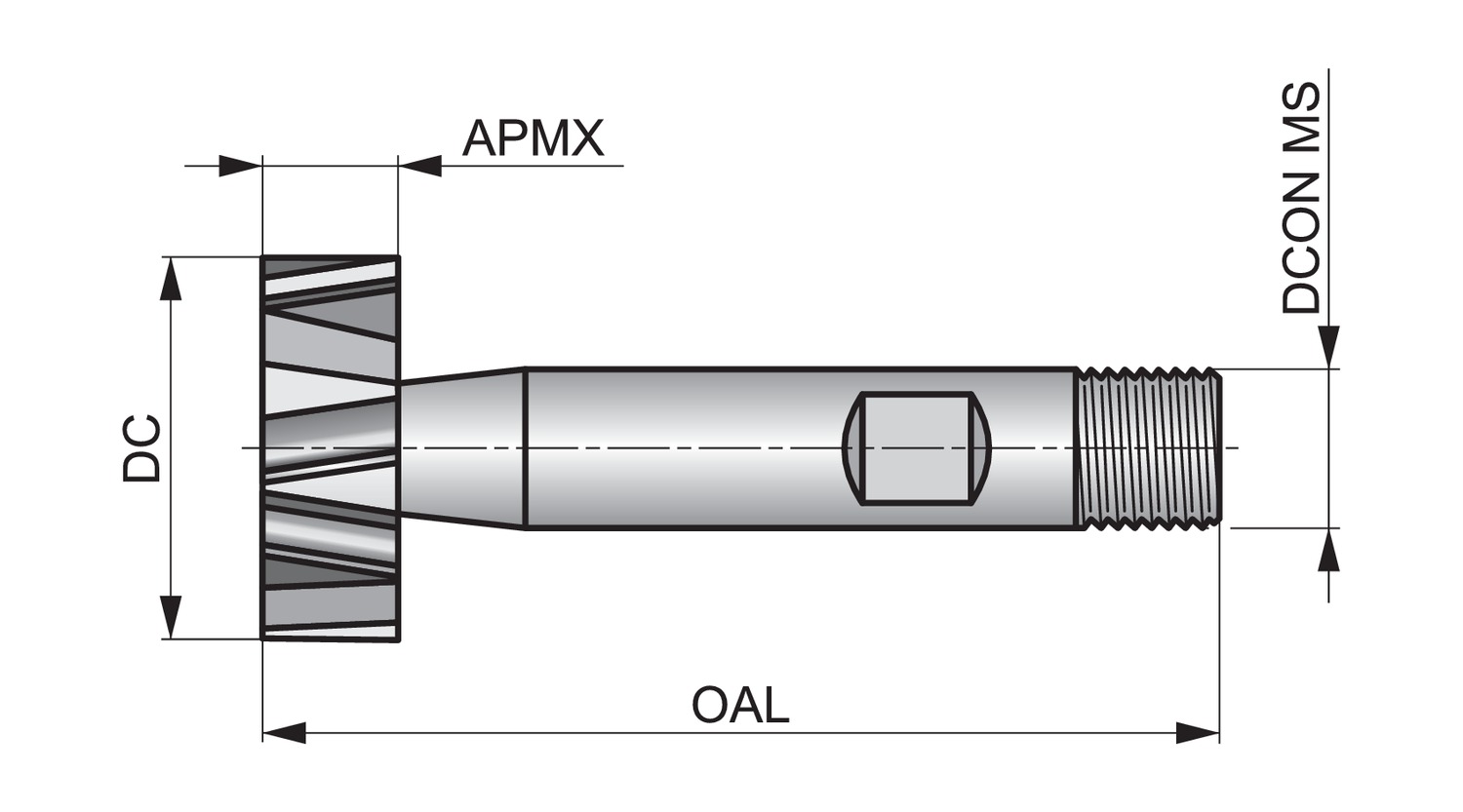

Depth of cut maximum – millimeter (APMX): 2 mm
Cutting diameter – millimeter (DC): 7.5 mm
Overall length – millimeter (OAL): 50 mm
Connection diameter – millimeter (DCON MS): 6 mm
Flute count (NOF): 6
Radial rake angle (GAMF): 10
ISO: C8227.5X2.0

Brand

DORMER
