DORMER C83016.0X45 HSCO Cutters

Product Code: C83016.0X45

$208.47$189.52 Ex. GST

Product Code: C83016.0X45 SKU C83016.0X45 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

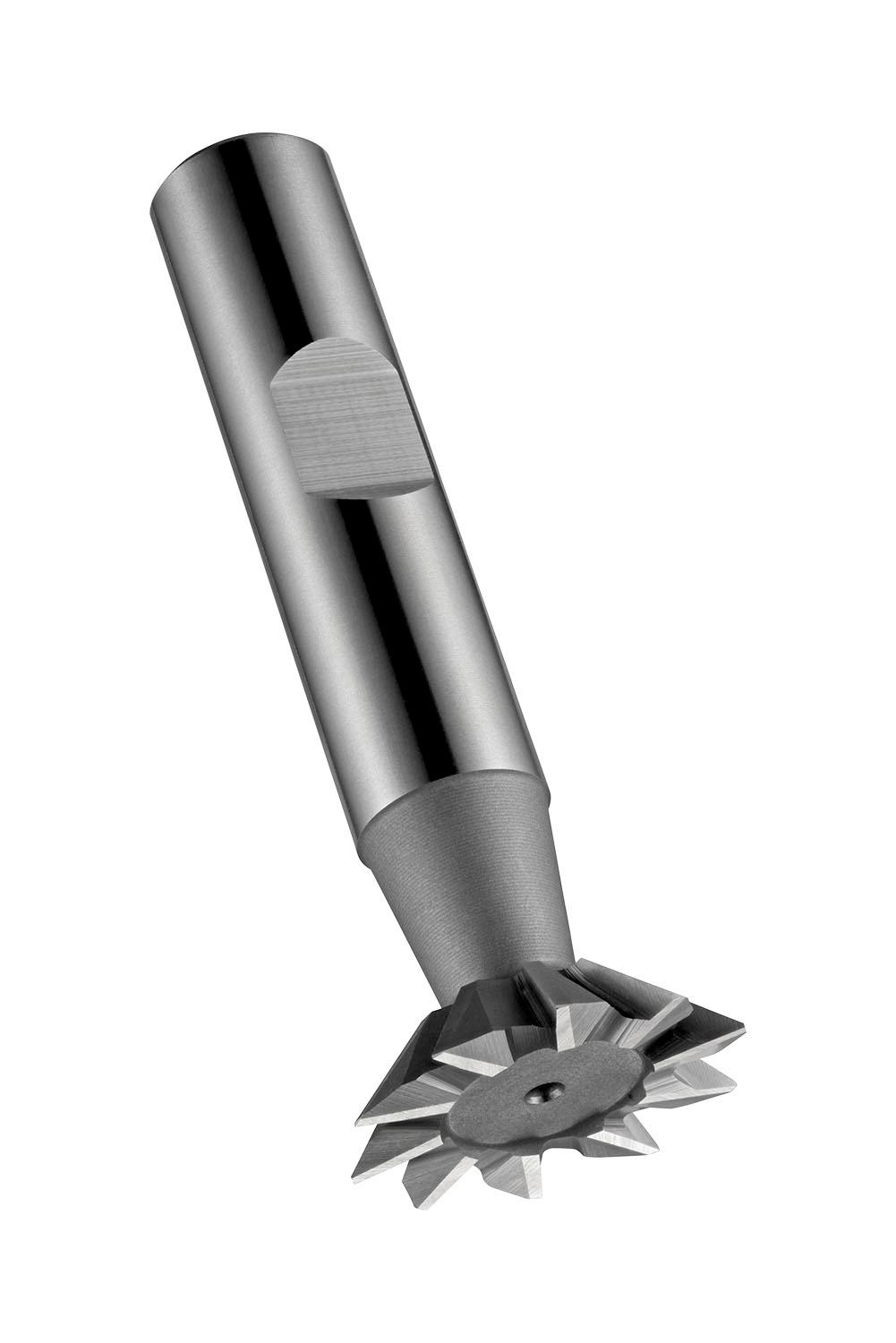

45° Dovetail cutter with 10 teeth, diameter 16mm with 4mm depth of cut and 60mm overall length, according to DIN 1833 C standard with a 12mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for milling dovetail grooves in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.2024 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760075012
Product number (SAP): 86014347
Ordering code ANSI: C83016.0X45
Gross weight – grams: 56
Tool cutting edge angle (KAPR): 45
Depth of cut maximum – millimeter (APMX): 4 mm
Cutting diameter – millimeter (DC): 16 mm
Overall length – millimeter (OAL): 60 mm
Connection diameter – millimeter (DCON MS): 12 mm
Flute count (NOF): 10
Radial rake angle (GAMF): 0
ISO: C83016.0X45

Brand

DORMER
