DORMER C83032.0X45 HSCO Cutters

Product Code: C83032.0X45

$463.40$421.27 Ex. GST

Product Code: C83032.0X45 SKU C83032.0X45 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

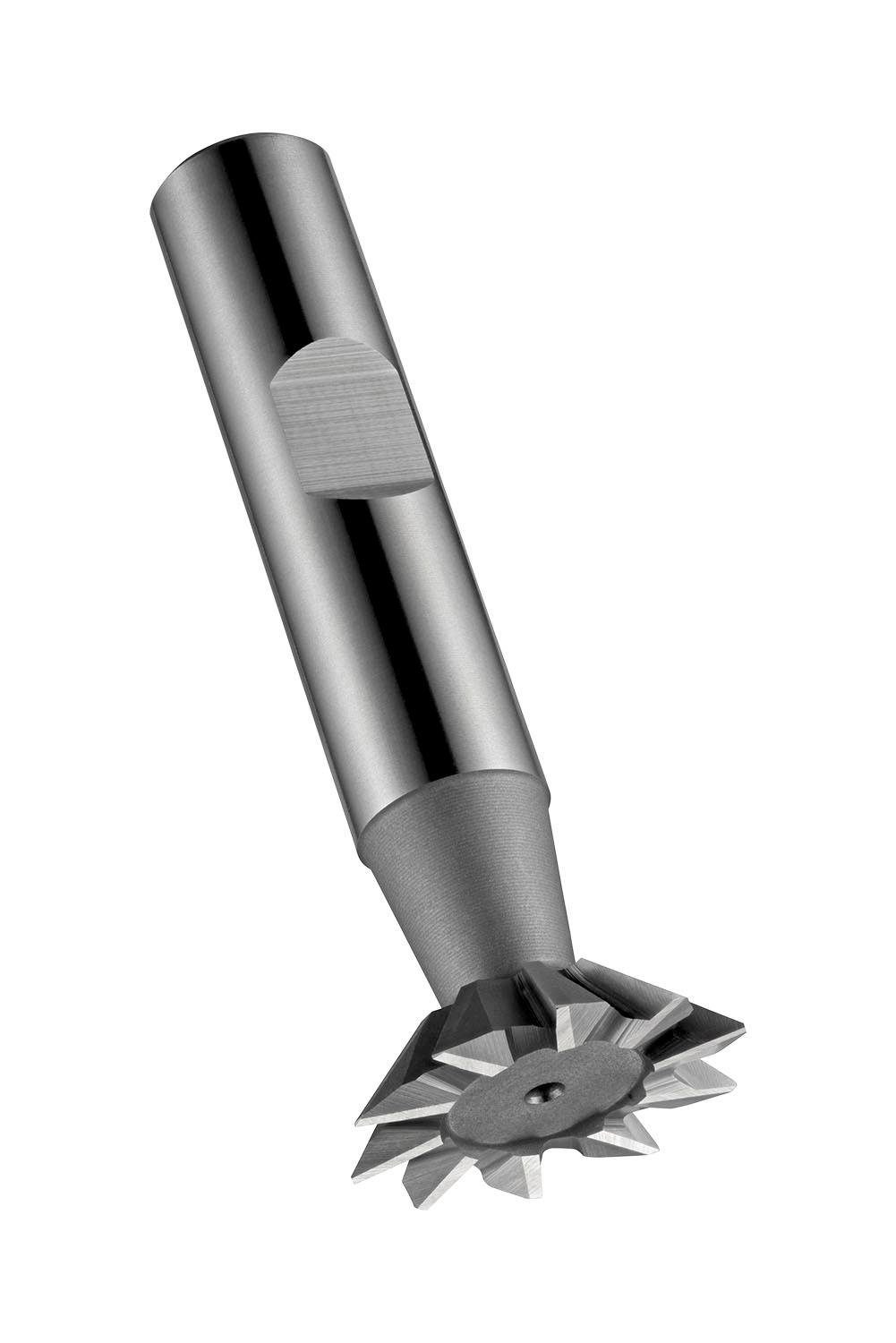

45° Dovetail cutter with 12 teeth, diameter 32mm with 8mm depth of cut and 71mm overall length, according to DIN 1833 C standard with a 16mm Weldon shank, cobalt based HSS-E with bright finish, 0° helix and 0° rake angle for milling dovetail grooves in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.4499 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760075074
Product number (SAP): 86014353
Ordering code ANSI: C83032.0X45
Gross weight – grams: 135
Tool cutting edge angle (KAPR): 45
Depth of cut maximum – millimeter (APMX): 8 mm
Cutting diameter – millimeter (DC): 32 mm
Overall length – millimeter (OAL): 71 mm
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 12
Radial rake angle (GAMF): 0
ISO: C83032.0X45

Brand

DORMER
