DORMER C92025.0 Primax Cutters

Product Code: C92025.0

$564.23$512.94 Ex. GST

Product Code: C92025.0 SKU C92025.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

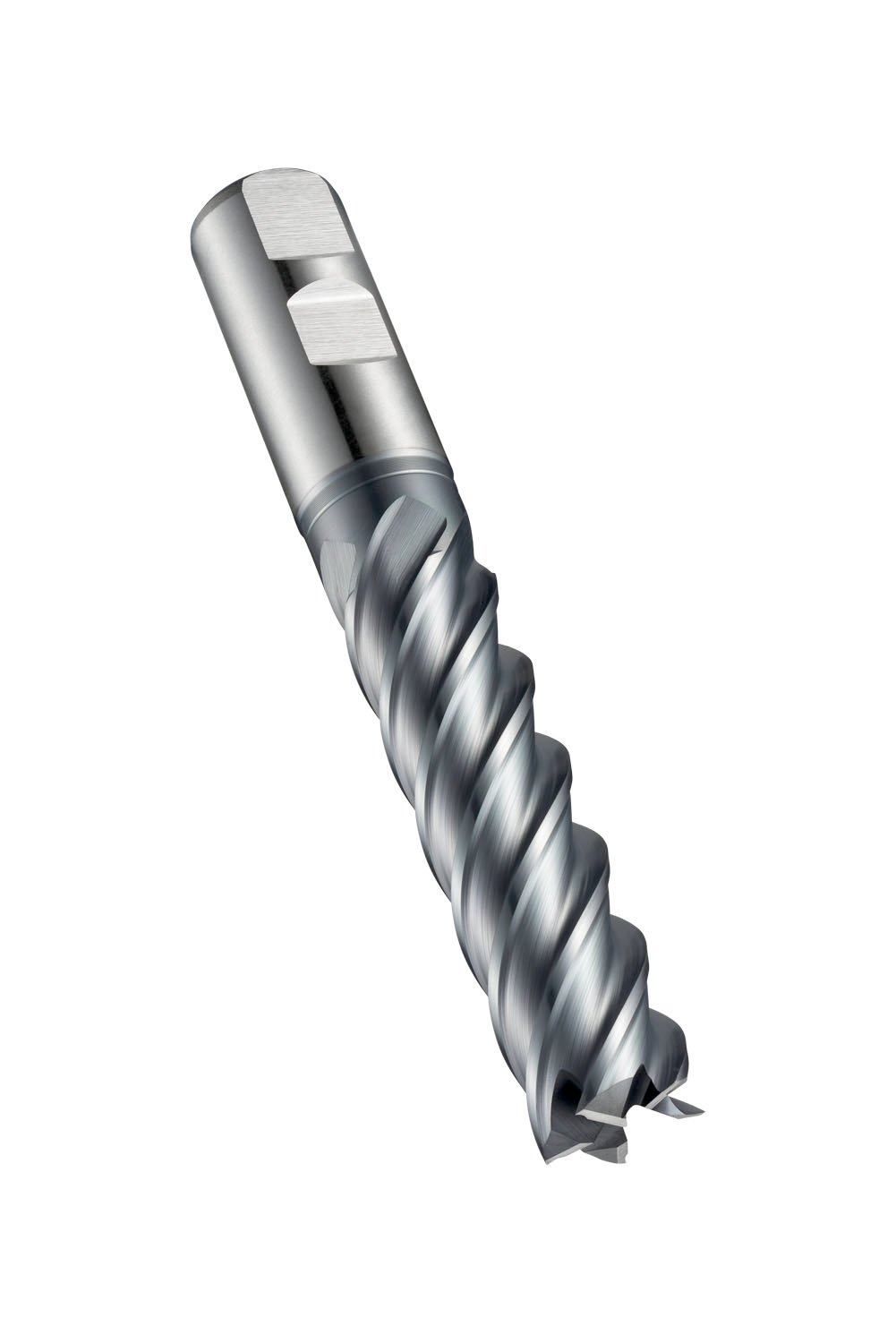

Long series end mill with 5 flutes, diameter 25mm with 90mm length of cut, 166mm overall length and 109.5mm reach with neck relief, according to DIN 844 L standard with a 25mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 45° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 0.5478 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760076200
Product number (SAP): 86014465
Ordering code ANSI: C92025.0
Gross weight – grams: 528
Cutting diameter – millimeter (DC): 25 mm
Connection diameter – millimeter (DCON MS): 25 mm
Depth of cut maximum – millimeter (APMX): 90 mm
Overall length – millimeter (OAL): 166 mm
Flute count (NOF): 5
Usable Length – millimeter (LU): 109.5 mm
Neck diameter – millimeter (DN): 24.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C92025.0

Brand

DORMER
