DORMER C94832.0 Primax Cutters

Product Code: C94832.0

$1,050.29$954.81 Ex. GST

Product Code: C94832.0 SKU C94832.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

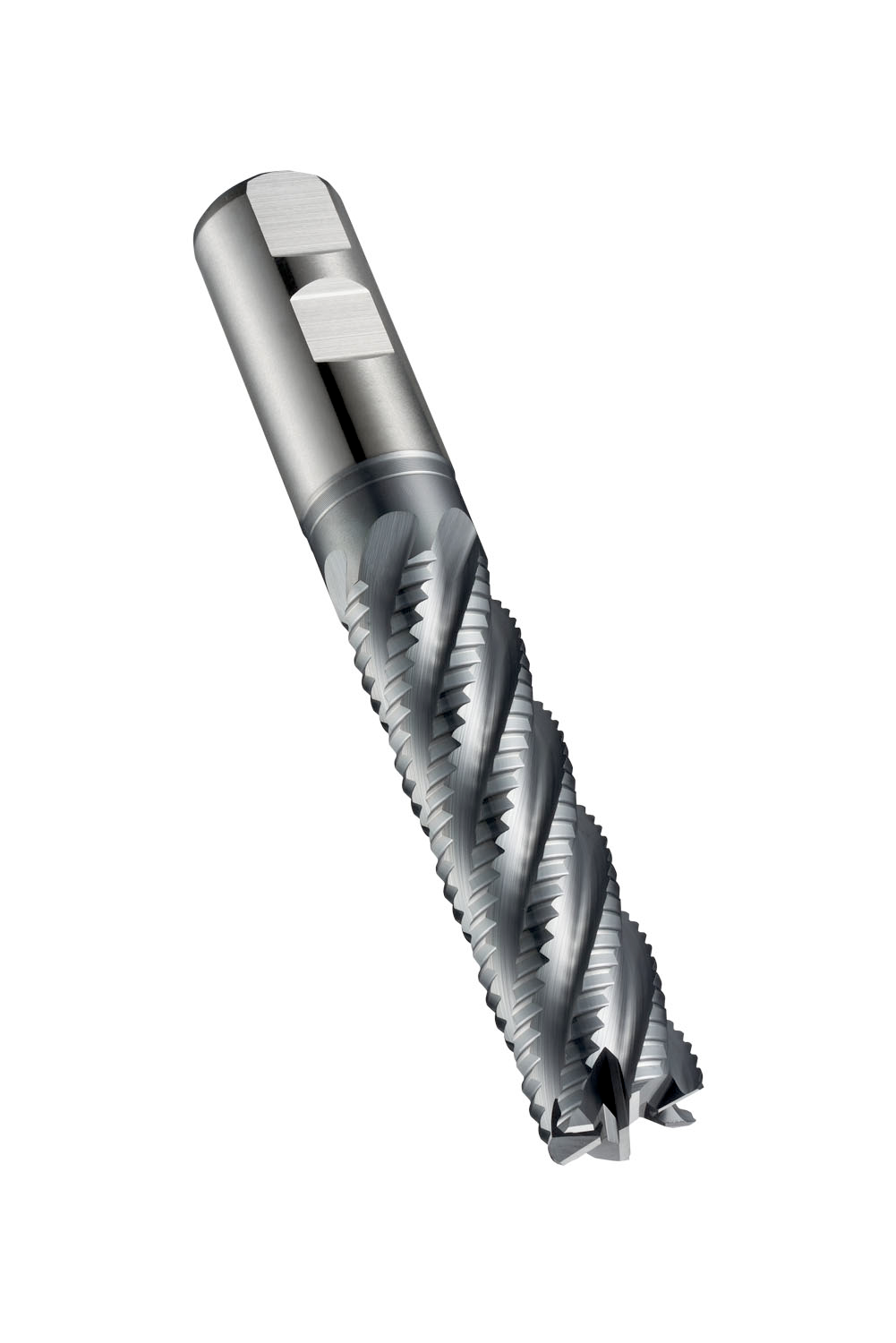

Long series roughing end mill with NRA asymetrical coasre pitch profile and 6 flutes, diameter 32mm with 106mm length of cut, 186mm overall length and 125.5mm reach with neck relief, according to DIN 844 L standard with a 32mm Weldon shank, powder metallurgical HSS-E with Alcrona coating, 35° helix and 12° rake angle for shoulder milling and slot milling in plain carbon, alloy and tool steel, stainless steel, cast-iron, copper or copper alloys and high-temperature alloys

Additional information

Weight 1.0197 kg
Dimensions
barcode
Additional Information

Description: Value
EAN number: 7320760128695
Product number (SAP): 86014521
Ordering code ANSI: C94832.0
Gross weight – grams: 1003.6
Cutting diameter – millimeter (DC): 32 mm
Connection diameter – millimeter (DCON MS): 32 mm
Depth of cut maximum – millimeter (APMX): 106 mm
Overall length – millimeter (OAL): 186 mm
Flute count (NOF): 6
Usable Length – millimeter (LU): 125.5 mm
Neck diameter – millimeter (DN): 31.5 mm
Radial rake angle (GAMF): 12
With Neck: Yes
ISO: C94832.0

Brand

DORMER
