DORMER D40040.0 HSCO Cutters

Product Code: D40040.0

$465.66$423.33 Ex. GST

Product Code: D40040.0 SKU D40040.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

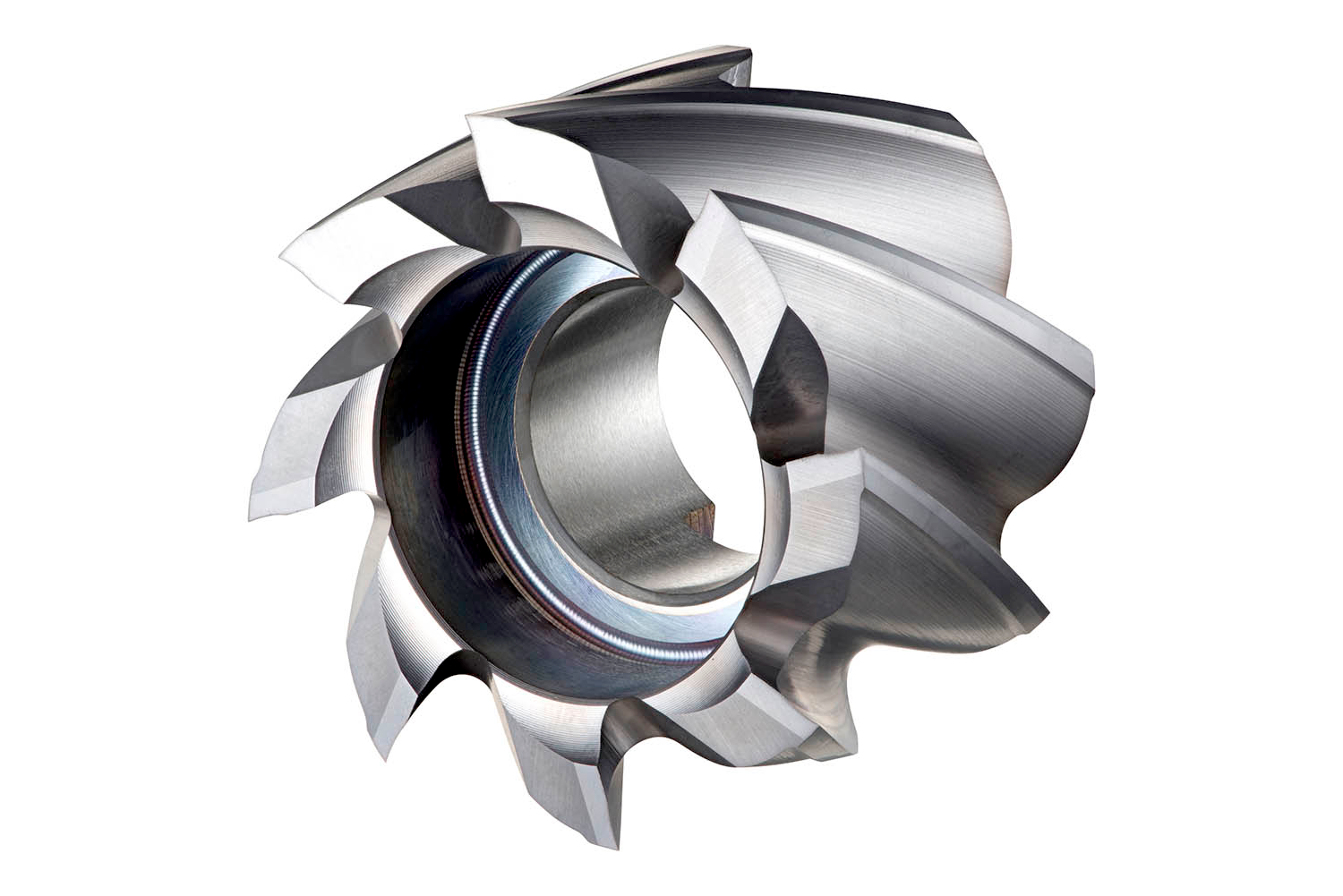

Shell end mill with 8 flutes, diameter 40mm with 32mm length of cut, according to DIN 1880 standard with a 16mm bore with tenon drive, cobalt based HSS-E with bright finish, 30° helix and 12° rake angle for face milling and shoulder milling in free machining, plain carbon and alloy steel, ferritic, martensitic and super-austenitic, Duplex or precipitation hardening stainless steel, cast-iron and cast aluminium and copper or copper alloys

Additional information

Weight 0.4521 kg
barcode
Additional Information

Description: Value
EAN number: 7320760077245
Product number (SAP): 86014576
Ordering code ANSI: D40040.0
Gross weight – grams: 170.7
Cutting diameter – millimeter (DC): 40 mm
Cutting width – millimeter (CW): 32 mm
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 8
Radial rake angle (GAMF): 12
ISO: D40040.0

Brand

DORMER
