DORMER D42063.0 HSCO Cutters

Product Code: D42063.0

$966.45$878.59 Ex. GST

Product Code: D42063.0 SKU D42063.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

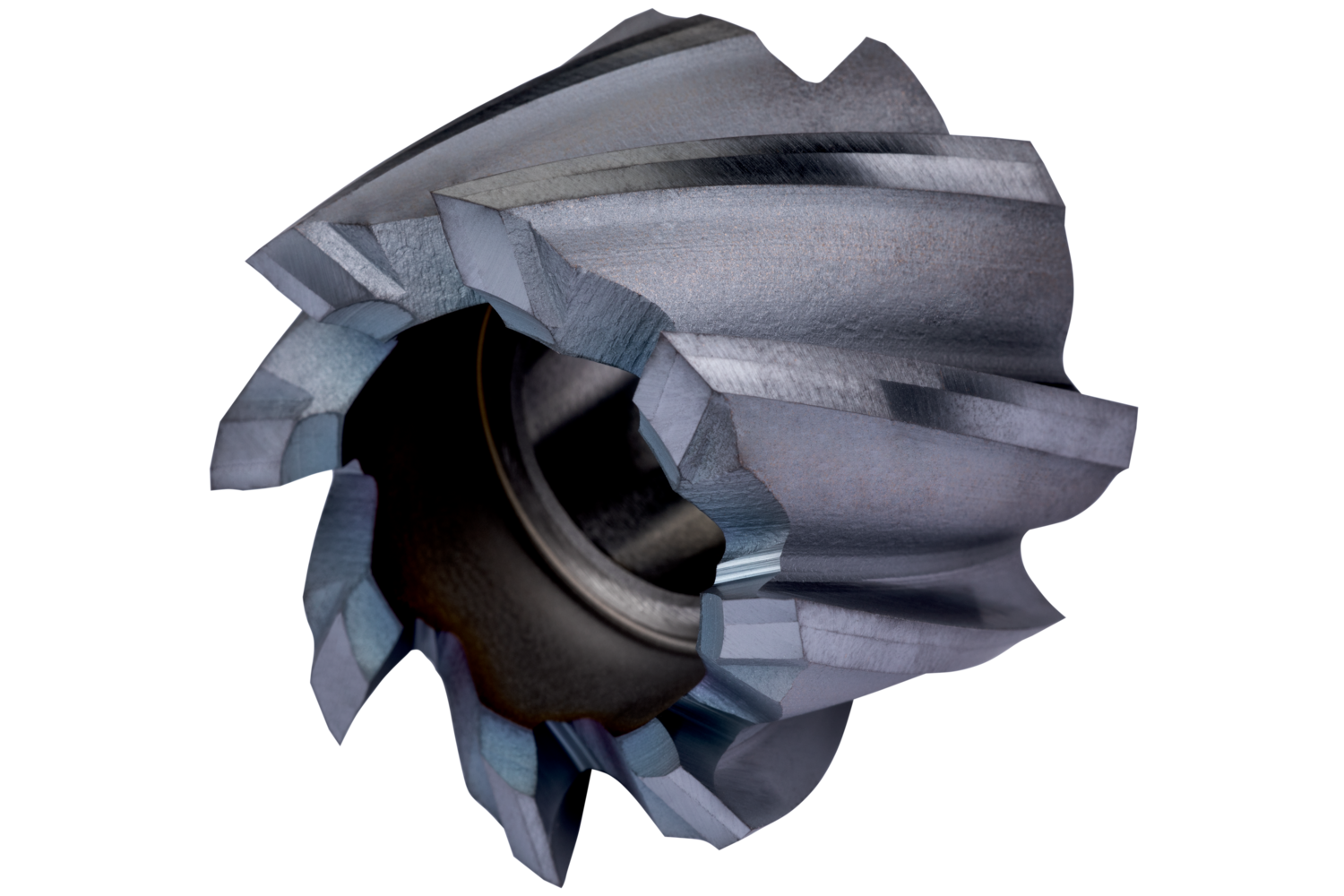

Shell end mill with 8 flutes, diameter 63mm with 40mm length of cut, according to DIN 1880 standard with a 27mm bore with tenon drive, cobalt based HSS-E with TiCN coating, 30° helix and 12° rake angle for face milling and shoulder milling in steel and cast steel, stainless steel, cast-iron, cast aluminium and copper or copper alloys and high-temperature alloys

Additional information

Weight 0.9383 kg
barcode
Additional Information

Description: Value
EAN number: 7320760077719
Product number (SAP): 86014589
Ordering code ANSI: D42063.0
Gross weight – grams: 480
Cutting diameter – millimeter (DC): 63 mm
Cutting width – millimeter (CW): 40 mm
Connection diameter – millimeter (DCON MS): 27 mm
Flute count (NOF): 8
Radial rake angle (GAMF): 12
ISO: D42063.0

Brand

DORMER
