DORMER D745100.0X4.0 HSS Slitting Saws

Product Code: D745100.0X4.0

$166.55$151.41 Ex. GST

Product Code: D745100.0X4.0 SKU D745100.0X4.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

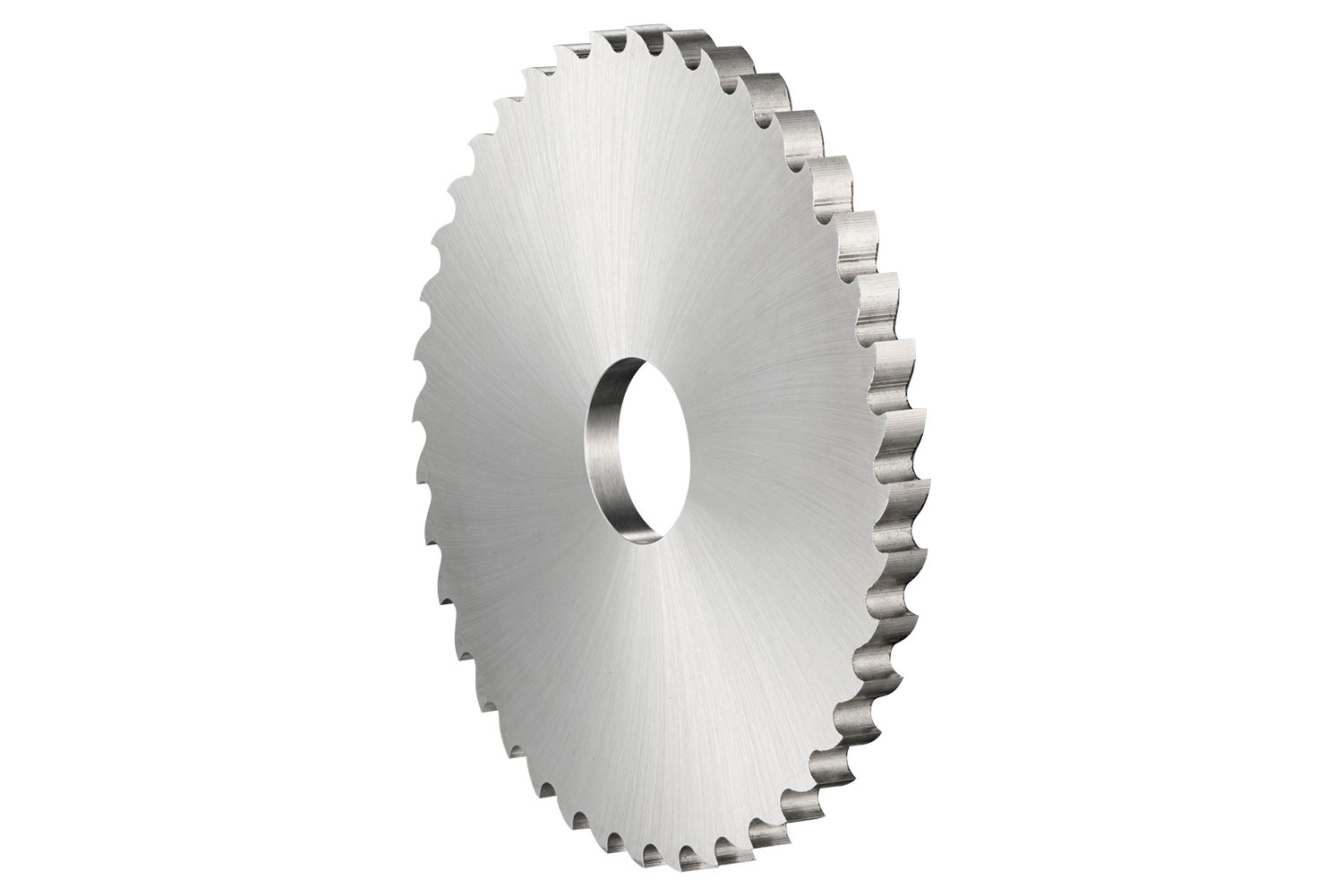

Metal slitting saw with coarse pitch and 40 teeth, diameter 100mm with 4mm width of cut, according to DIN 1838 standard with a 22mm bore, HSS with bright finish, and 15° rake angle for cut-of sawing, shallow slotting and deep slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight 0.1617 kg
barcode
Additional Information

Description: Value
EAN number: 7320760284001
Product number (SAP): 86014606
Ordering code ANSI: D745100.0X4.0
Gross weight – grams: 268.2
Cutting diameter – millimeter (DC): 100 mm
Cutting width – millimeter (CW): 4 mm
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 40
Radial rake angle (GAMF): 15
ISO: D745100.0X4.0
