DORMER D745160.0X3.0 HSS Slitting Saws

Product Code: D745160.0X3.0

$252.66$229.69 Ex. GST

Product Code: D745160.0X3.0 SKU D745160.0X3.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

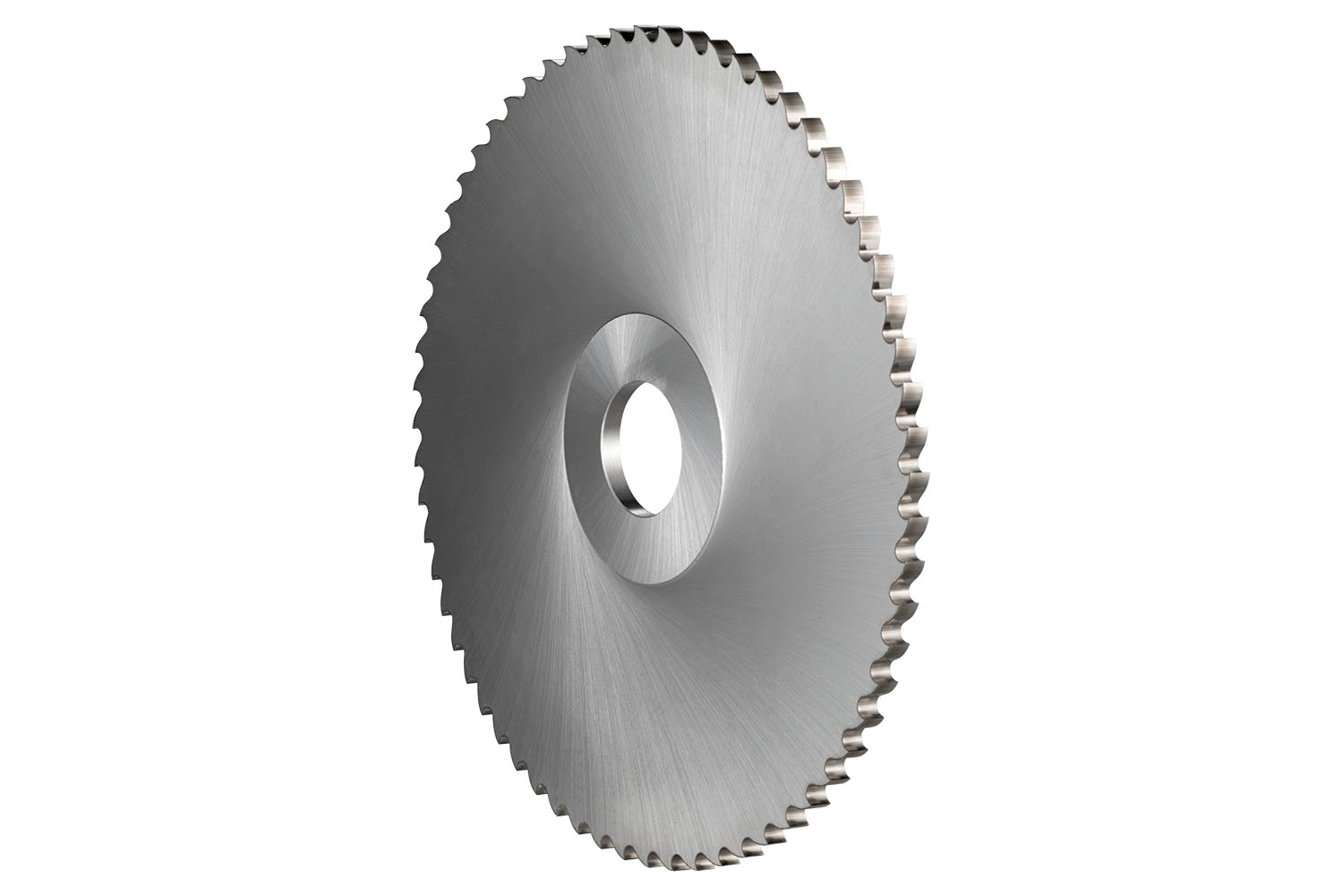

Metal slitting saw with coarse pitch and 64 teeth, diameter 160mm with 3mm width of cut, according to DIN 1838 standard with a 32mm bore, HSS with bright finish, and 15° rake angle for cut-of sawing, shallow slotting and deep slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight 0.2453 kg
barcode
Additional Information

Description: Value
EAN number: 7320760284193
Product number (SAP): 86014625
Ordering code ANSI: D745160.0X3.0
Gross weight – grams: 480
Cutting diameter – millimeter (DC): 160 mm
Cutting width – millimeter (CW): 3 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 64
Radial rake angle (GAMF): 15
ISO: D745160.0X3.0

Brand

DORMER
