DORMER D745200.0X3.0 HSS Slitting Saws

Product Code: D745200.0X3.0

$330.84$300.76 Ex. GST

Product Code: D745200.0X3.0 SKU D745200.0X3.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

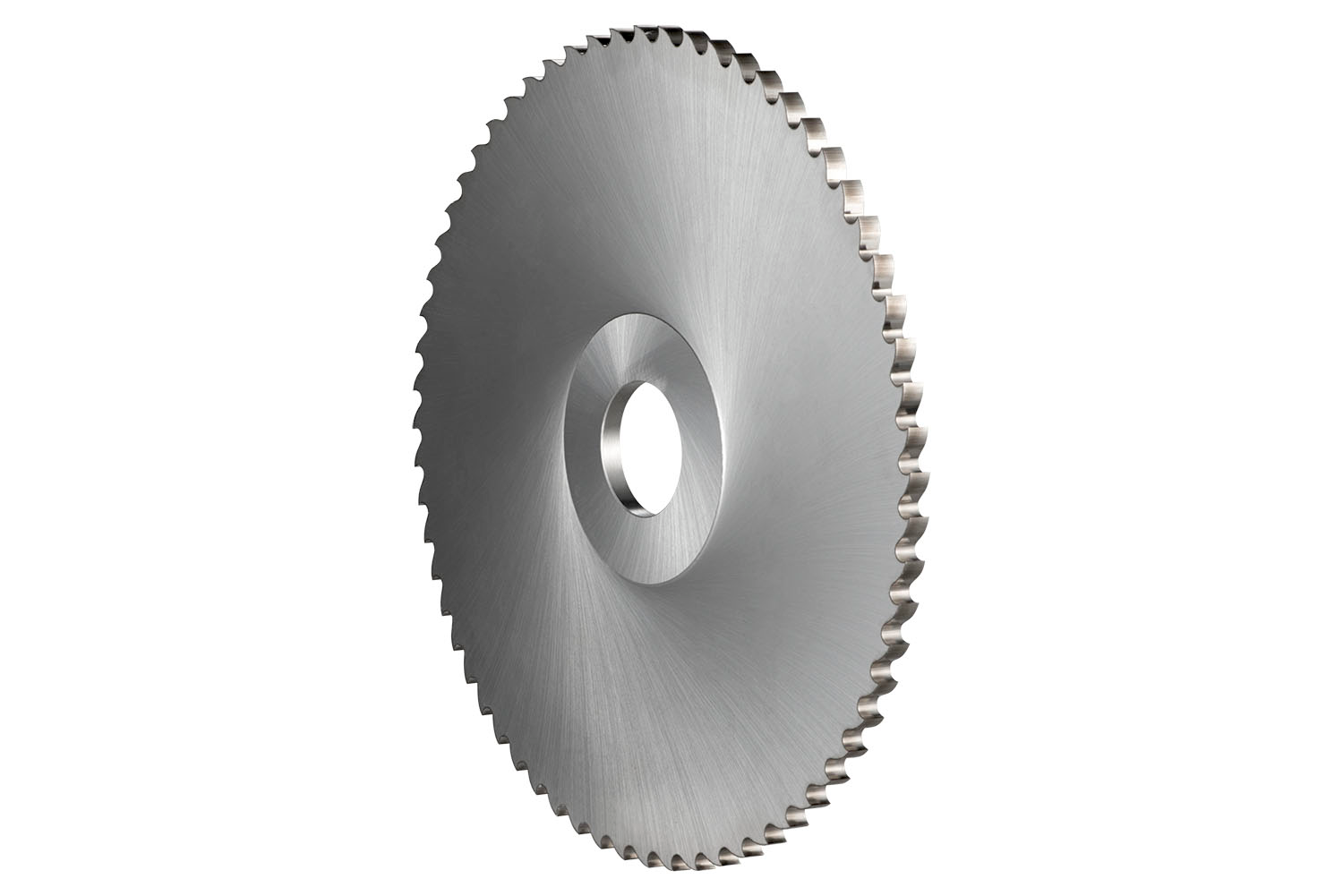

Metal slitting saw with coarse pitch and 64 teeth, diameter 200mm with 3mm width of cut, according to DIN 1838 standard with a 32mm bore, HSS with bright finish, and 15° rake angle for cut-of sawing, shallow slotting and deep slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight 0.3212 kg
barcode
Additional Information

Description: Value
EAN number: 7320760284292
Product number (SAP): 86014635
Ordering code ANSI: D745200.0X3.0
Gross weight – grams: 739.7
Cutting diameter – millimeter (DC): 200 mm
Cutting width – millimeter (CW): 3 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 64
Radial rake angle (GAMF): 15
ISO: D745200.0X3.0

Brand

DORMER
