DORMER D747100.0X1.6 HSS Slitting Saws

Product Code: D747100.0X1.6

$102.54$93.22 Ex. GST

Product Code: D747100.0X1.6 SKU D747100.0X1.6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

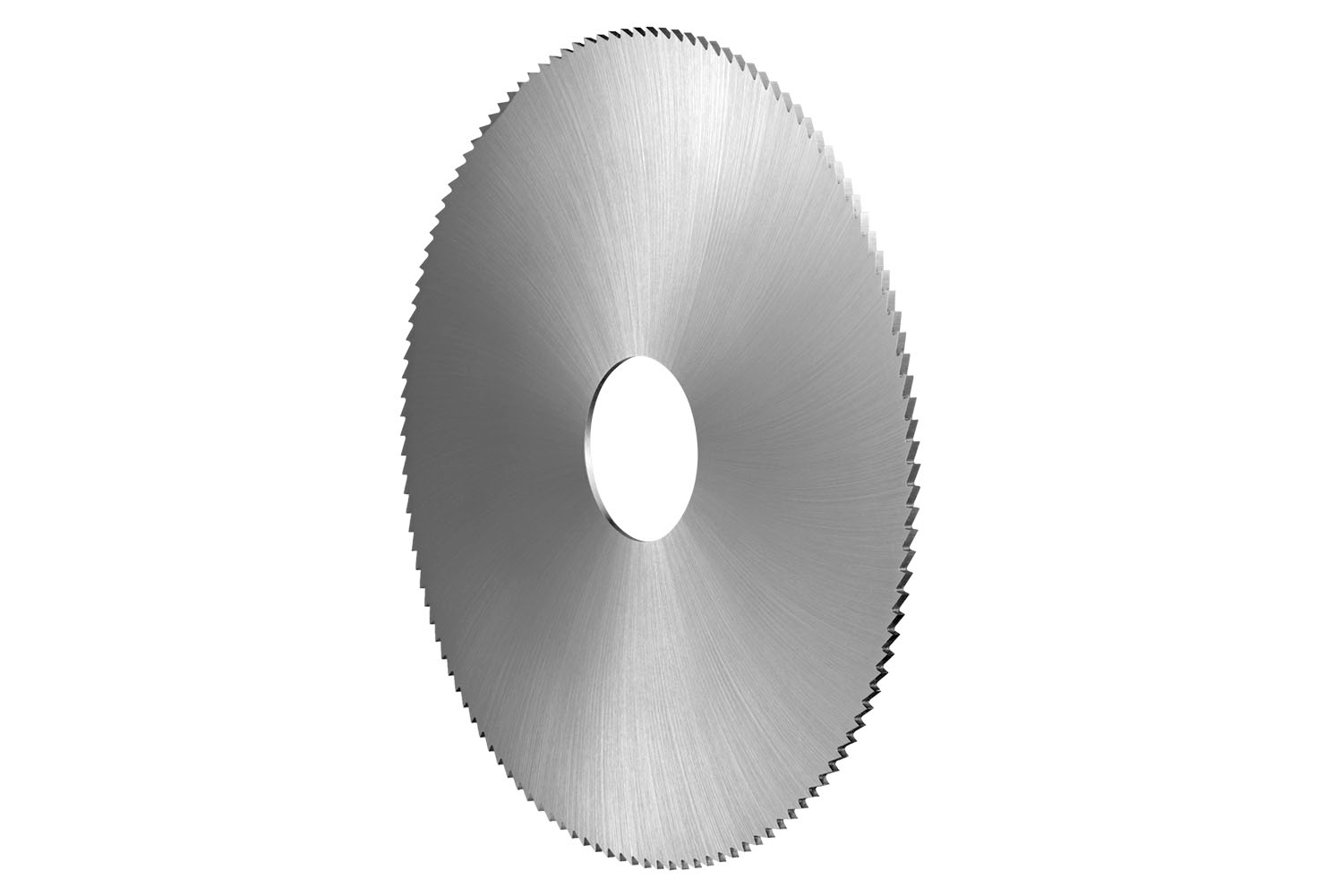

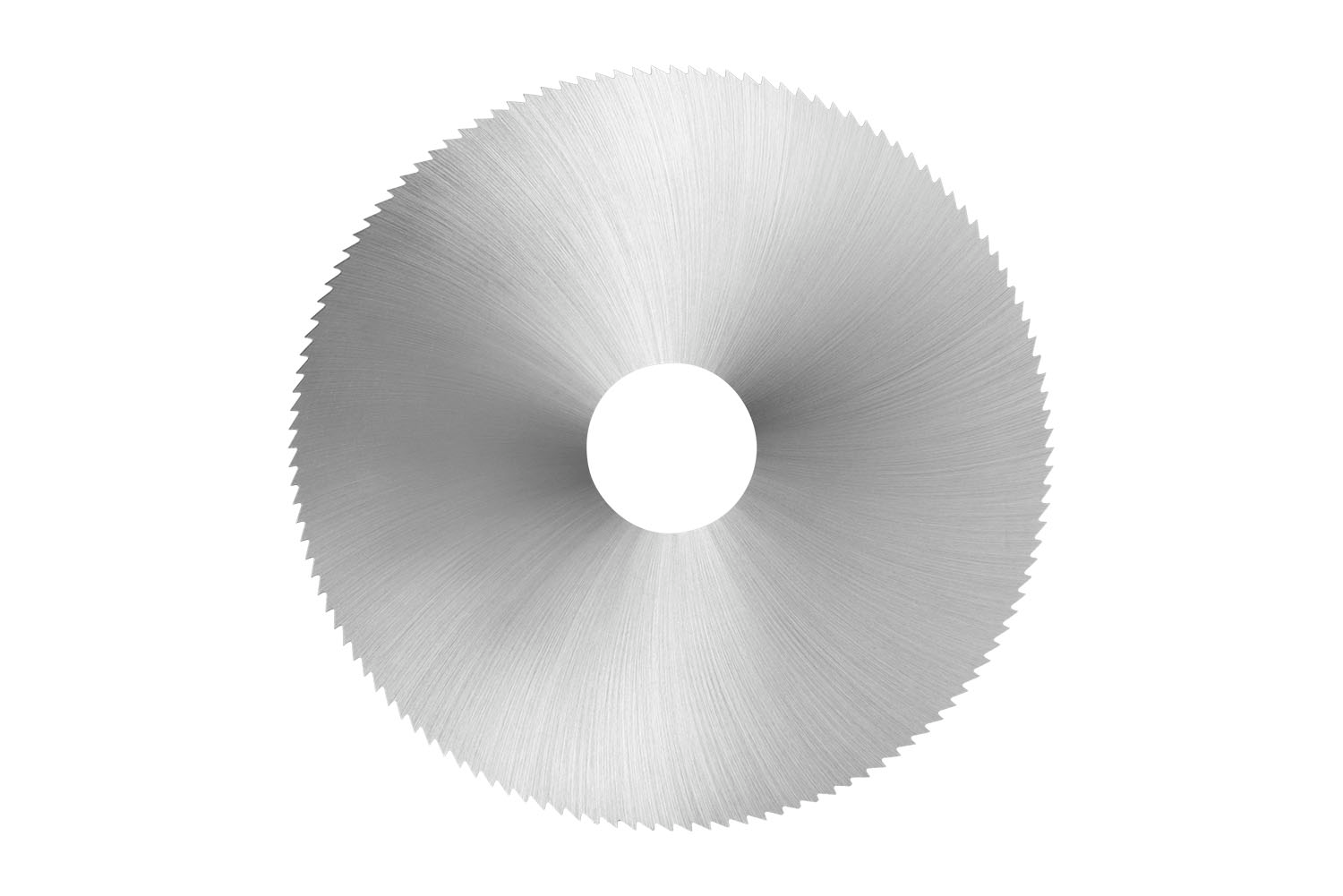

Metal slitting saw with fine pitch and 100 teeth, diameter 100mm with 1.6mm width of cut, according to DIN 1837 standard with a 22mm bore, HSS with bright finish, and 5° rake angle for cut-of sawing, tube sawing and shallow slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight 0.0996 kg
barcode
Additional Information

Description: Value
EAN number: 7320760285152
Product number (SAP): 86014686
Ordering code ANSI: D747100.0X1.6
Gross weight – grams: 147.8

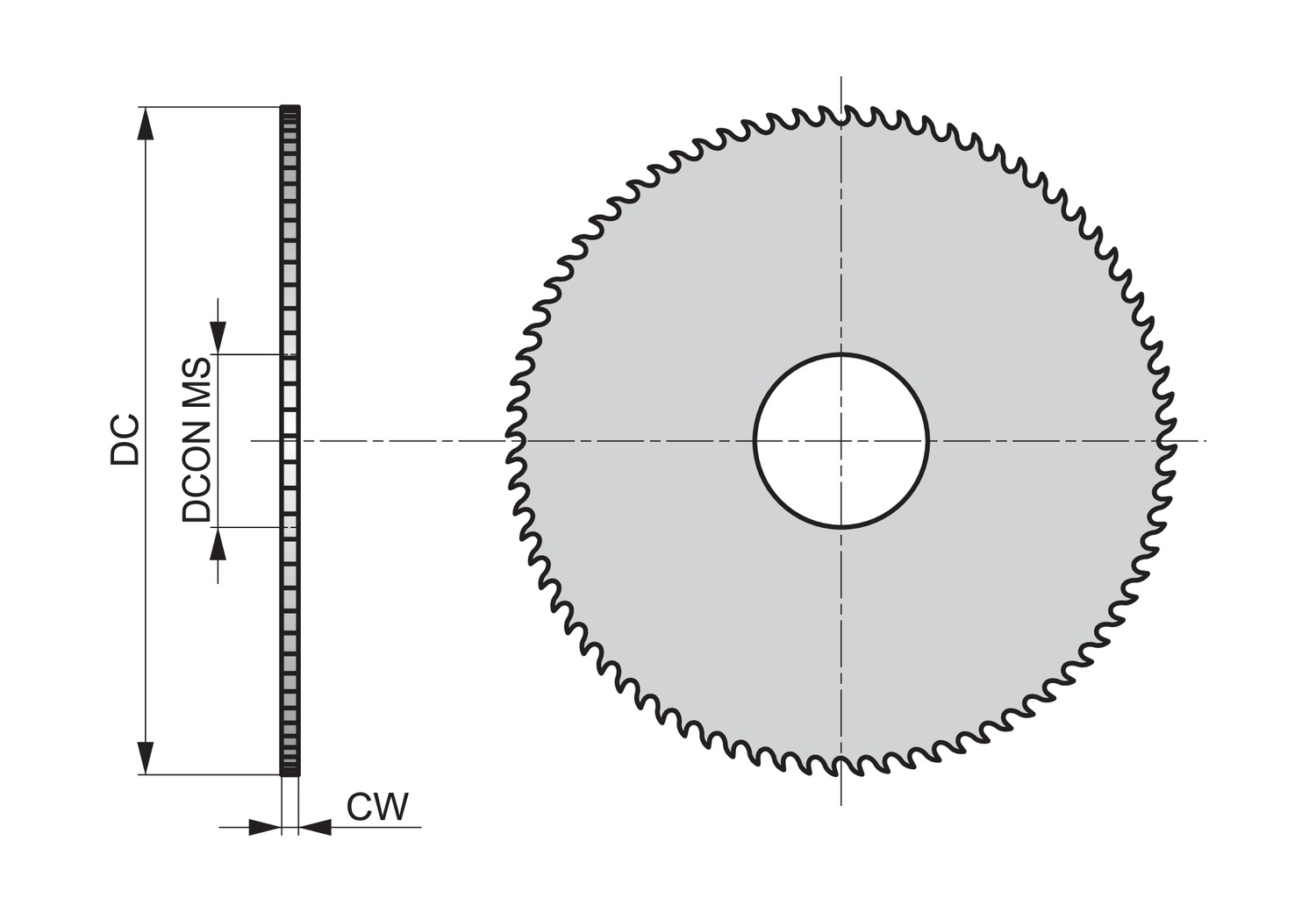

Cutting diameter – millimeter (DC): 100 mm
Cutting width – millimeter (CW): 1.6 mm
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 100
Radial rake angle (GAMF): 5
ISO: D747100.0X1.6

Brand

DORMER
