DORMER D747100.0X2.0 HSS Slitting Saws

Product Code: D747100.0X2.0

$112.74$102.49 Ex. GST

Product Code: D747100.0X2.0 SKU D747100.0X2.0 Categories 11 - HSS Slit Saws, CUTTING TOOLS (HSS & Carbide), Milling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

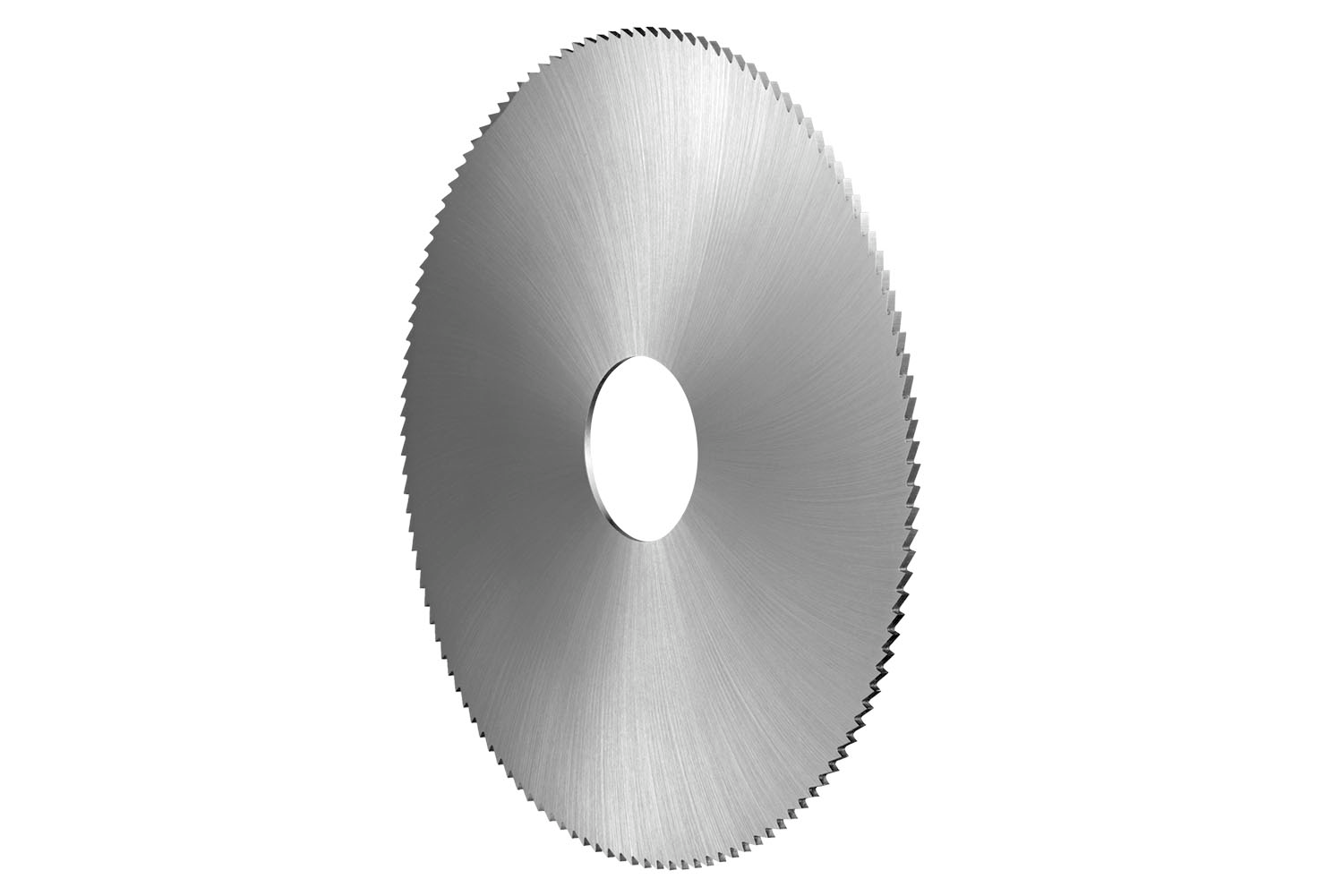

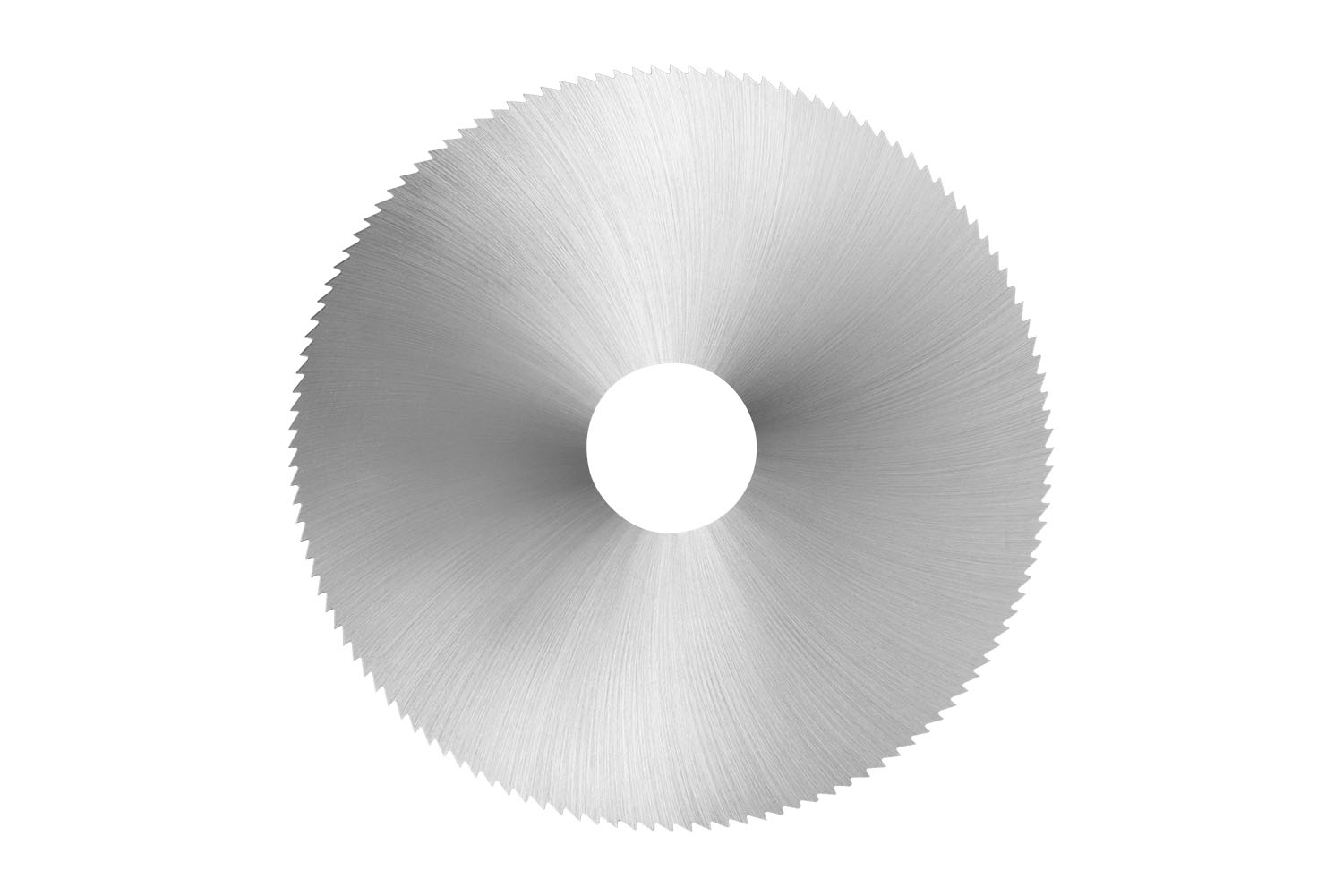

Metal slitting saw with fine pitch and 100 teeth, diameter 100mm with 2mm width of cut, according to DIN 1837 standard with a 22mm bore, HSS with bright finish, and 5° rake angle for cut-of sawing, tube sawing and shallow slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight	0.1095 kg
barcode

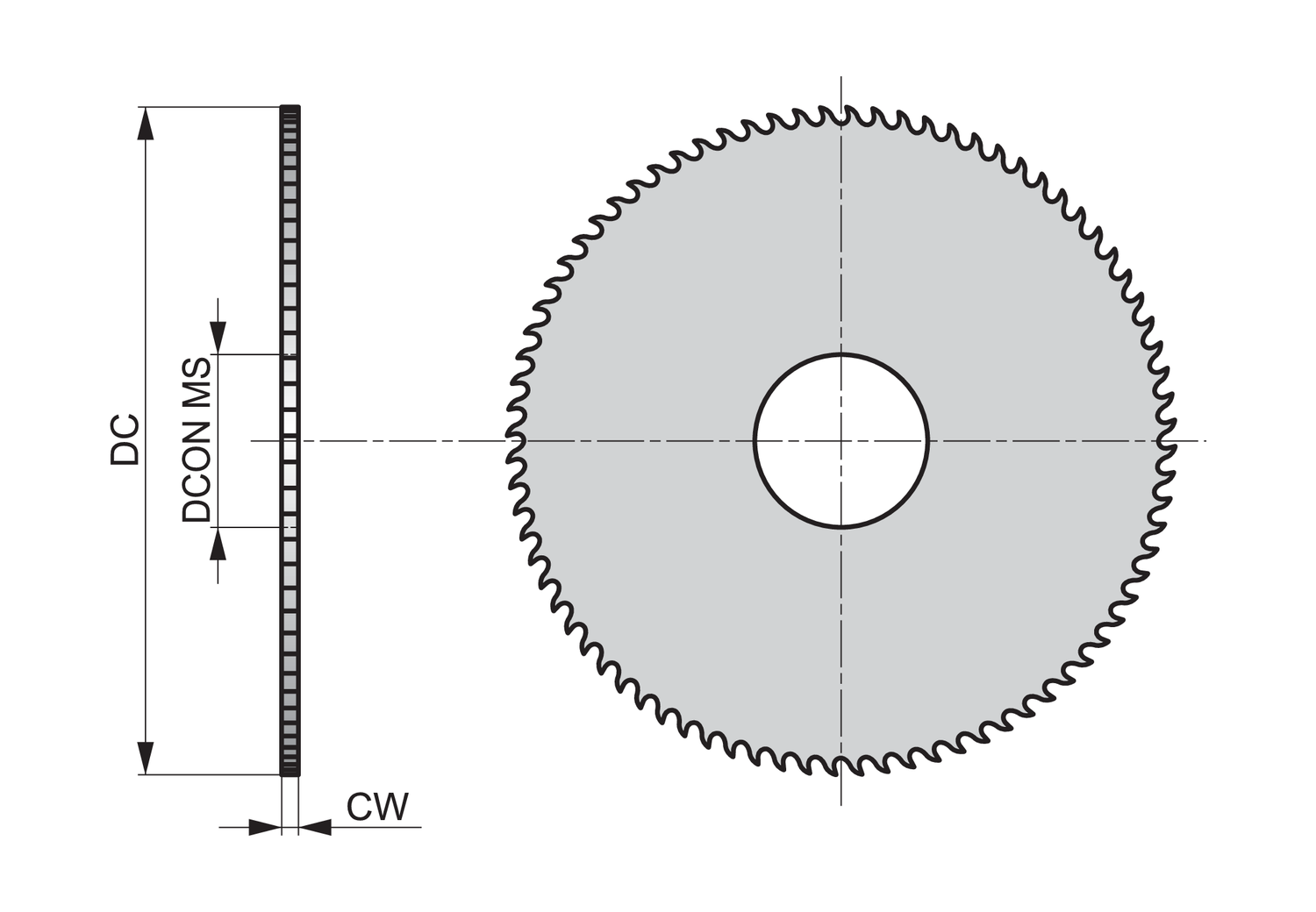

Additional Information	Description: Value EAN number: 7320760285169 Product number (SAP): 86014687 Ordering code ANSI: D747100.0X2.0 Gross weight – grams: 170.7 Cutting diameter – millimeter (DC): 100 mm Cutting width – millimeter (CW): 2 mm Connection diameter – millimeter (DCON MS): 22 mm Flute count (NOF): 100 Radial rake angle (GAMF): 5 ISO: D747100.0X2.0
