DORMER D747200.0X1.0 HSS Slitting Saws

Product Code: D747200.0X1.0

$225.47$204.97 Ex. GST

Product Code: D747200.0X1.0 SKU D747200.0X1.0 Categories 11 - HSS Slit Saws, CUTTING TOOLS (HSS & Carbide), Milling

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

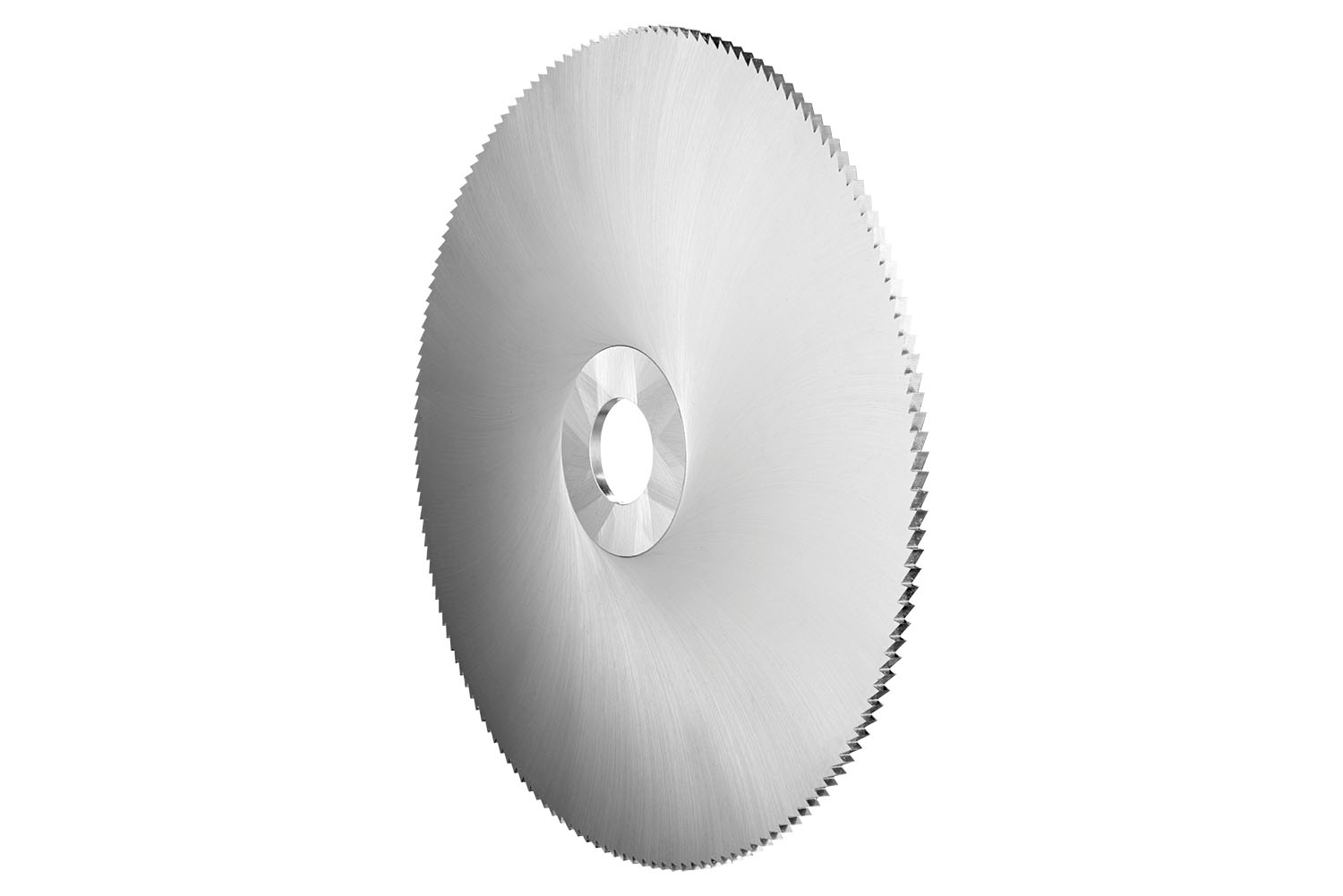

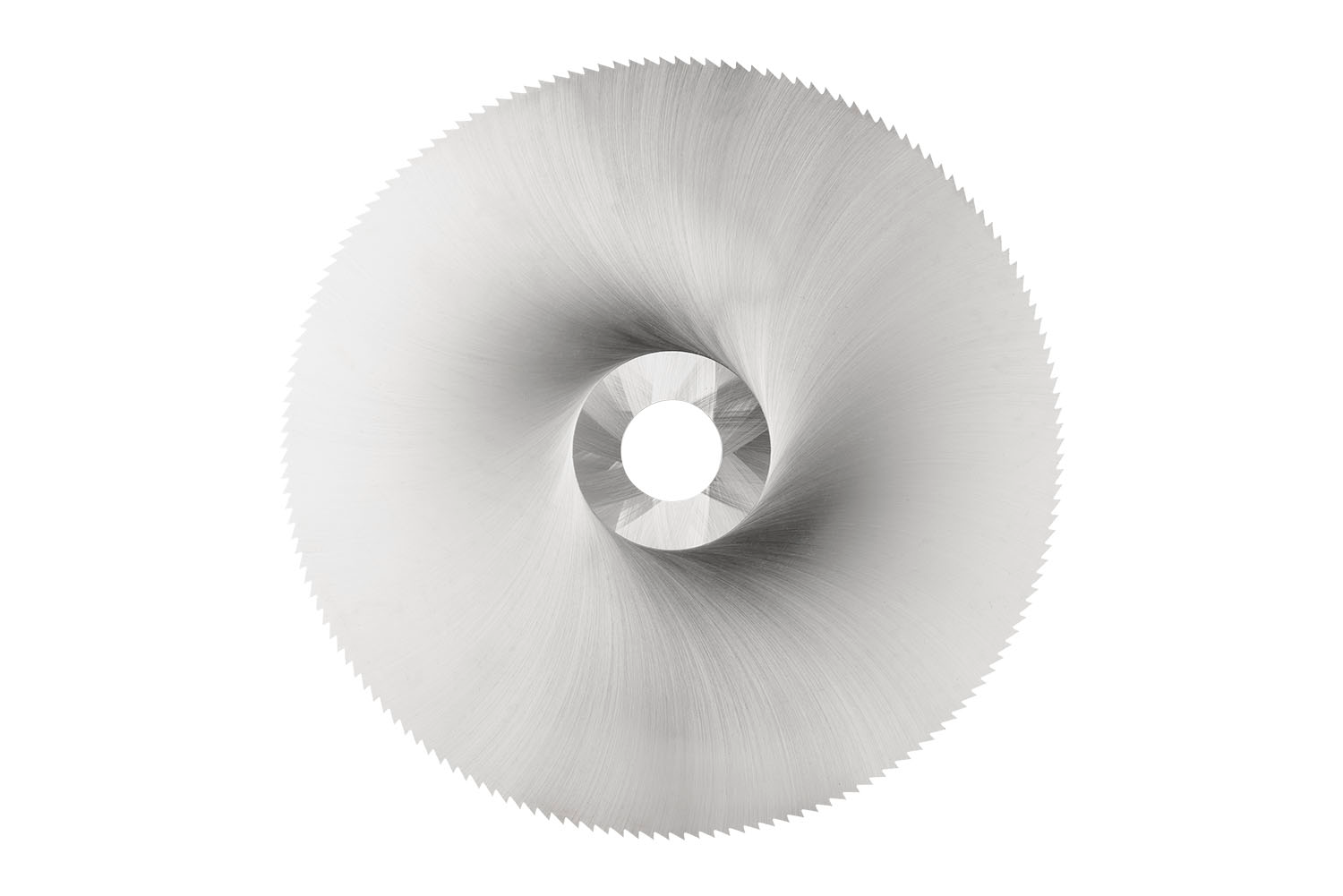

Metal slitting saw with fine pitch and 200 teeth, diameter 200mm with 1mm width of cut, according to DIN 1837 standard with a 32mm bore, HSS with bright finish, and 5° rake angle for cut-of sawing, tube sawing and shallow slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight	0.2189 kg
barcode

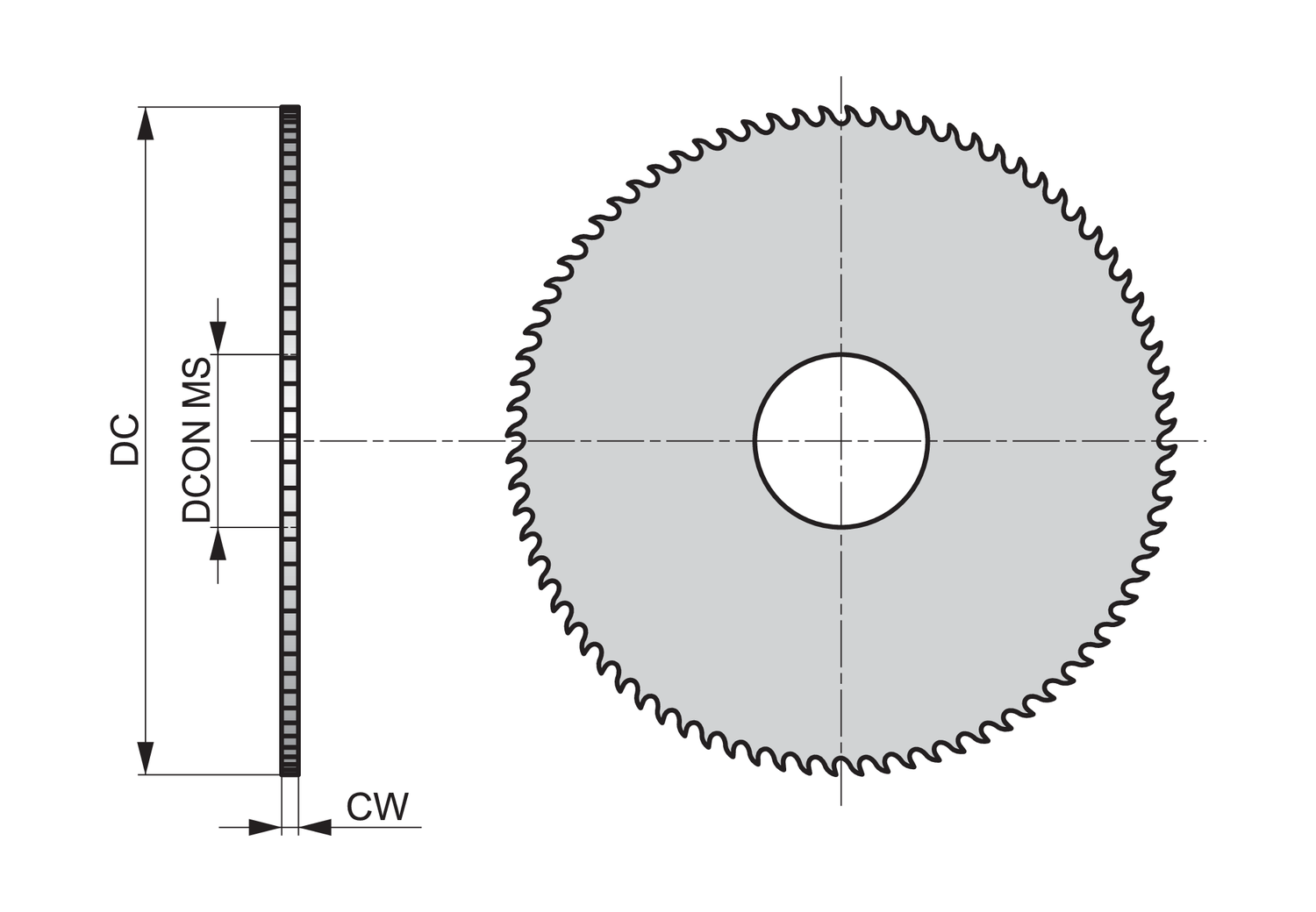

Additional Information	Description: Value EAN number: 7320760285428 Product number (SAP): 86014713 Ordering code ANSI: D747200.0X1.0 Gross weight – grams: 286 Cutting diameter – millimeter (DC): 200 mm Cutting width – millimeter (CW): 1 mm Connection diameter – millimeter (DCON MS): 32 mm Flute count (NOF): 200 Radial rake angle (GAMF): 5 ISO: D747200.0X1.0
