DORMER D747200.0X2.0 HSS Slitting Saws

Product Code: D747200.0X2.0

$258.32$234.84 Ex. GST

Product Code: D747200.0X2.0 SKU D747200.0X2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

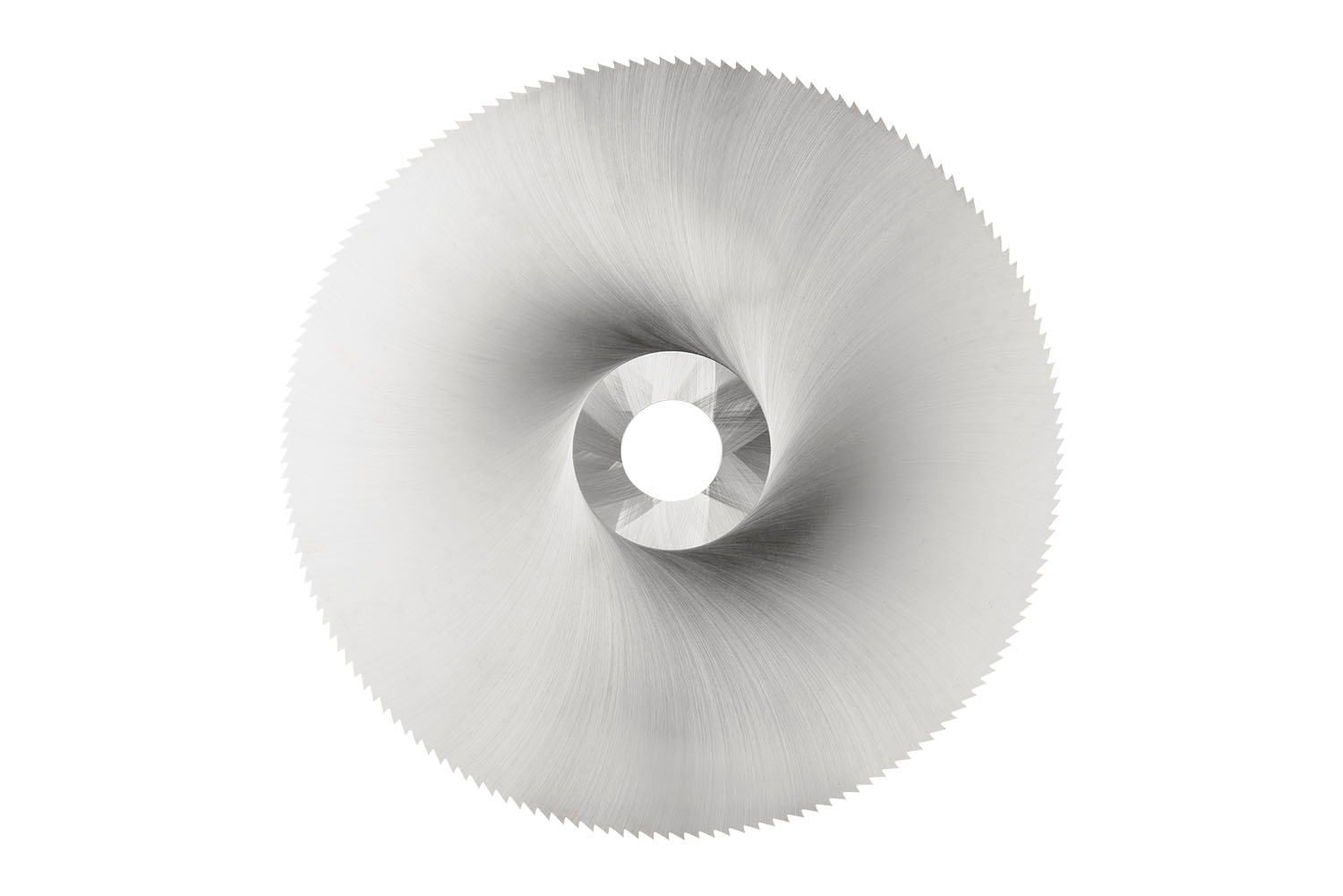

Metal slitting saw with fine pitch and 160 teeth, diameter 200mm with 2mm width of cut, according to DIN 1837 standard with a 32mm bore, HSS with bright finish, and 5° rake angle for cut-of sawing, tube sawing and shallow slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight 0.2508 kg
barcode
Additional Information

Description: Value
EAN number: 7320760285466
Product number (SAP): 86014717
Ordering code ANSI: D747200.0X2.0
Gross weight – grams: 500.9

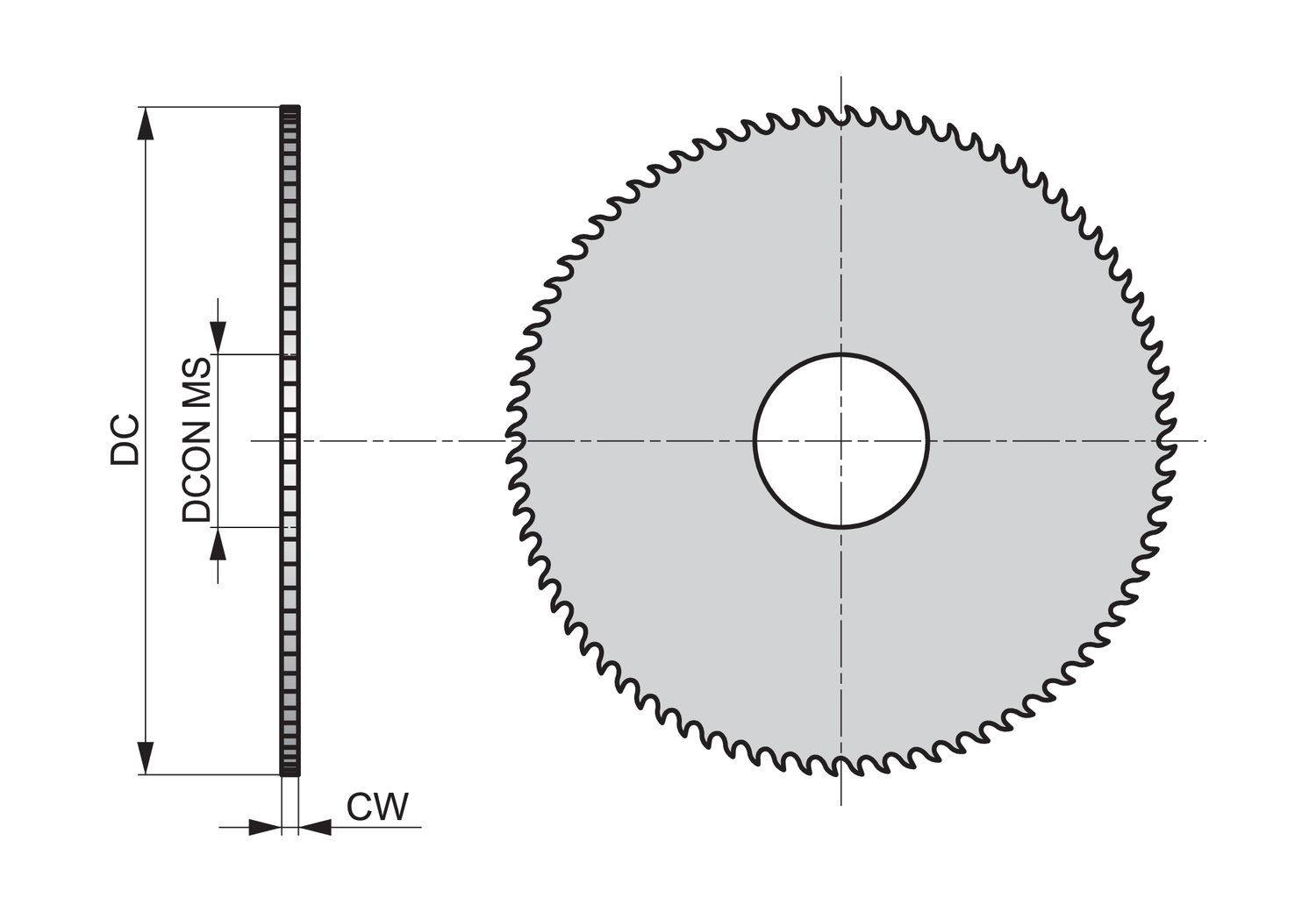

Cutting diameter – millimeter (DC): 200 mm
Cutting width – millimeter (CW): 2 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 160
Radial rake angle (GAMF): 5
ISO: D747200.0X2.0

Brand

DORMER
