DORMER D74763.0X4.0 HSS Slitting Saws

Product Code: D74763.0X4.0

$123.50$112.27 Ex. GST

Product Code: D74763.0X4.0 SKU D74763.0X4.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

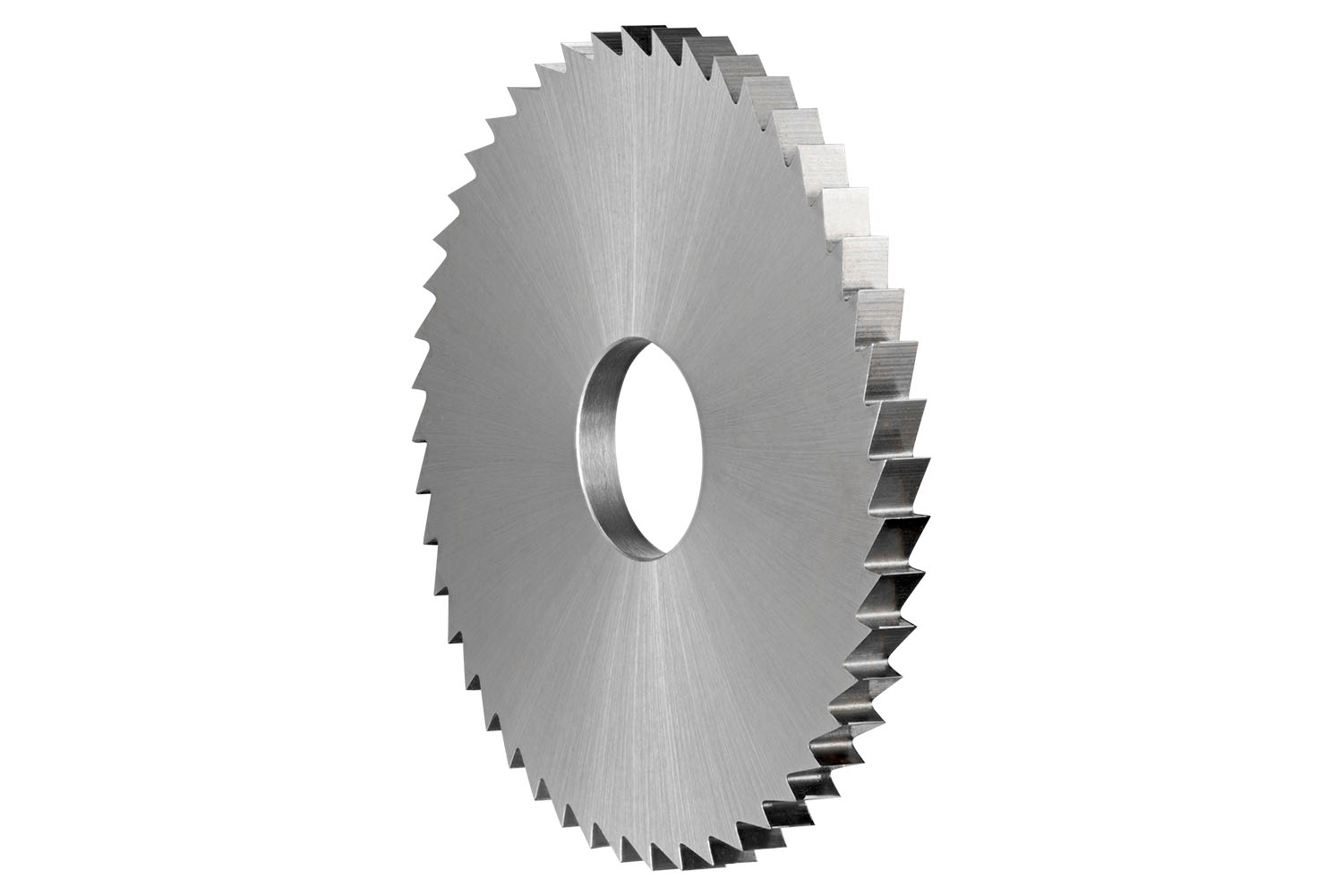

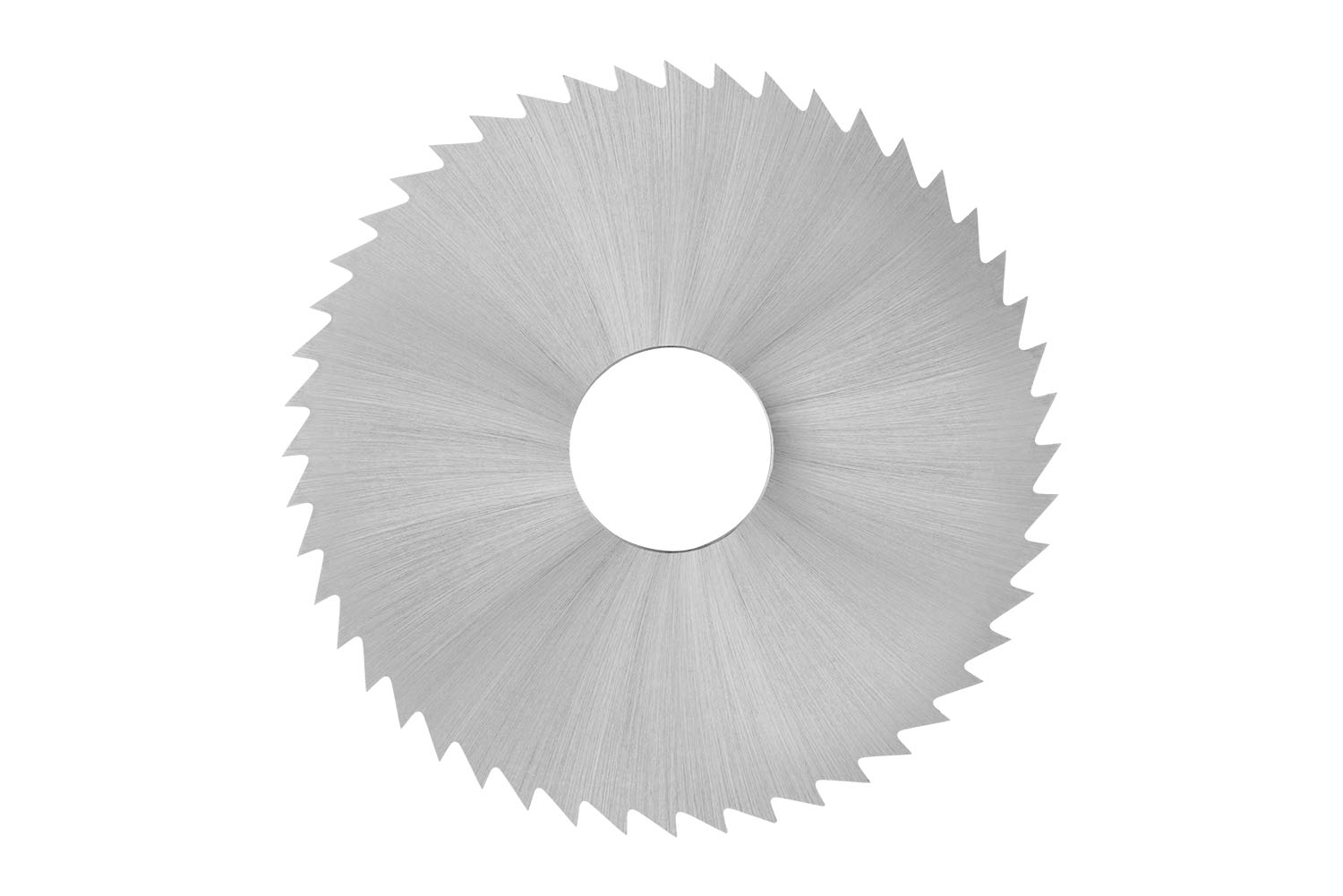

Metal slitting saw with fine pitch and 64 teeth, diameter 63mm with 4mm width of cut, according to DIN 1837 standard with a 16mm bore, HSS with bright finish, and 5° rake angle for cut-of sawing, tube sawing and shallow slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight 0.1199 kg
barcode
Additional Information

Description: Value
EAN number: 7320760284926
Product number (SAP): 86014785
Ordering code ANSI: D74763.0X4.0
Gross weight – grams: 103.2

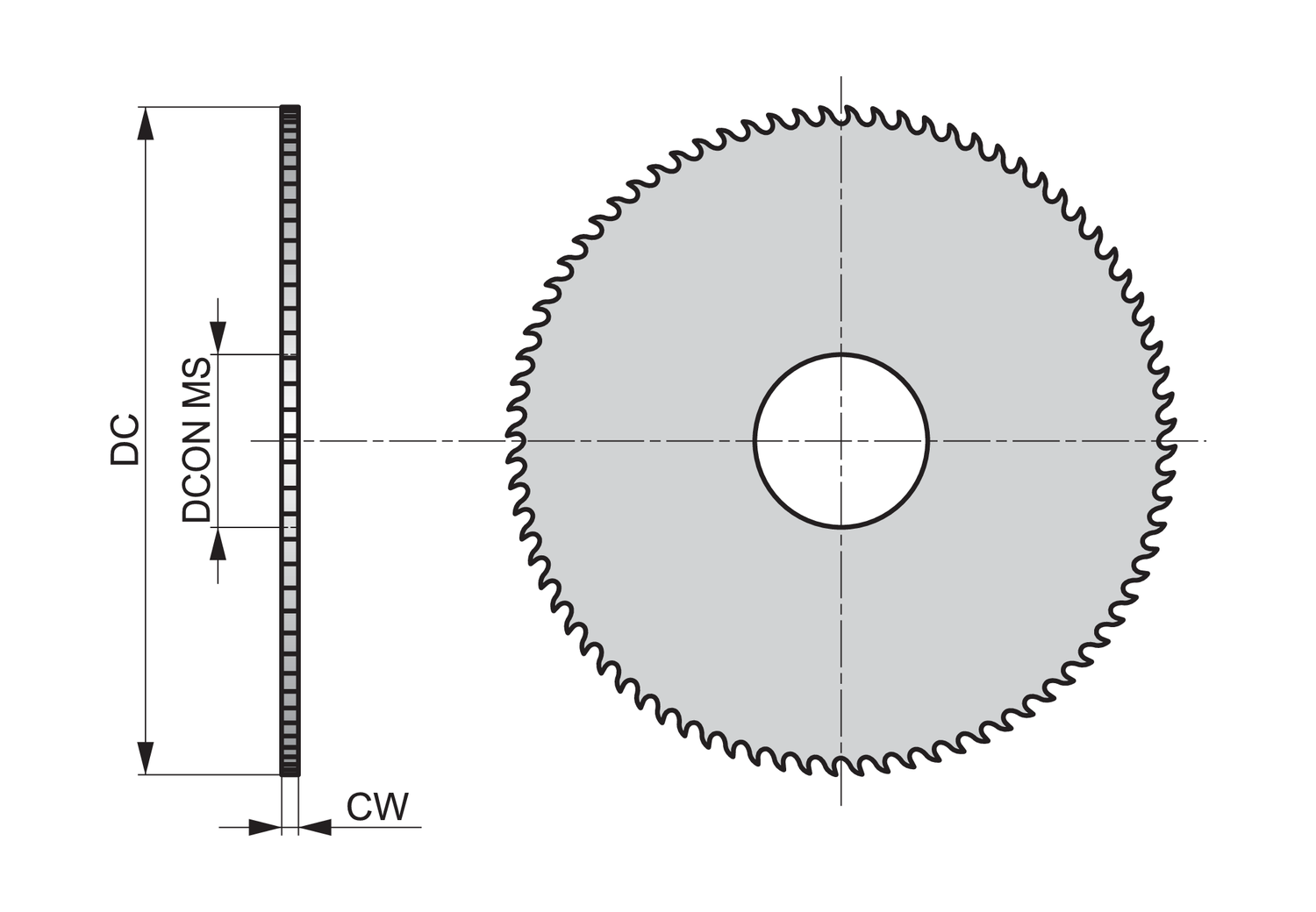

Cutting diameter – millimeter (DC): 63 mm
Cutting width – millimeter (CW): 4 mm
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 64
Radial rake angle (GAMF): 5
ISO: D74763.0X4.0
