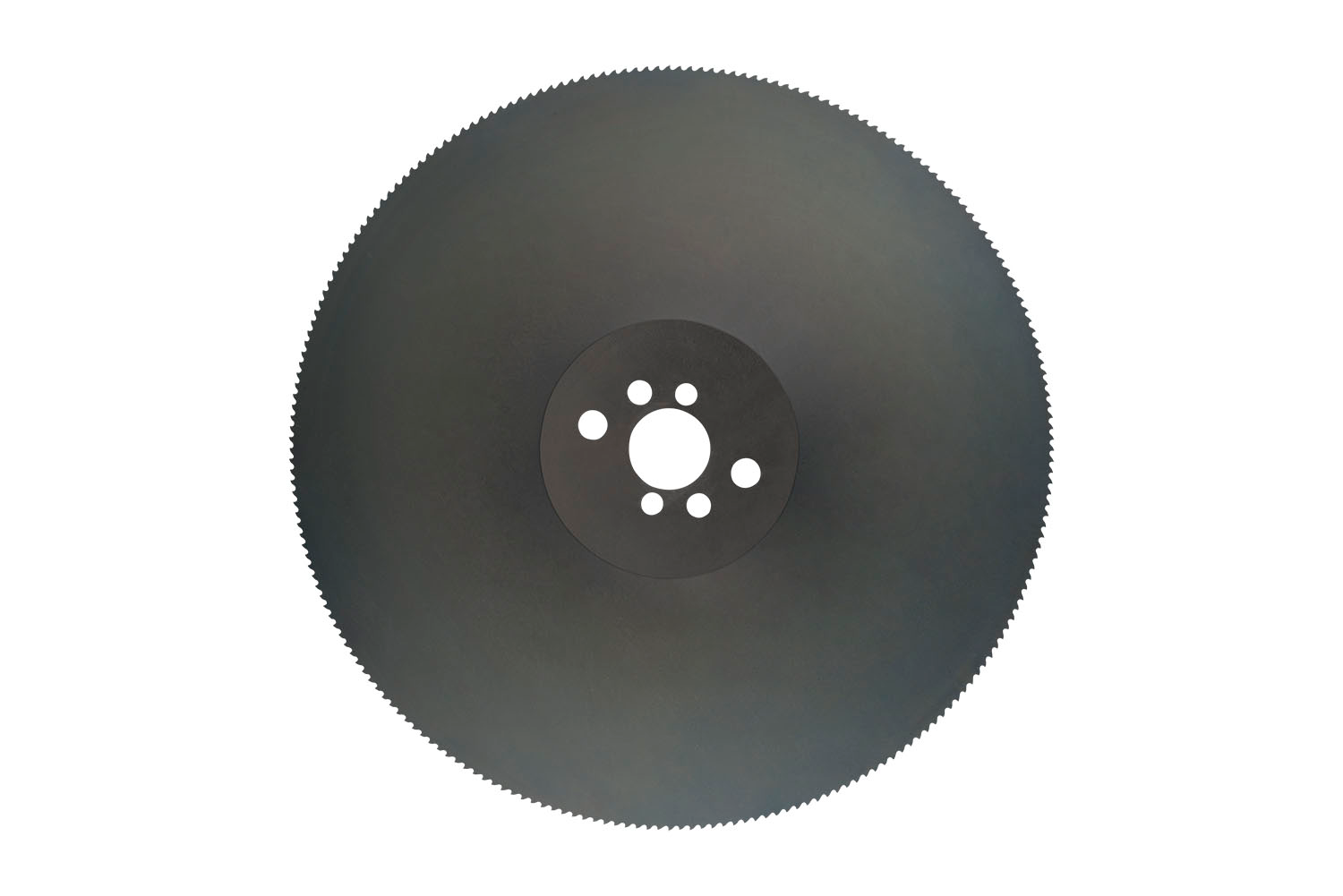

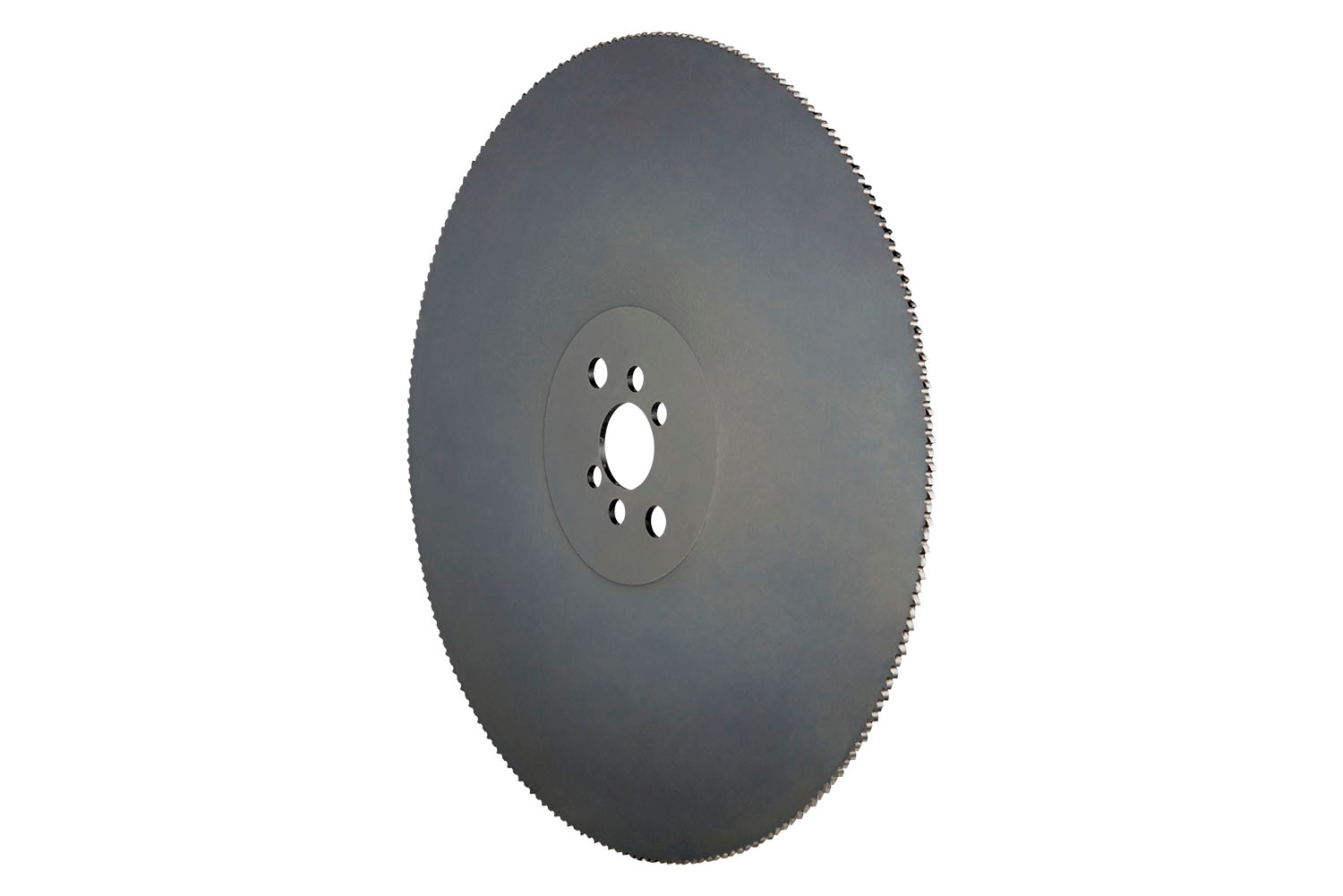

DORMER D750275.0X2.5 HSS Slitting Saws

Description: Value
EAN number: 7320760285701
Product number (SAP): 86014805
Ordering code ANSI: D750275.0X2.5
Gross weight – grams: 1165.7

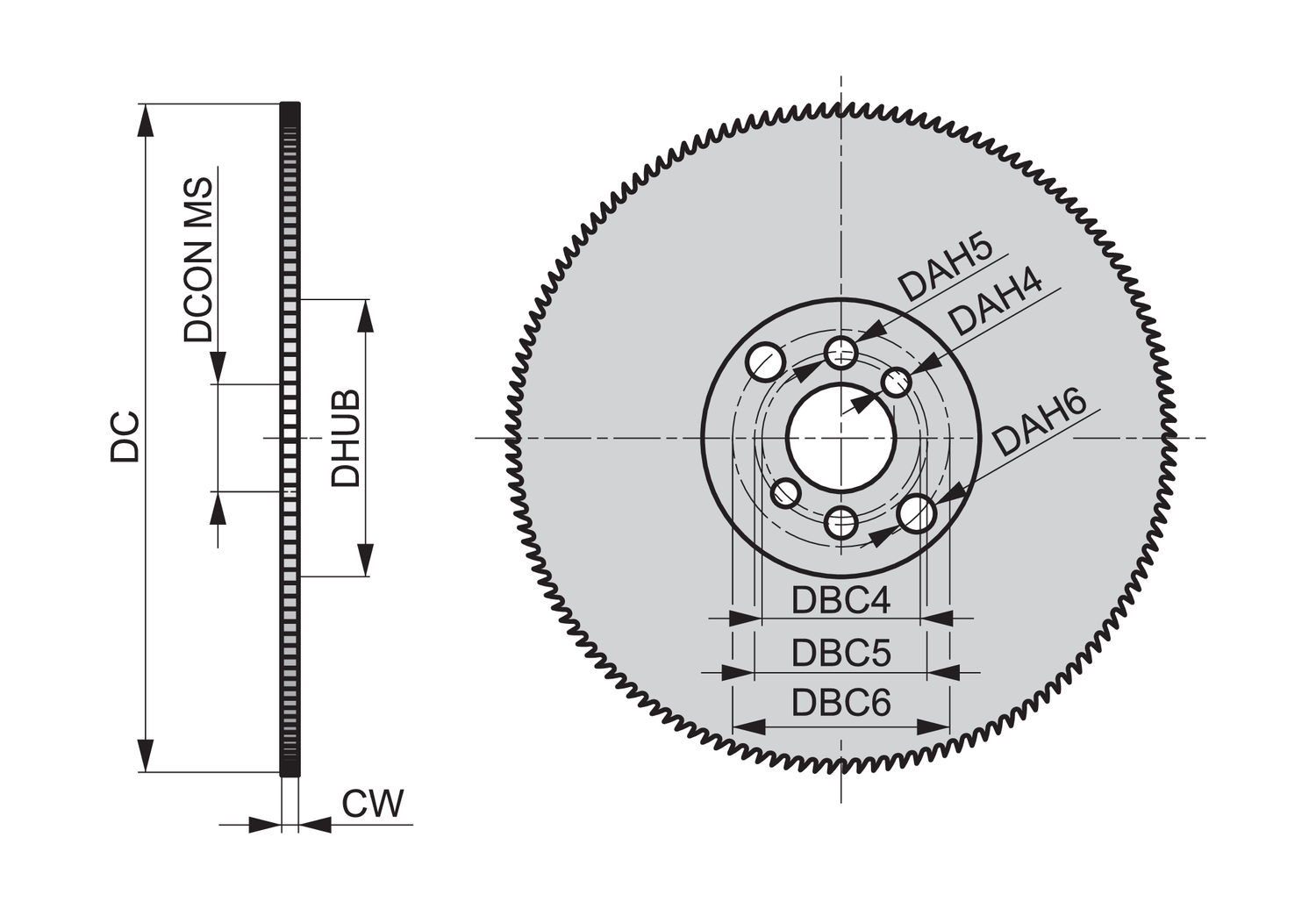

Cutting diameter – millimeter (DC): 275 mm
Cutting width – millimeter (CW): 2.5 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 180
Pitch of the blade – millimeter: 5 mm
Hub diameter – millimeter (DHUB): 100 mm
Diameter access hole – millimeter (DAH): 8 mm
Diameter bolt circle 4 – millimeter (DBC4): 45 mm
Diameter access hole 2 – millimeter (DAH2): 9 mm
Diameter bolt circle 5 – millimeter (DBC5): 50 mm
Diameter access hole 3 – millimeter (DAH3): 11 mm
Diameter bolt circle 6 – millimeter (DBC6): 63 mm
Radial rake angle (GAMF): 18
ISO: D750275.0X2.5
