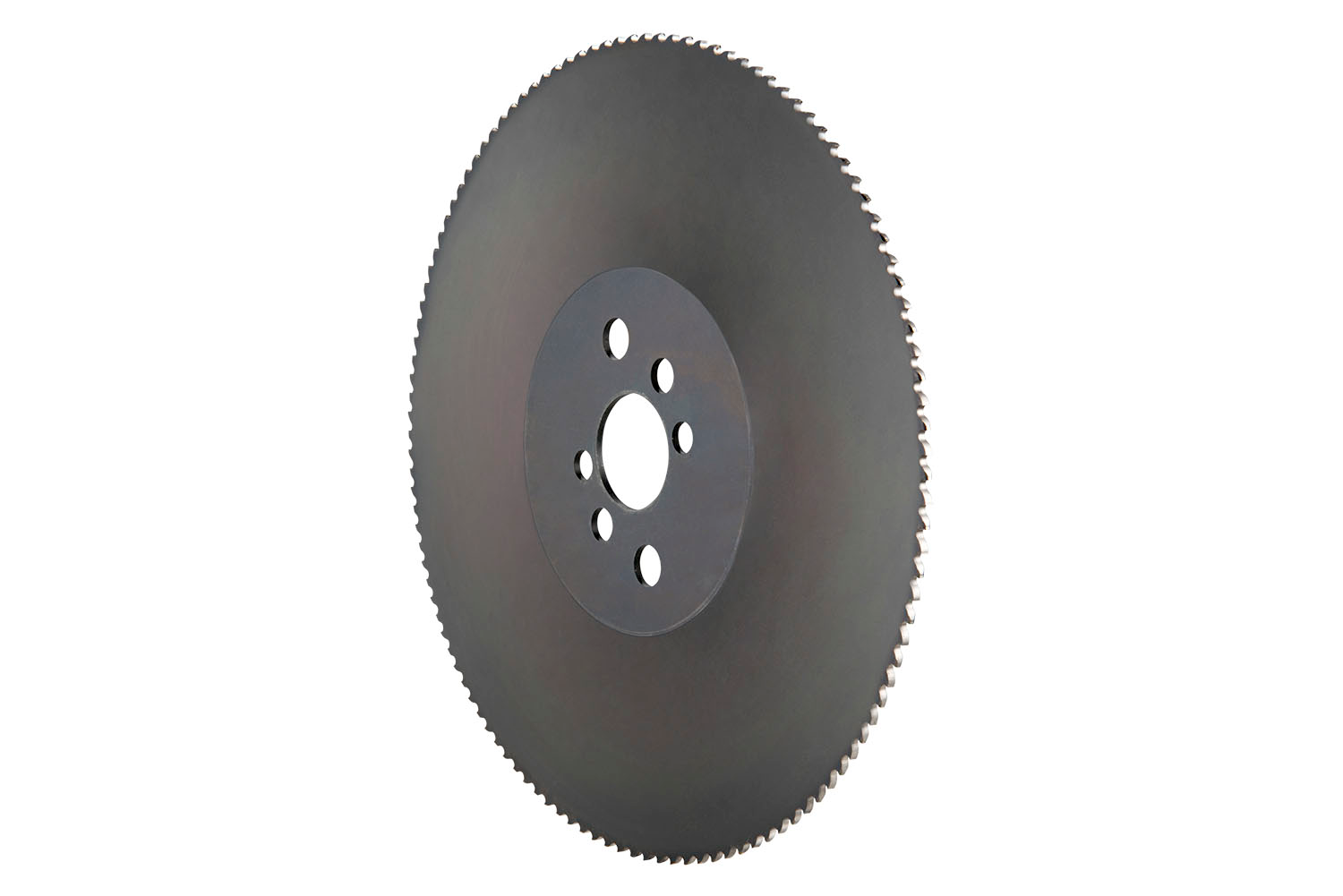

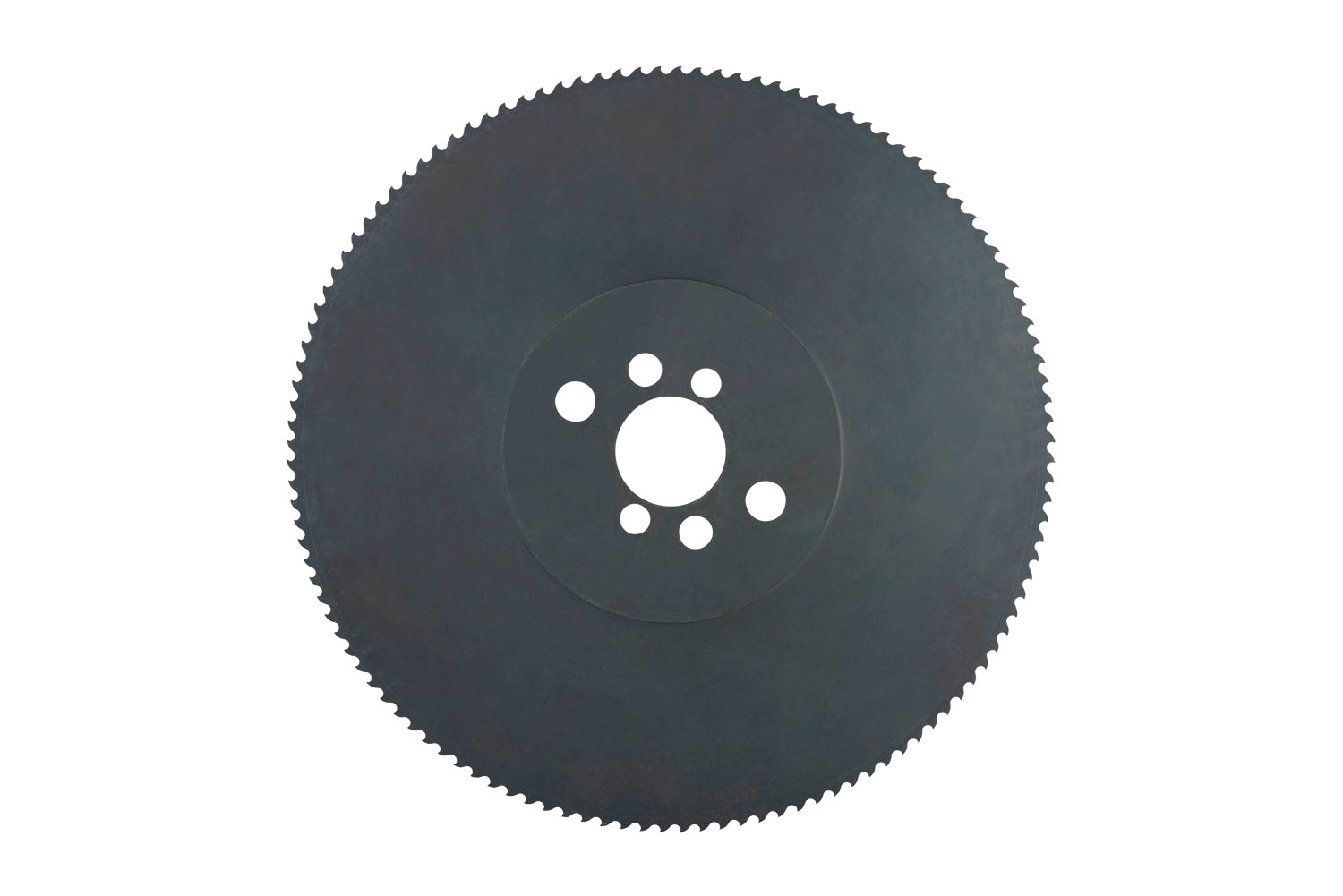

DORMER D752250.0X2.0X128 HSS Slitting Saws

Description: Value
EAN number: 7320760285923
Product number (SAP): 86014827
Ordering code ANSI: D752250.0X2.0X128
Gross weight – grams: 890

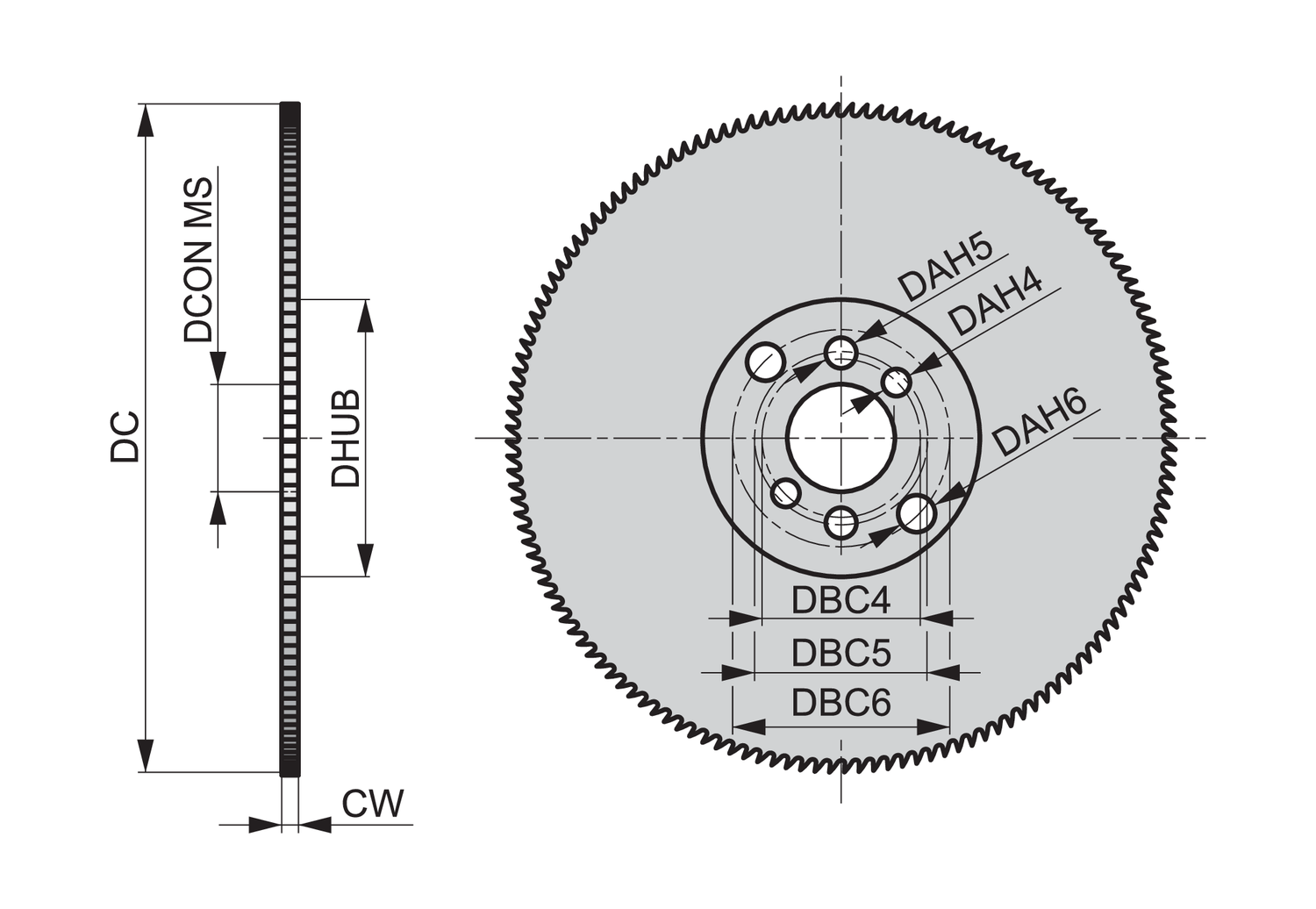

Cutting diameter – millimeter (DC): 250 mm
Cutting width – millimeter (CW): 2 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 128
Pitch of the blade – millimeter: 6 mm
Hub diameter – millimeter (DHUB): 100 mm
Diameter access hole – millimeter (DAH): 8 mm
Diameter bolt circle 4 – millimeter (DBC4): 45 mm
Diameter access hole 2 – millimeter (DAH2): 9 mm
Diameter bolt circle 5 – millimeter (DBC5): 50 mm
Diameter access hole 3 – millimeter (DAH3): 11 mm
Diameter bolt circle 6 – millimeter (DBC6): 63 mm
Radial rake angle (GAMF): 18
ISO: D752250.0X2.0X128
