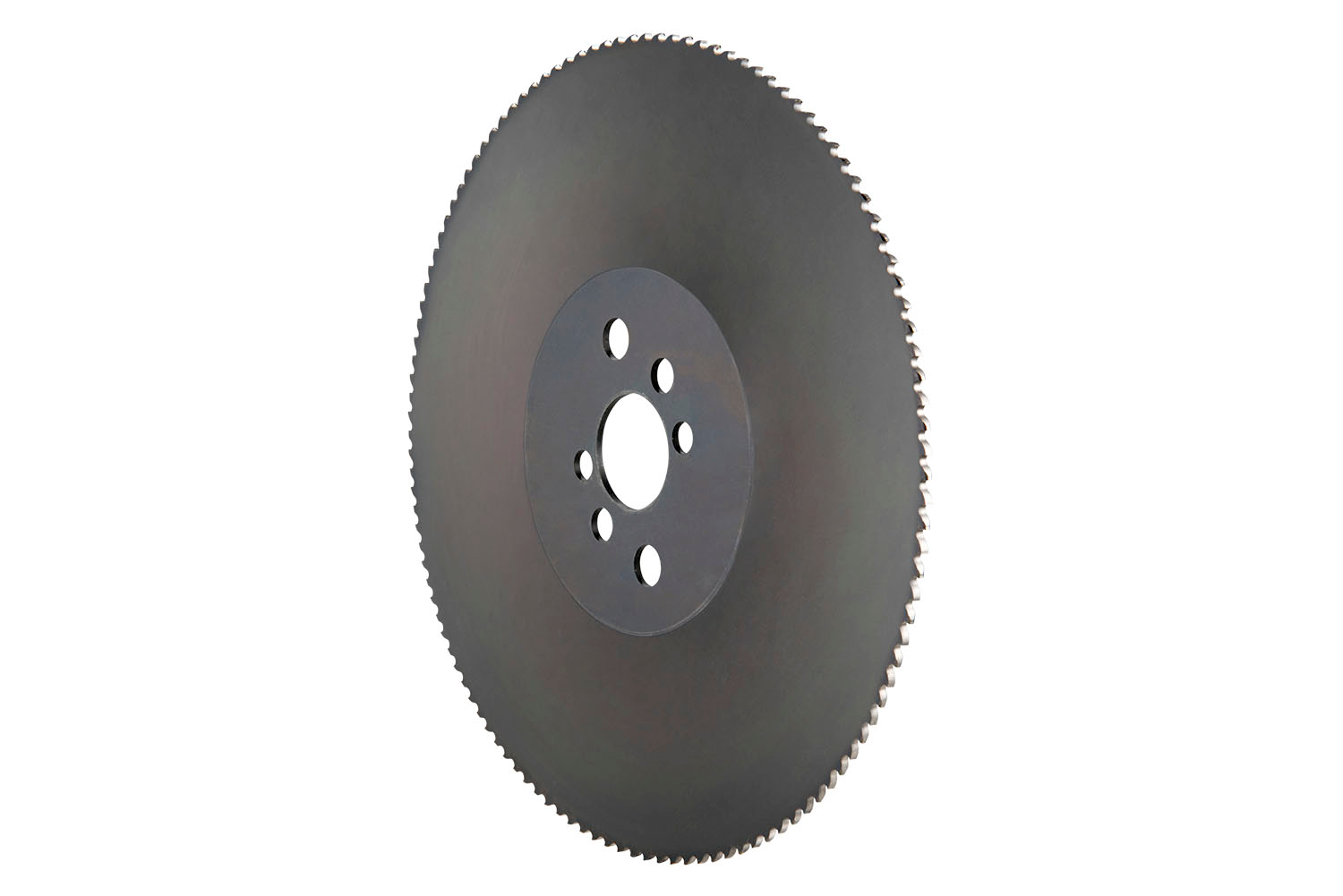

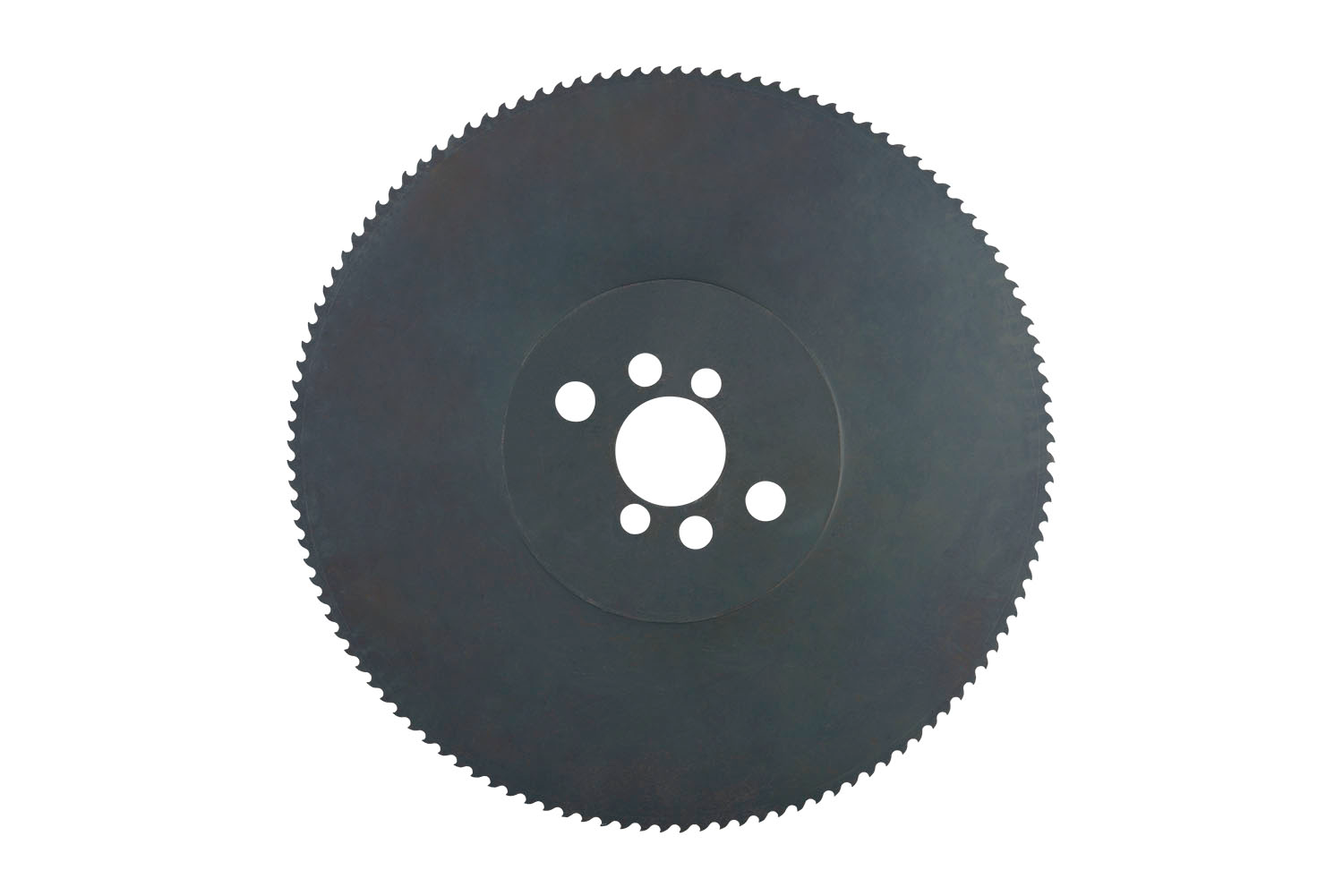

DORMER D753250.0X2.0 HSS Slitting Saws

Product Code: D753250.0X2.0

$316.11$287.37 Ex. GST

Product Code: D753250.0X2.0 SKU D753250.0X2.0 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Metal slitting saw with coarse pitch and 100 teeth, diameter 250mm with 2mm width of cut, according to DORMER standard with a 32mm bore and standard driving pin holes, HSS with steam tempered finish, and 18° rake angle for cut-of sawing, shallow slotting and deep slotting in steel and cast steel, cast-iron and non-ferrous metals

Additional information

Weight 0.3069 kg
barcode
Additional Information

Description: Value
EAN number: 7320760285978
Product number (SAP): 86014832
Ordering code ANSI: D753250.0X2.0
Gross weight – grams: 799

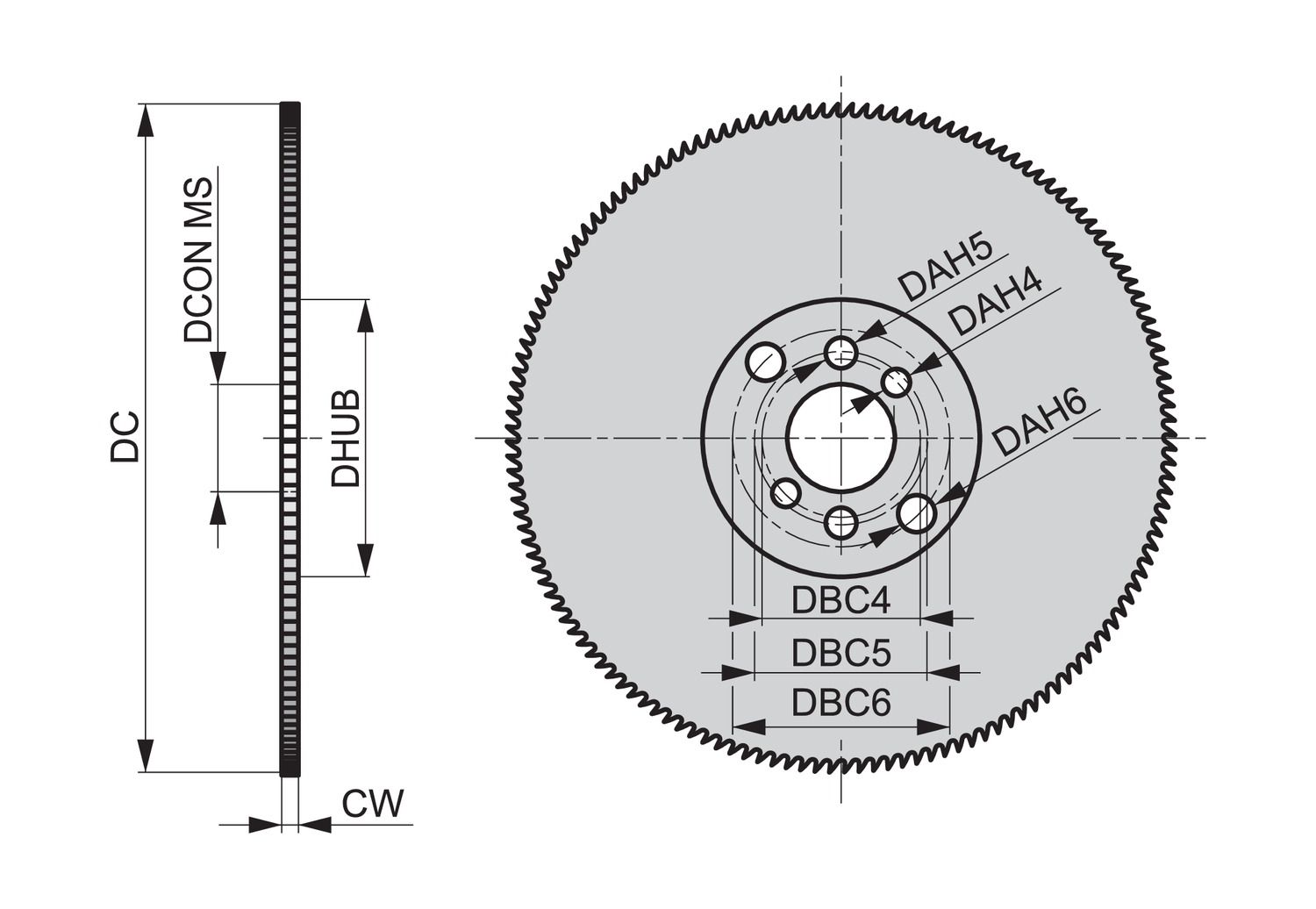

Cutting diameter – millimeter (DC): 250 mm
Cutting width – millimeter (CW): 2 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 100
Pitch of the blade – millimeter: 8 mm
Hub diameter – millimeter (DHUB): 100 mm
Diameter access hole – millimeter (DAH): 8 mm
Diameter bolt circle 4 – millimeter (DBC4): 45 mm
Diameter access hole 2 – millimeter (DAH2): 9 mm
Diameter bolt circle 5 – millimeter (DBC5): 50 mm
Diameter access hole 3 – millimeter (DAH3): 11 mm
Diameter bolt circle 6 – millimeter (DBC6): 63 mm
Radial rake angle (GAMF): 18
ISO: D753250.0X2.0

Brand

DORMER
