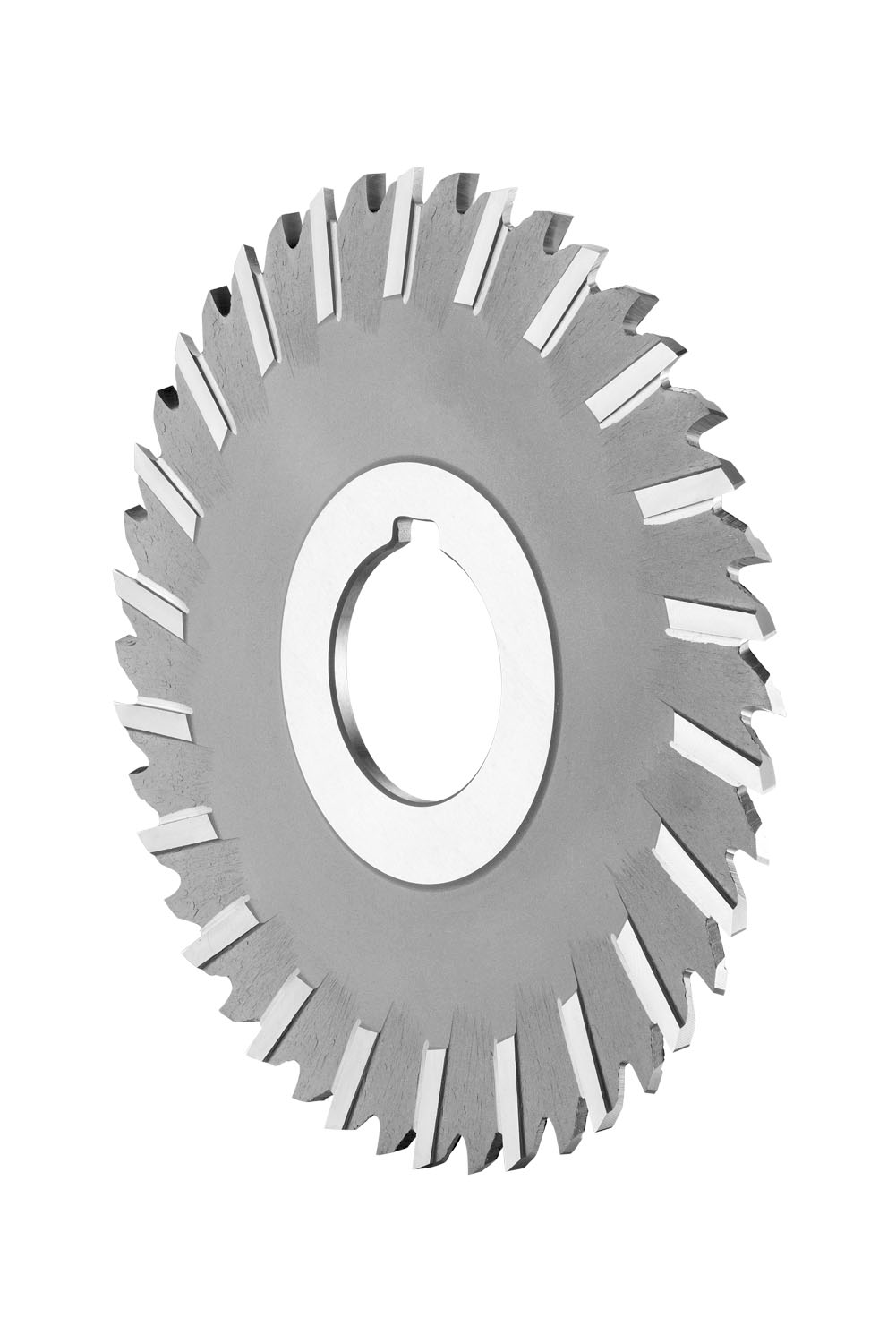

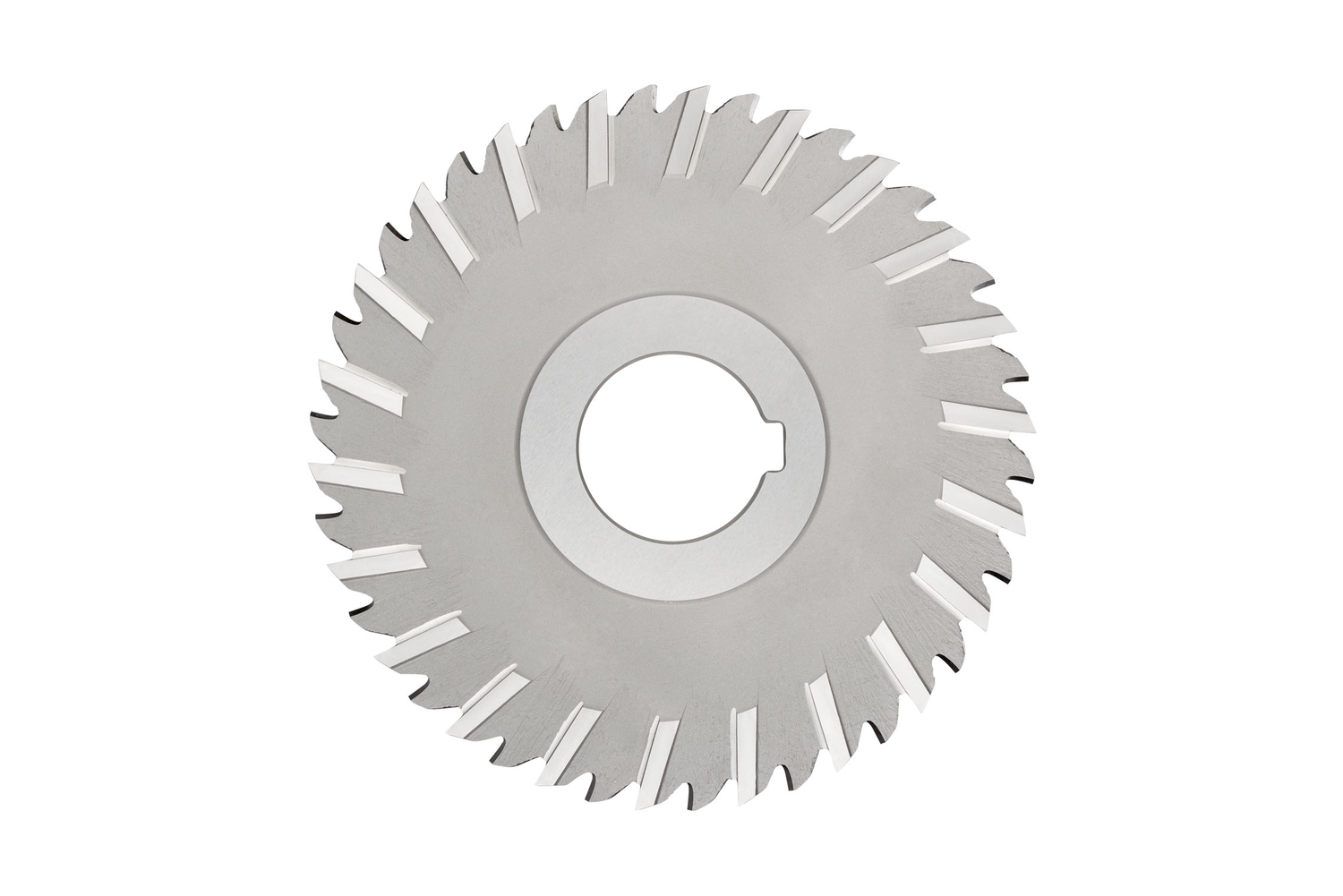

DORMER D763125.0X3.0 HSS Slitting Saws

Product Code: D763125.0X3.0

$804.12$731.02 Ex. GST

Product Code: D763125.0X3.0 SKU D763125.0X3.0 Categories ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Disc mill with 44 teeth, diameter 125mm with 3mm width of cut, according to DIN 885 A standard with a 32mm bore with keyway, cobalt based HSS-E with bright finish, 15° helix and 10° rake angle for cut-of sawing, shallow slotting and deep slotting in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.2600 kg
barcode
Additional Information

Description: Value
EAN number: 7320760078273
Product number (SAP): 86014842
Ordering code ANSI: D763125.0X3.0
Gross weight – grams: 241.8

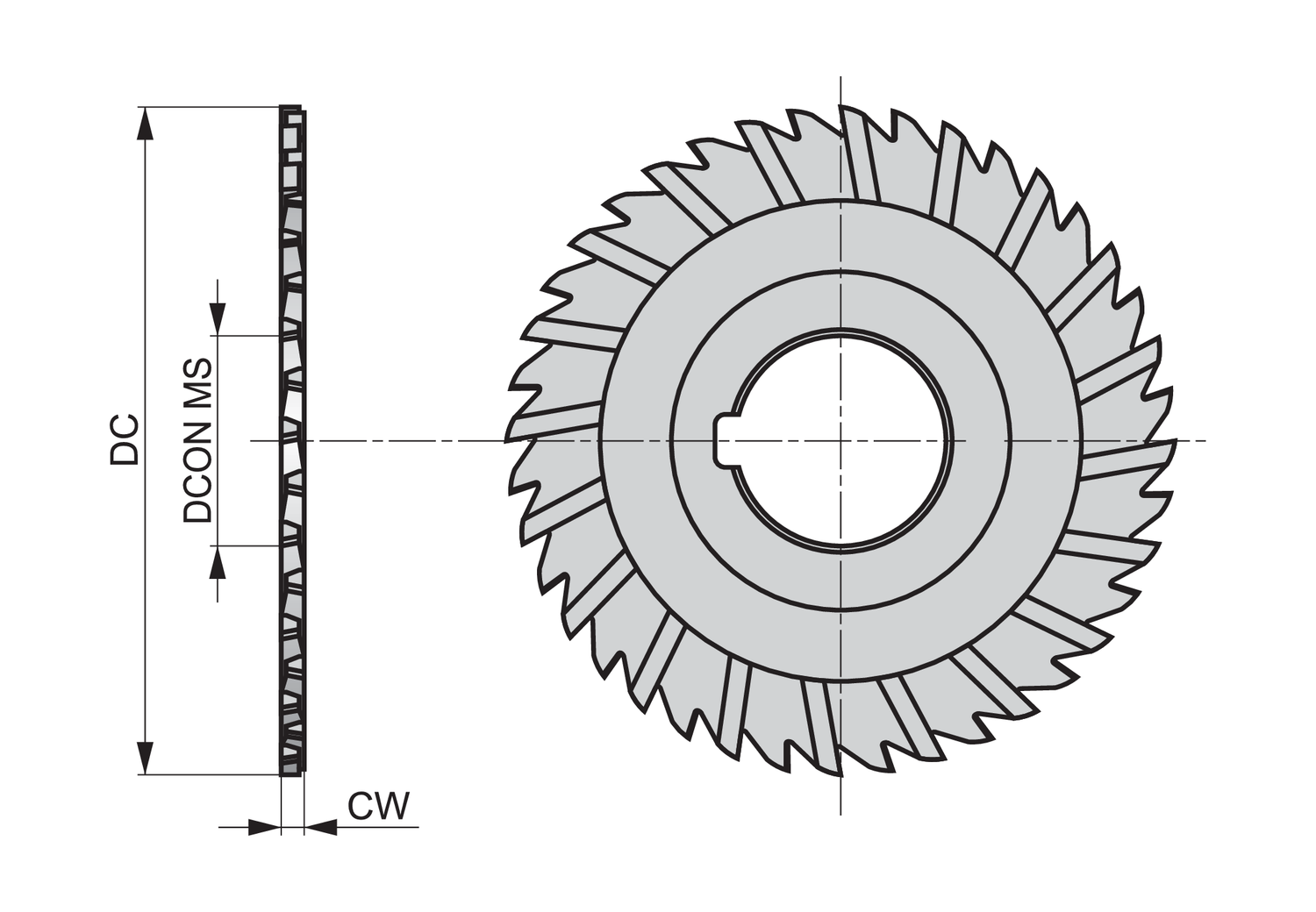

Cutting diameter – millimeter (DC): 125 mm
Cutting width – millimeter (CW): 3 mm
Connection diameter – millimeter (DCON MS): 32 mm
Flute count (NOF): 44
Radial rake angle (GAMF): 10
ISO: D763125.0X3.0

Brand

Dormer Pramet
