DORMER D76363.0X1.6 HSS Slitting Saws

Product Code: D76363.0X1.6

$540.44$491.31 Ex. GST

Product Code: D76363.0X1.6 SKU D76363.0X1.6 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

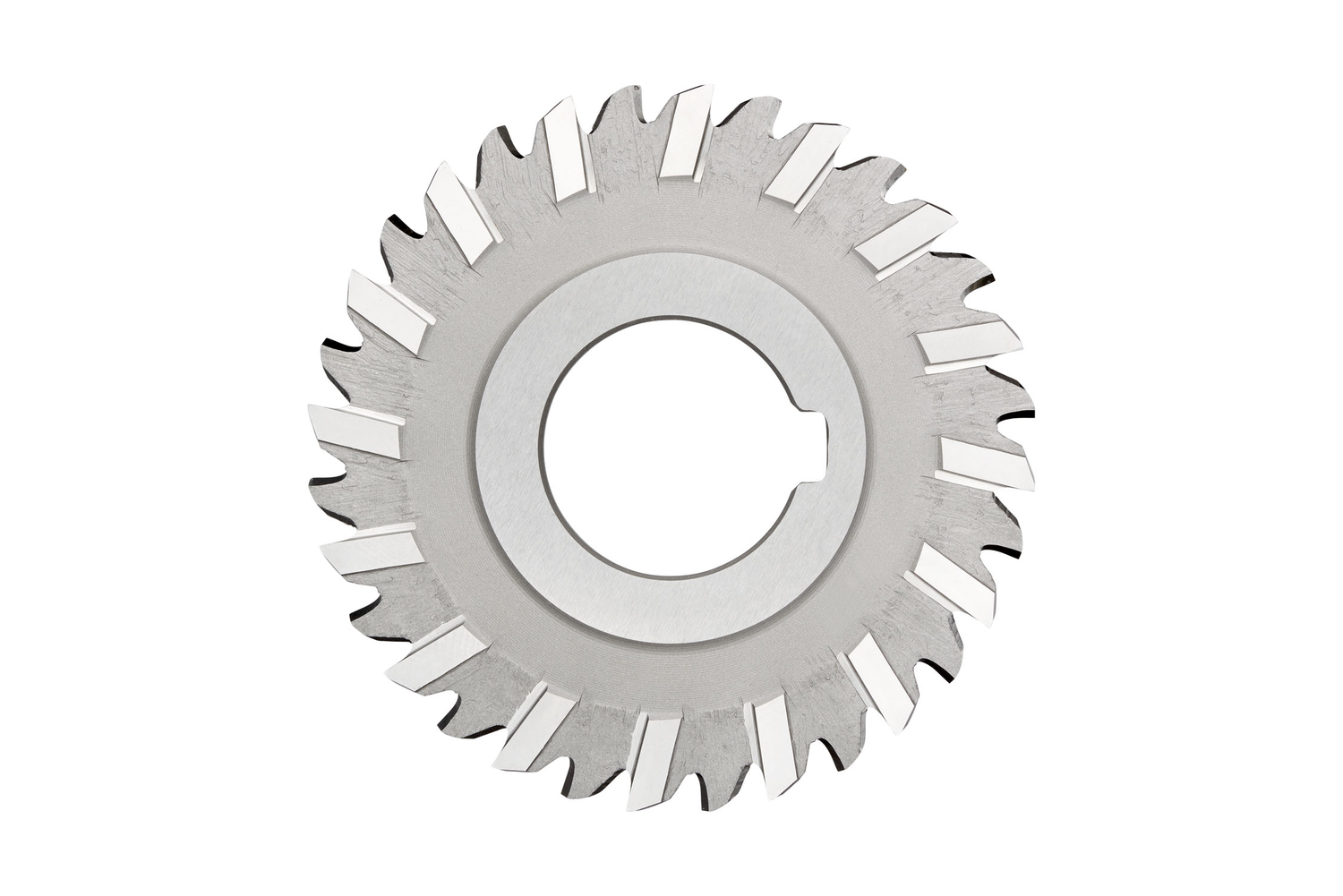

Disc mill with 32 teeth, diameter 63mm with 1.6mm width of cut, according to DIN 885 A standard with a 22mm bore with keyway, cobalt based HSS-E with bright finish, 15° helix and 10° rake angle for cut-of sawing, shallow slotting and deep slotting in steel and cast steel, stainless steel, cast-iron, non-ferrous metals and high-temperature alloys

Additional information

Weight 0.5247 kg
barcode
Additional Information

Description: Value
EAN number: 7320760078426
Product number (SAP): 86014845
Ordering code ANSI: D76363.0X1.6
Gross weight – grams: 44.5

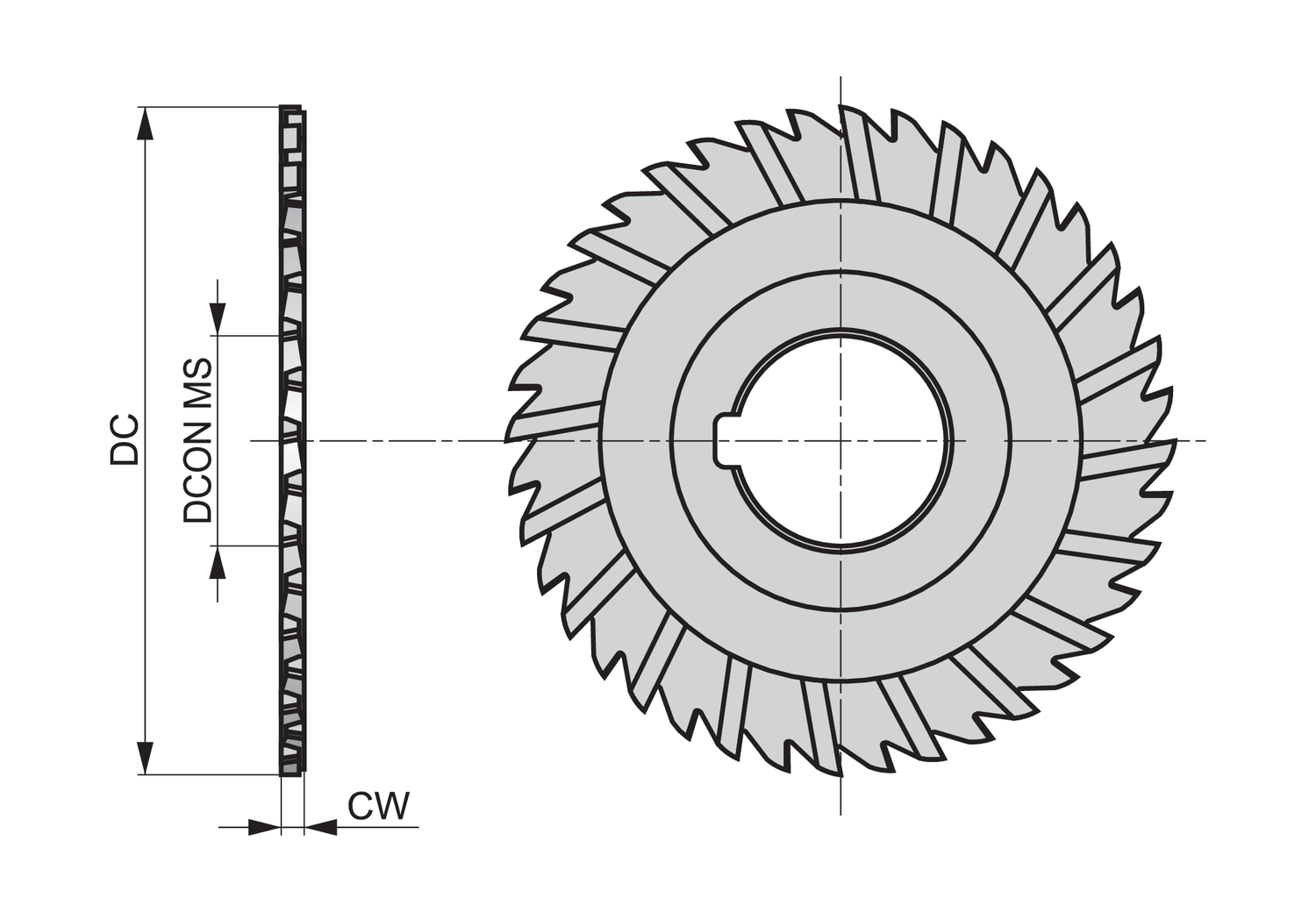

Cutting diameter – millimeter (DC): 63 mm
Cutting width – millimeter (CW): 1.6 mm
Connection diameter – millimeter (DCON MS): 22 mm
Flute count (NOF): 32
Radial rake angle (GAMF): 10
ISO: D76363.0X1.6

Brand

DORMER
