DORMER E000M12

Description

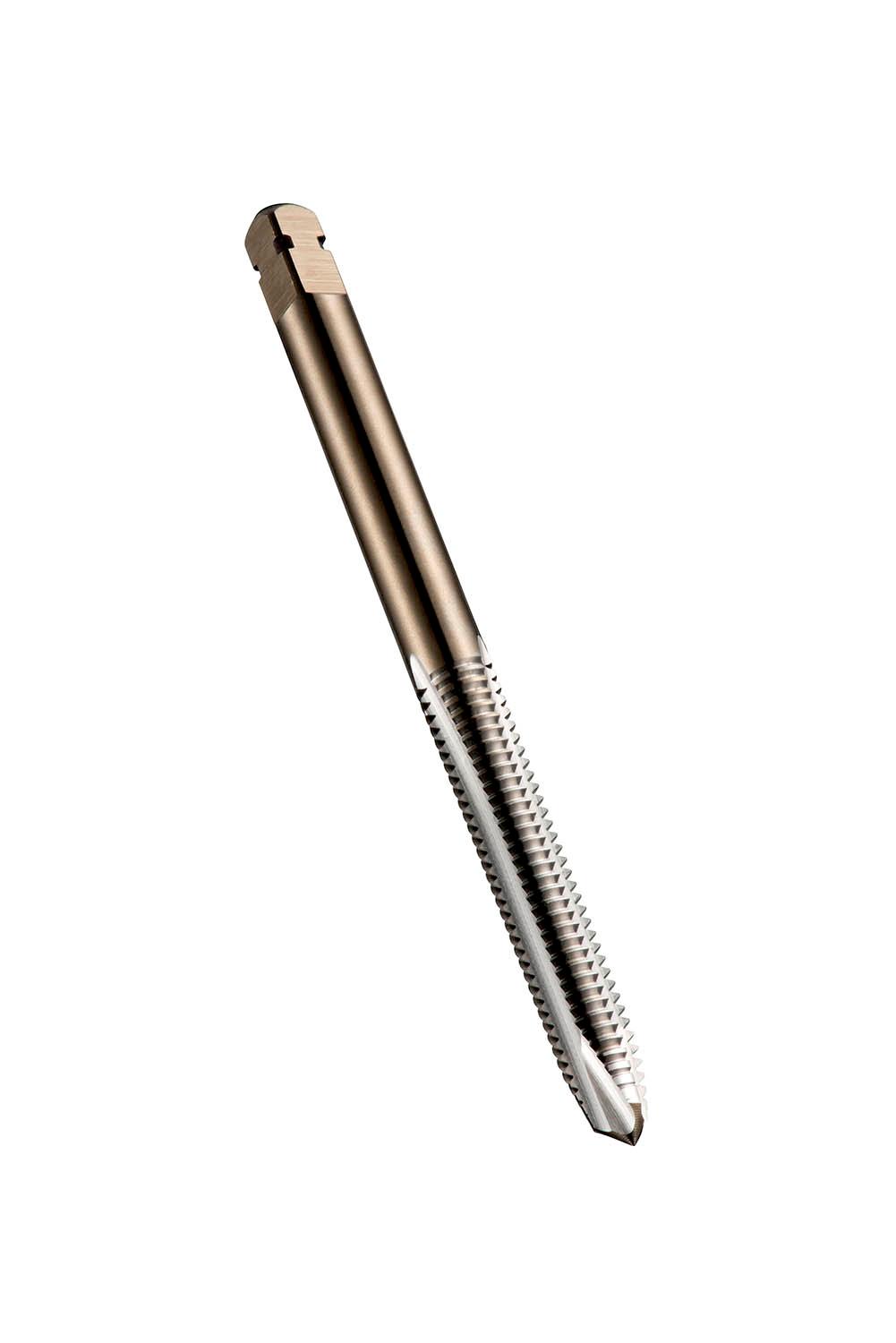

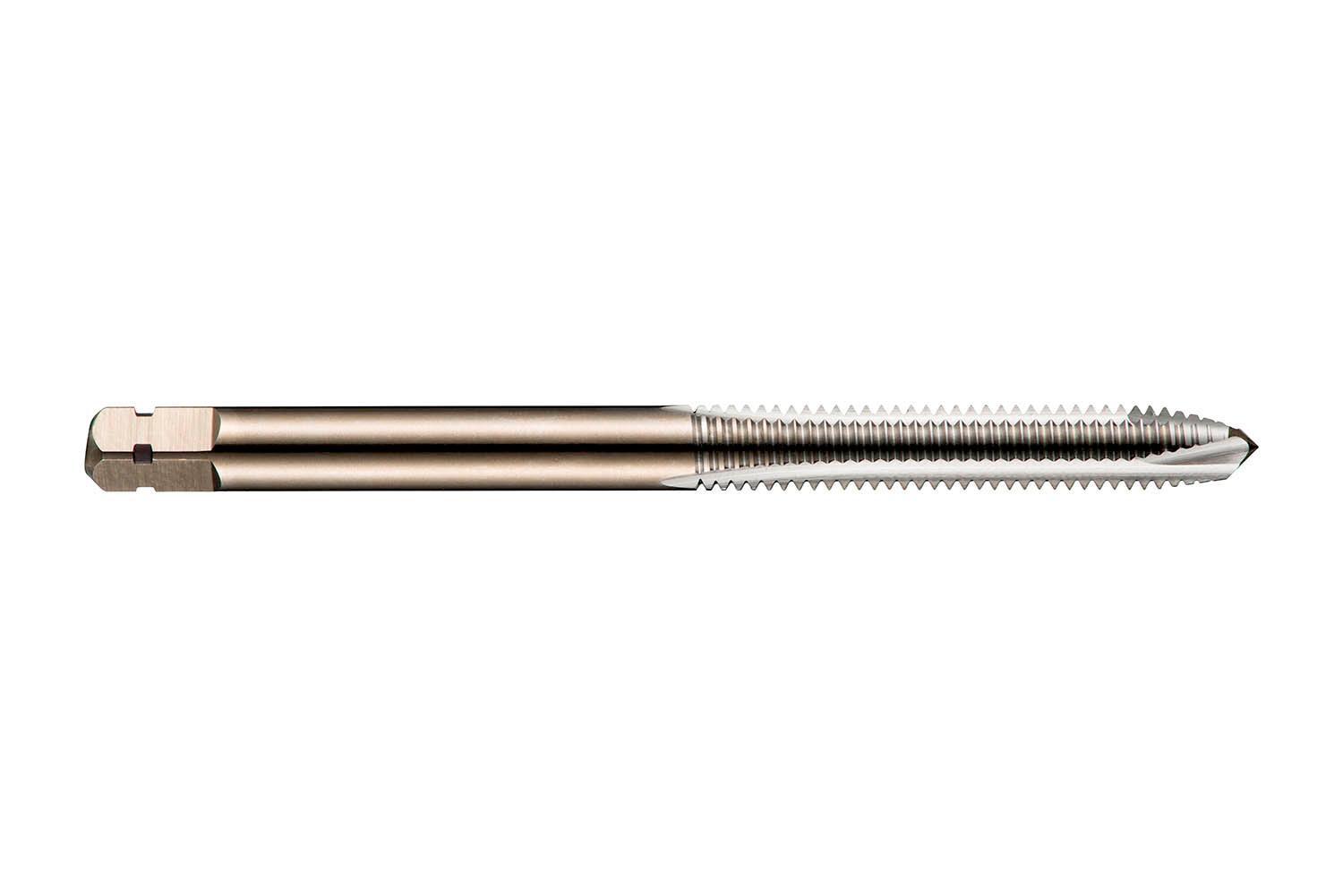

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight	0.0853 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E000M12 Product number (SAP): 86014856 EAN number: 7320760567654 Thread diameter size (TDZ): 12 Thread pitch – millimeter (TP): 1.75 mm Overall length – millimeter (OAL): 89 mm Overall length – inch (OAL): 3.5039 inch Threading length – millimeter (THL): 22 mm Threading length – inch (THL): 0.8661 inch Connection diameter – inch (DCON MS): 0.3543 inch Connection diameter – millimeter (DCON MS): 9 mm Flute count (NOF): 3 Tolerance limit: D6 Clamping width – inch (WSC): 0.2795 inch Clamping width – millimeter (WSC): 7.1 mm Clamping Length – inch (LCS): 0.3937 inch Clamping Length – millimeter (LSC): 10 mm Premachined hole diameter – inch (PHD): 0.4055 inch Premachined hole diameter – millimeter (PHD): 10.3 mm Gross weight – grams: 51.9 ISO: E000M12 Ordering code ANSI: E000M12

Need Technical Advice?

Description

Additional information

Brand

DORMER
