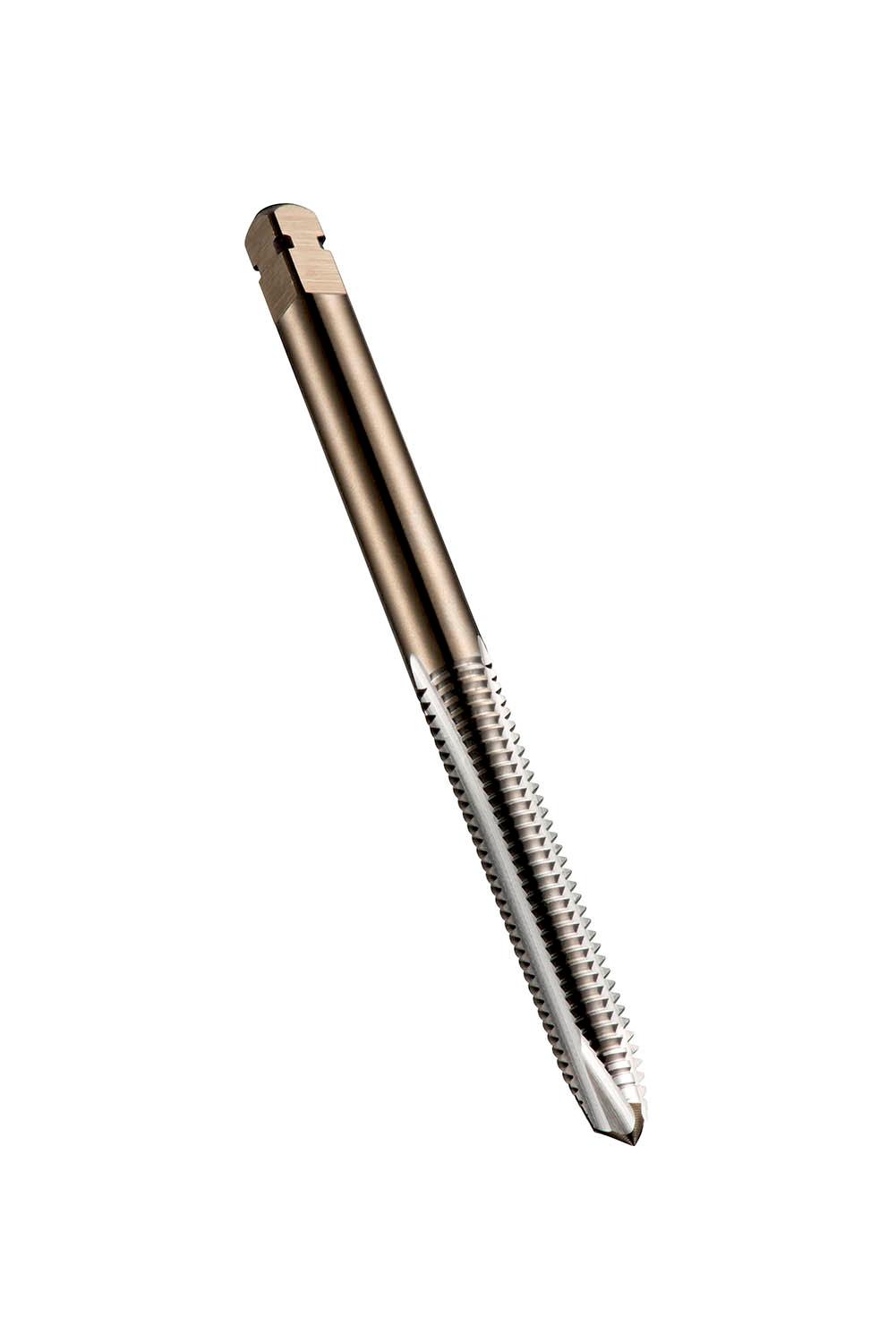

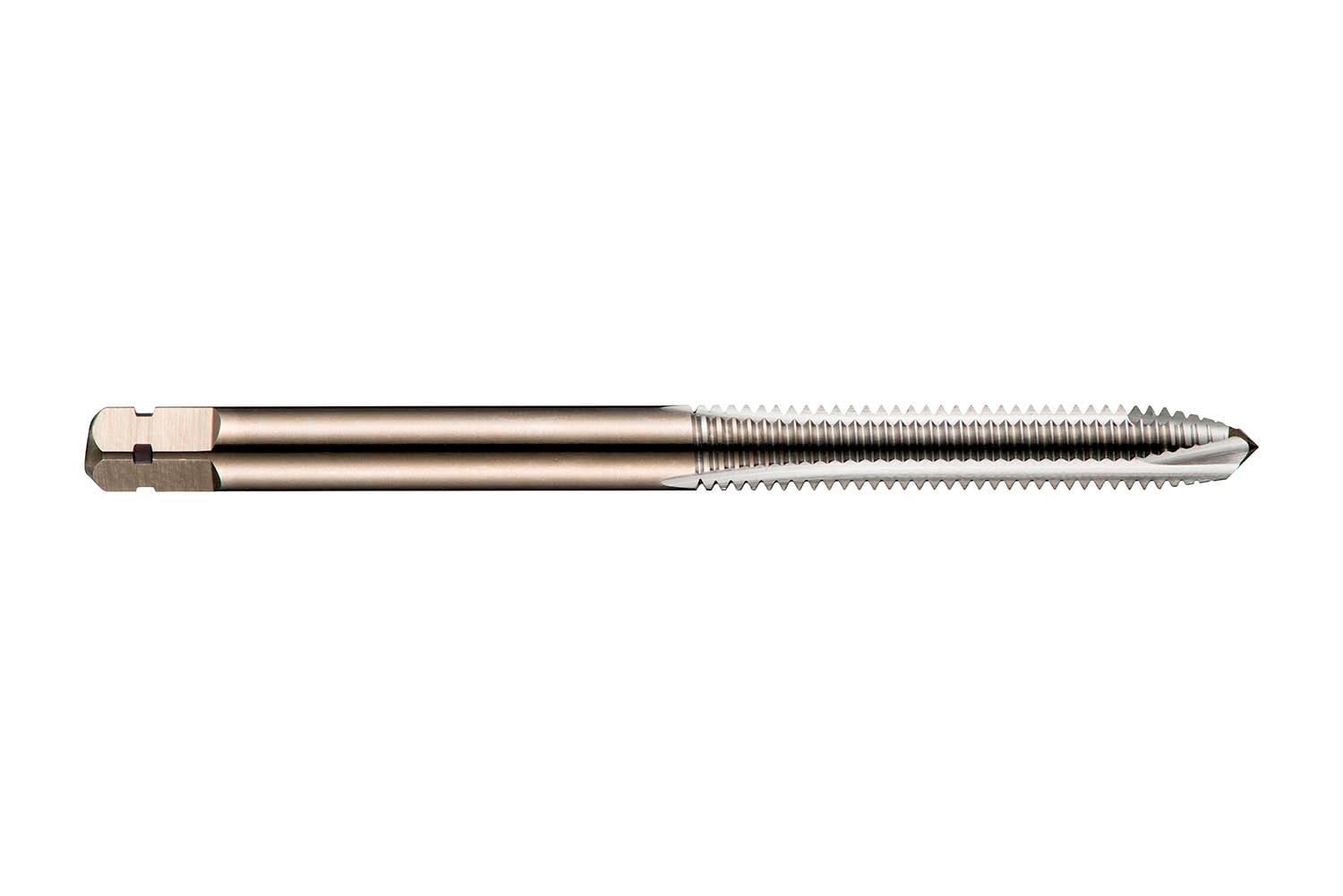

DORMER E000M14

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 11.2mm shank and 9.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight	0.1188 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E000M14 Product number (SAP): 86014857 EAN number: 7320760567661 Thread diameter size (TDZ): 14 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 95 mm Overall length – inch (OAL): 3.7402 inch Threading length – millimeter (THL): 24 mm Threading length – inch (THL): 0.9449 inch Connection diameter – inch (DCON MS): 0.4409 inch Connection diameter – millimeter (DCON MS): 11.2 mm Flute count (NOF): 3 Tolerance limit: D7 Clamping width – inch (WSC): 0.3543 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.4724 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.4724 inch Premachined hole diameter – millimeter (PHD): 12 mm Gross weight – grams: 72.9 ISO: E000M14 Ordering code ANSI: E000M14
