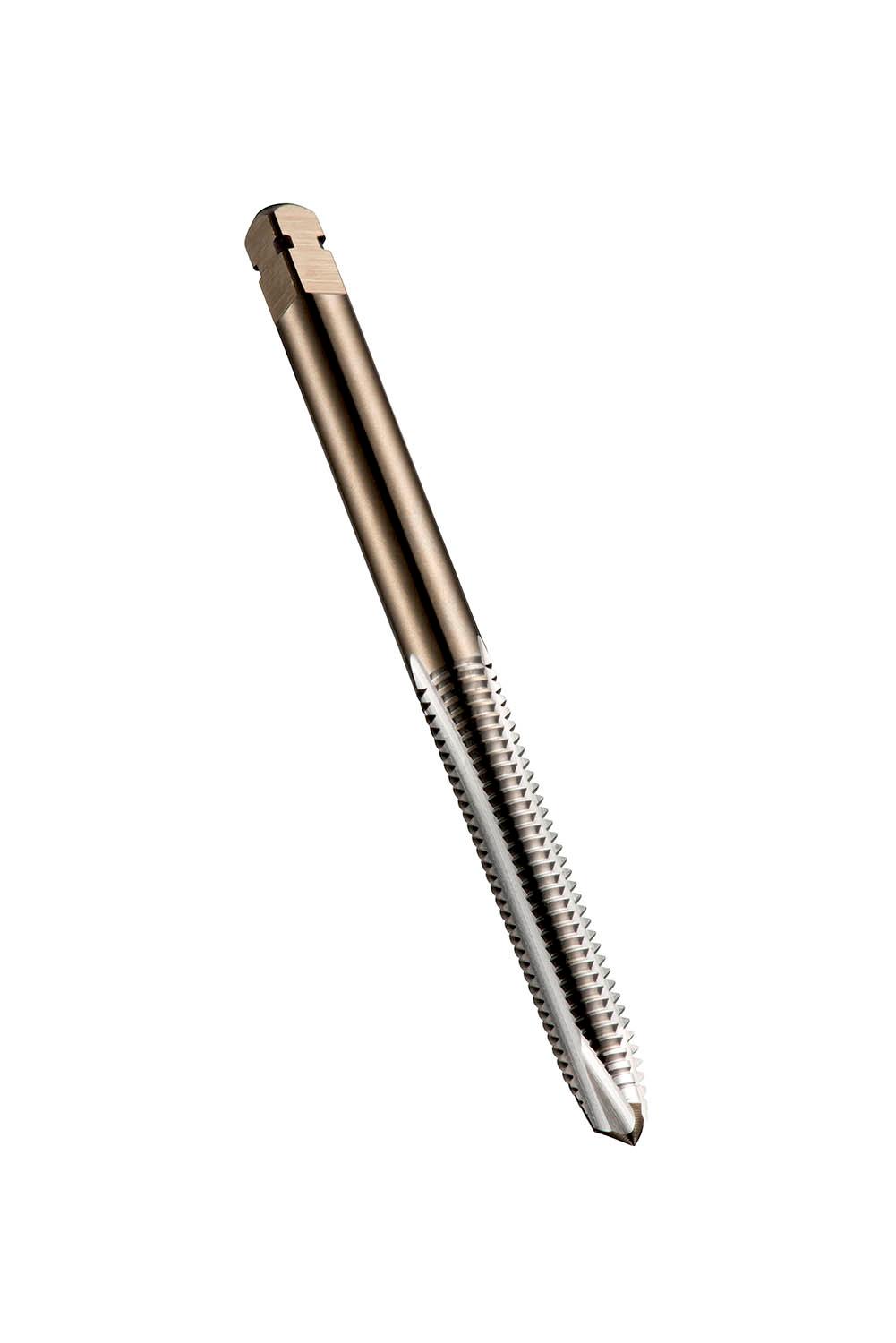

DORMER E000M5

Description

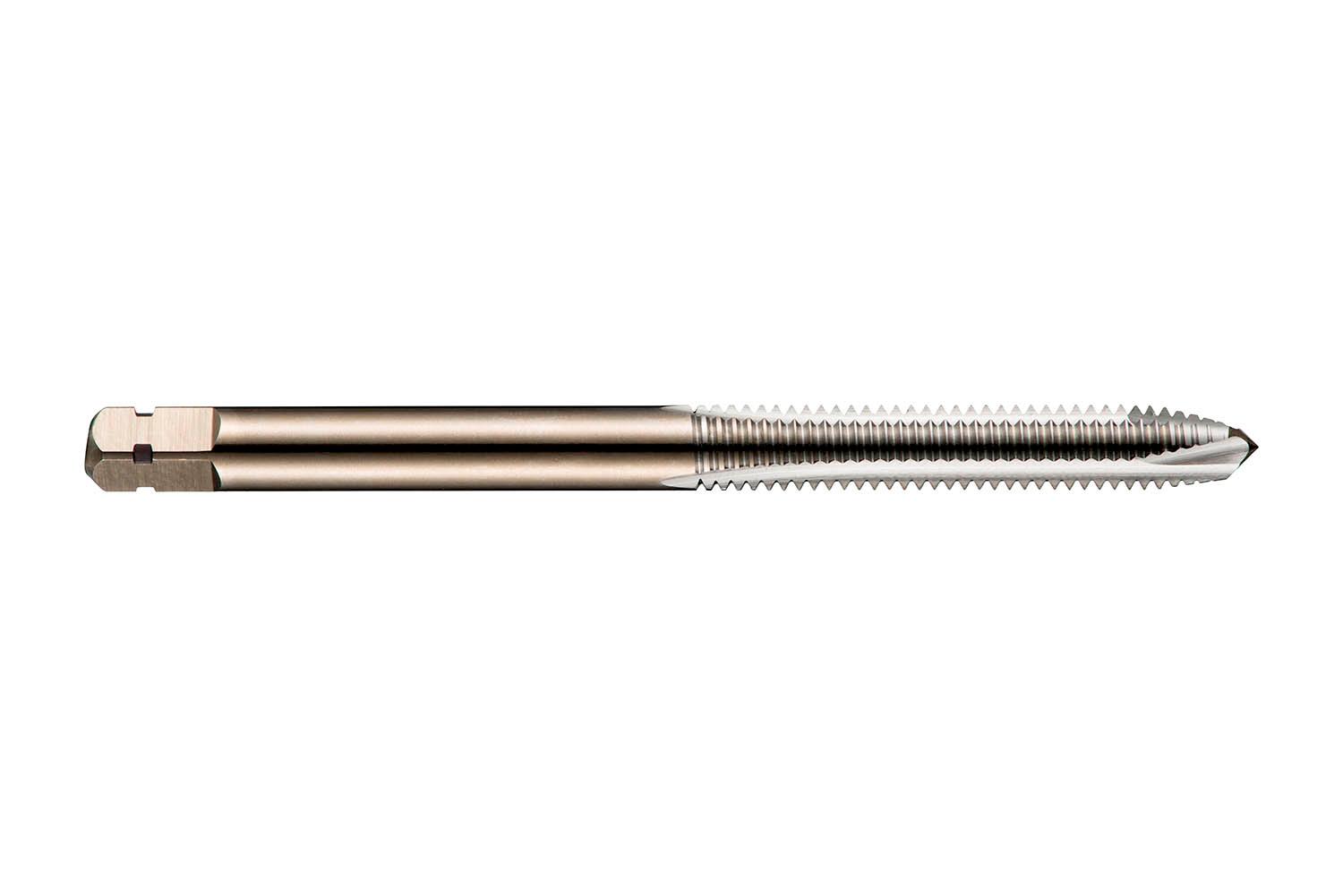

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight	0.0476 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E000M5 Product number (SAP): 86014868 EAN number: 7320760567616 Thread diameter size (TDZ): 5 Thread pitch – millimeter (TP): 0.8 mm Overall length – millimeter (OAL): 58 mm Overall length – inch (OAL): 2.2835 inch Threading length – millimeter (THL): 11 mm Threading length – inch (THL): 0.4331 inch Connection diameter – inch (DCON MS): 0.1969 inch Connection diameter – millimeter (DCON MS): 5 mm Flute count (NOF): 3 Tolerance limit: D4 Usable Length – inch (LU): 0.8661 inch Usable Length – millimeter (LU): 22 mm Clamping width – inch (WSC): 0.1575 inch Clamping width – millimeter (WSC): 4 mm Clamping Length – inch (LCS): 0.2756 inch Clamping Length – millimeter (LSC): 7 mm Premachined hole diameter – inch (PHD): 0.1654 inch Premachined hole diameter – millimeter (PHD): 4.2 mm Gross weight – grams: 9.8 ISO: E000M5 Ordering code ANSI: E000M5
