DORMER E000TINM16

Description

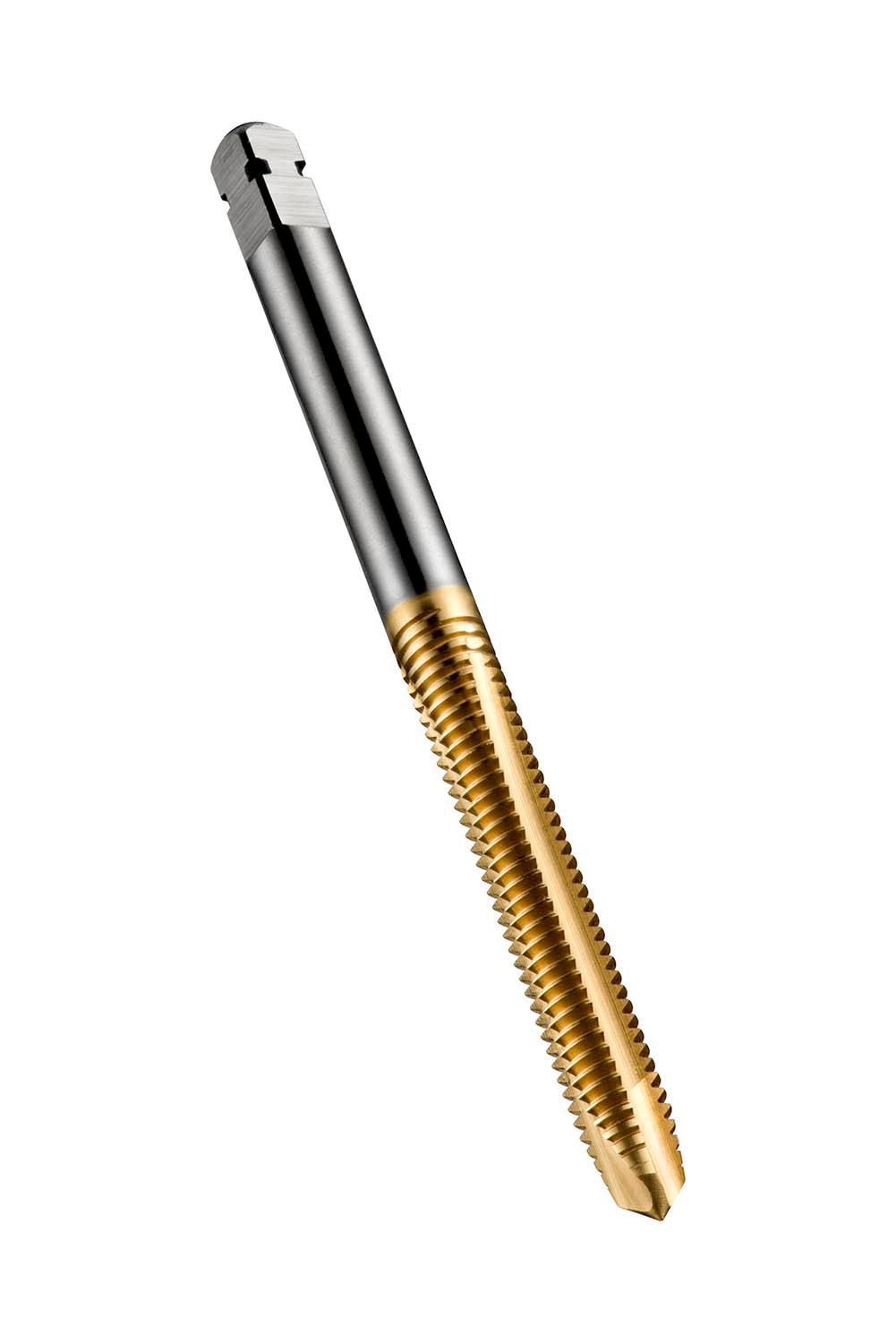

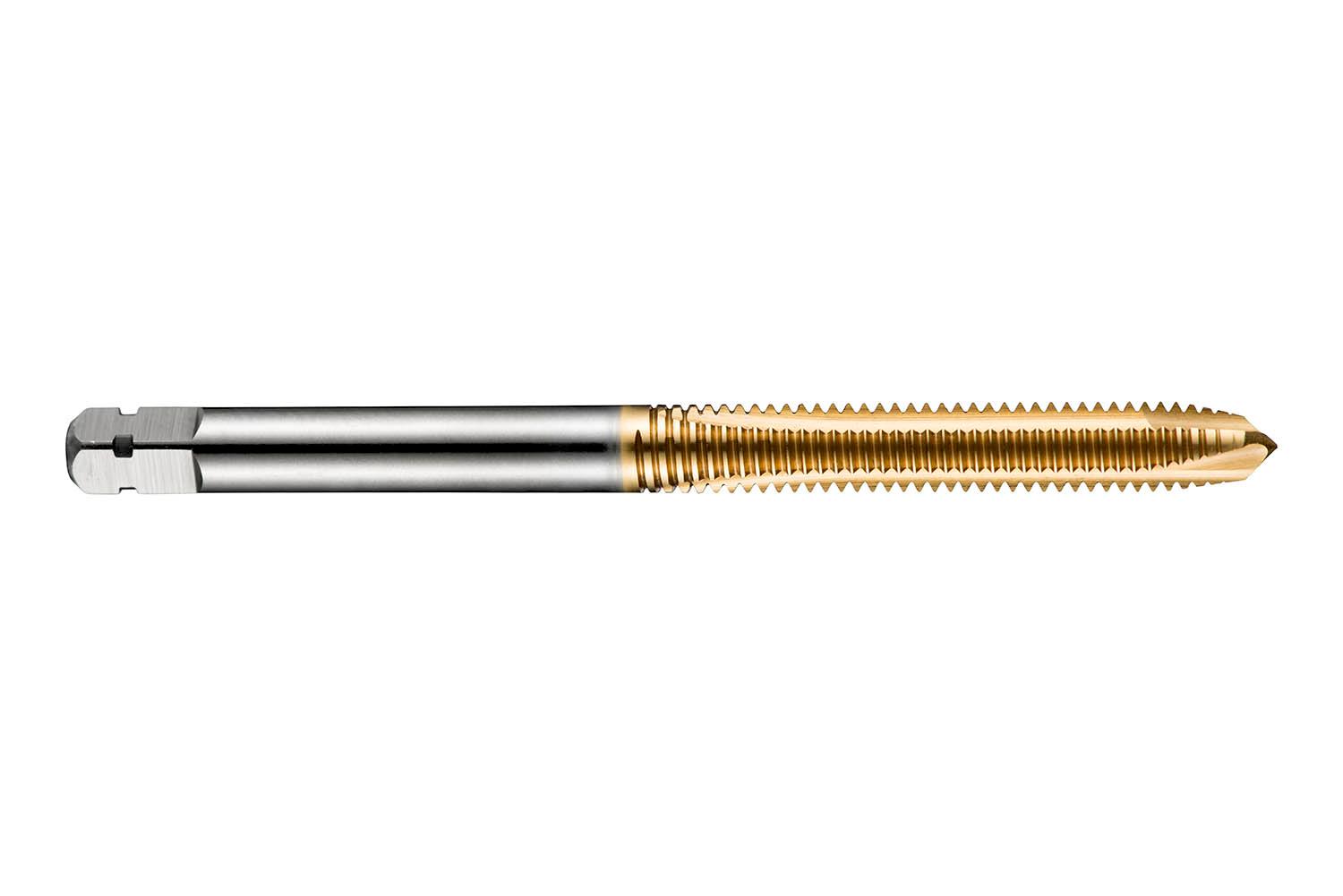

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 12.5mm shank and 10.0mm square drive, powder metallurgical HSS-E with TiN coating for 2.5xD through hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and wrought or cast aluminium and copper or copper alloys

Additional information

Weight	0.1716 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E000TINM16 Product number (SAP): 86014874 EAN number: 7320760662007 Thread diameter size (TDZ): 16 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 102 mm Overall length – inch (OAL): 4.0157 inch Threading length – millimeter (THL): 24 mm Threading length – inch (THL): 0.9449 inch Connection diameter – inch (DCON MS): 0.4921 inch Connection diameter – millimeter (DCON MS): 12.5 mm Flute count (NOF): 3 Tolerance limit: D7 Clamping width – inch (WSC): 0.3937 inch Clamping width – millimeter (WSC): 10 mm Clamping Length – inch (LCS): 0.5118 inch Clamping Length – millimeter (LSC): 13 mm Premachined hole diameter – inch (PHD): 0.5512 inch Premachined hole diameter – millimeter (PHD): 14 mm Gross weight – grams: 99.7 ISO: E000TINM16 Ordering code ANSI: E000TINM16

Need Technical Advice?

Description

Additional information

Brand

DORMER
