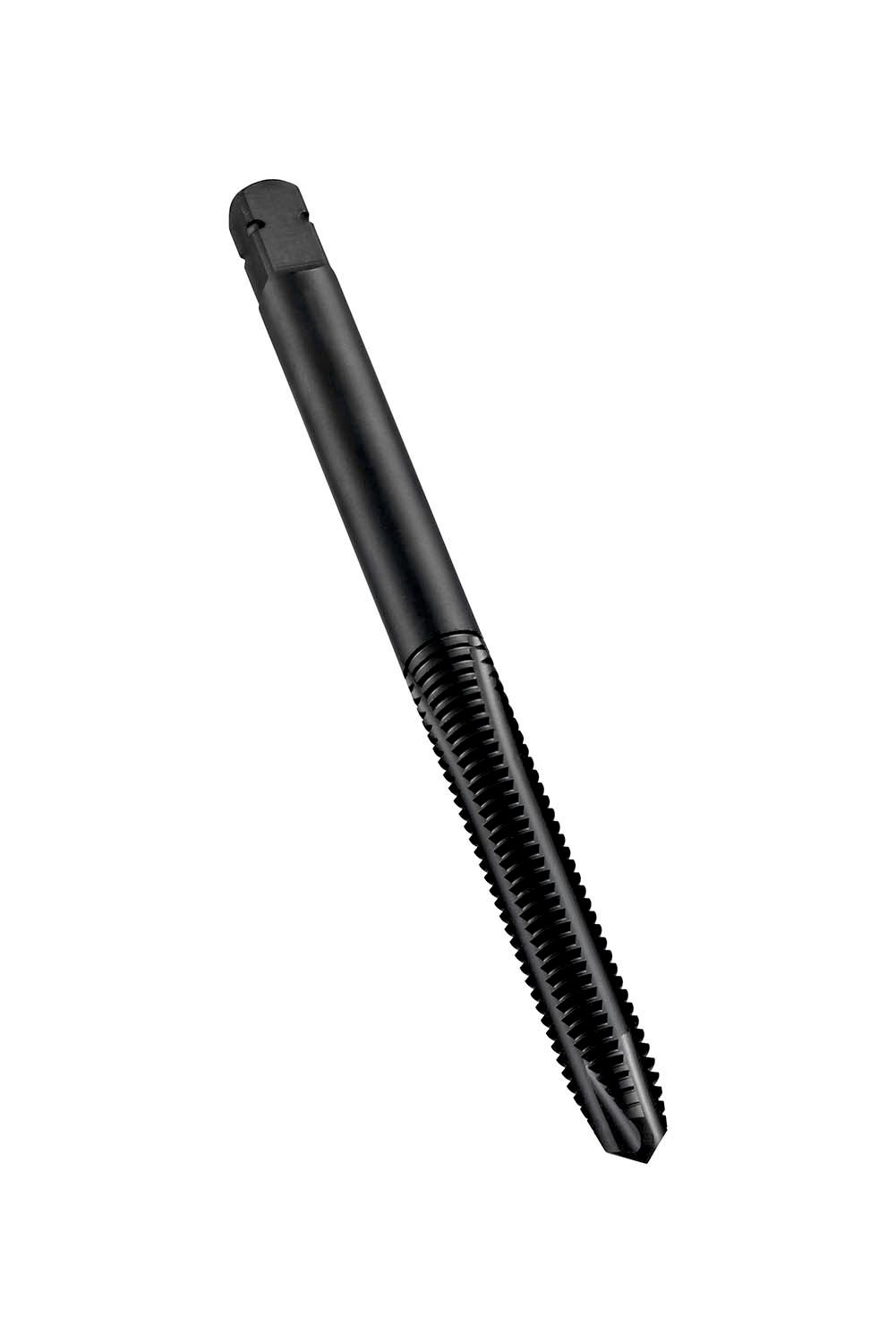

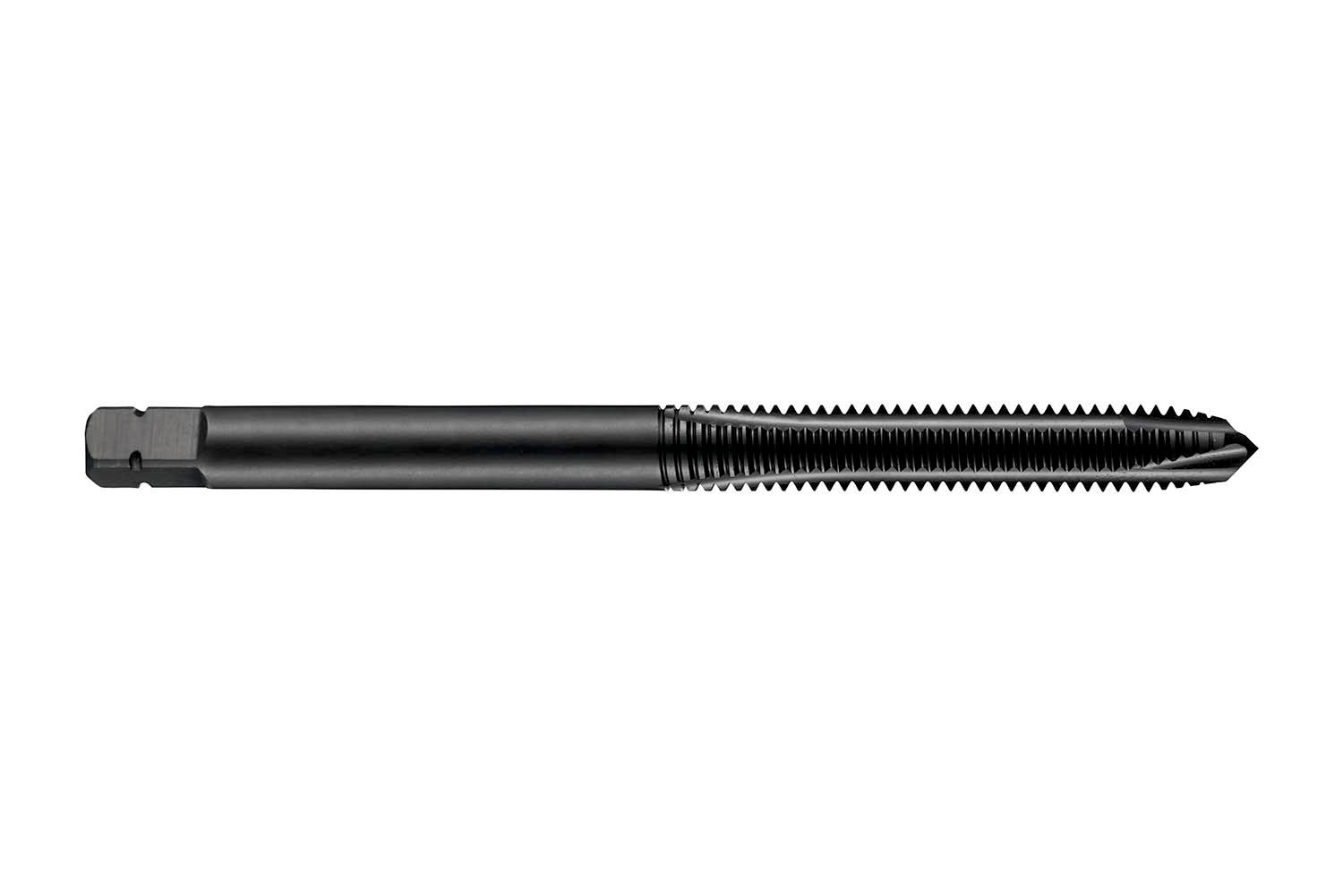

DORMER E001M14

Description

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M14 with 2.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 11.2mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications

Additional information

Weight	0.1188 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E001M14 Product number (SAP): 86014884 EAN number: 7320760567807 Thread diameter size (TDZ): 14 Thread pitch – millimeter (TP): 2 mm Overall length – millimeter (OAL): 95 mm Overall length – inch (OAL): 3.7402 inch Threading length – millimeter (THL): 24 mm Threading length – inch (THL): 0.9449 inch Connection diameter – inch (DCON MS): 0.4409 inch Connection diameter – millimeter (DCON MS): 11.2 mm Flute count (NOF): 3 Tolerance limit: D7 Clamping width – inch (WSC): 0.3543 inch Clamping width – millimeter (WSC): 9 mm Clamping Length – inch (LCS): 0.4724 inch Clamping Length – millimeter (LSC): 12 mm Premachined hole diameter – inch (PHD): 0.4724 inch Premachined hole diameter – millimeter (PHD): 12 mm Gross weight – grams: 72.9 ISO: E001M14 Ordering code ANSI: E001M14

Need Technical Advice?

Description

Additional information

Brand

DORMER
