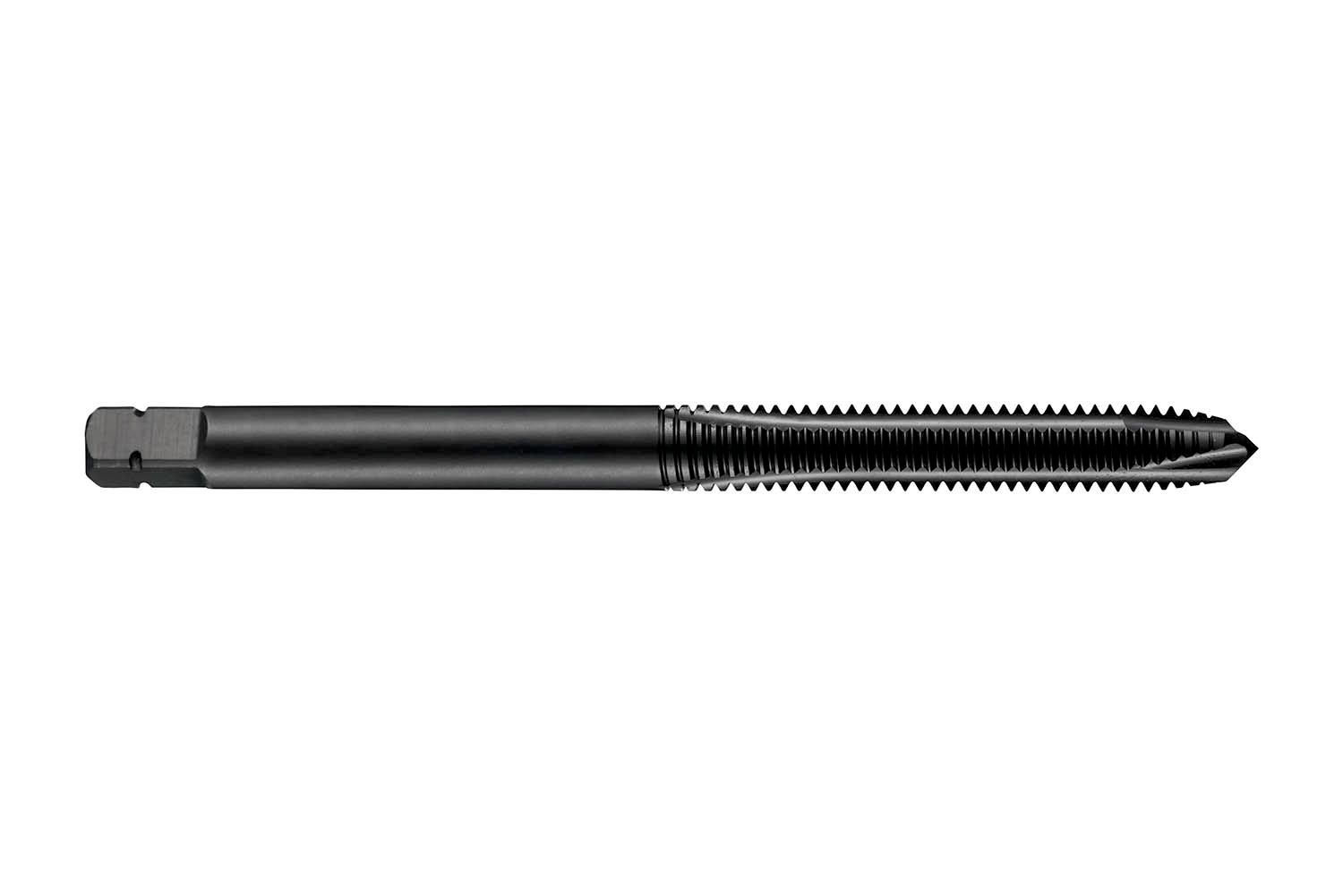

DORMER E001M24

Description: Value
Product name: E001M24
Product number (SAP): 86014891
EAN number: 7320760567852
Thread diameter size (TDZ): 24
Thread pitch – millimeter (TP): 3 mm
Overall length – millimeter (OAL): 130 mm
Overall length – inch (OAL): 5.1181 inch
Threading length – millimeter (THL): 35 mm
Threading length – inch (THL): 1.378 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Tolerance limit: D8
Clamping width – inch (WSC): 0.5512 inch
Clamping width – millimeter (WSC): 14 mm
Clamping Length – inch (LCS): 0.7087 inch
Clamping Length – millimeter (LSC): 18 mm
Premachined hole diameter – inch (PHD): 0.8268 inch
Premachined hole diameter – millimeter (PHD): 21 mm
Gross weight – grams: 268
ISO: E001M24
Ordering code ANSI: E001M24
