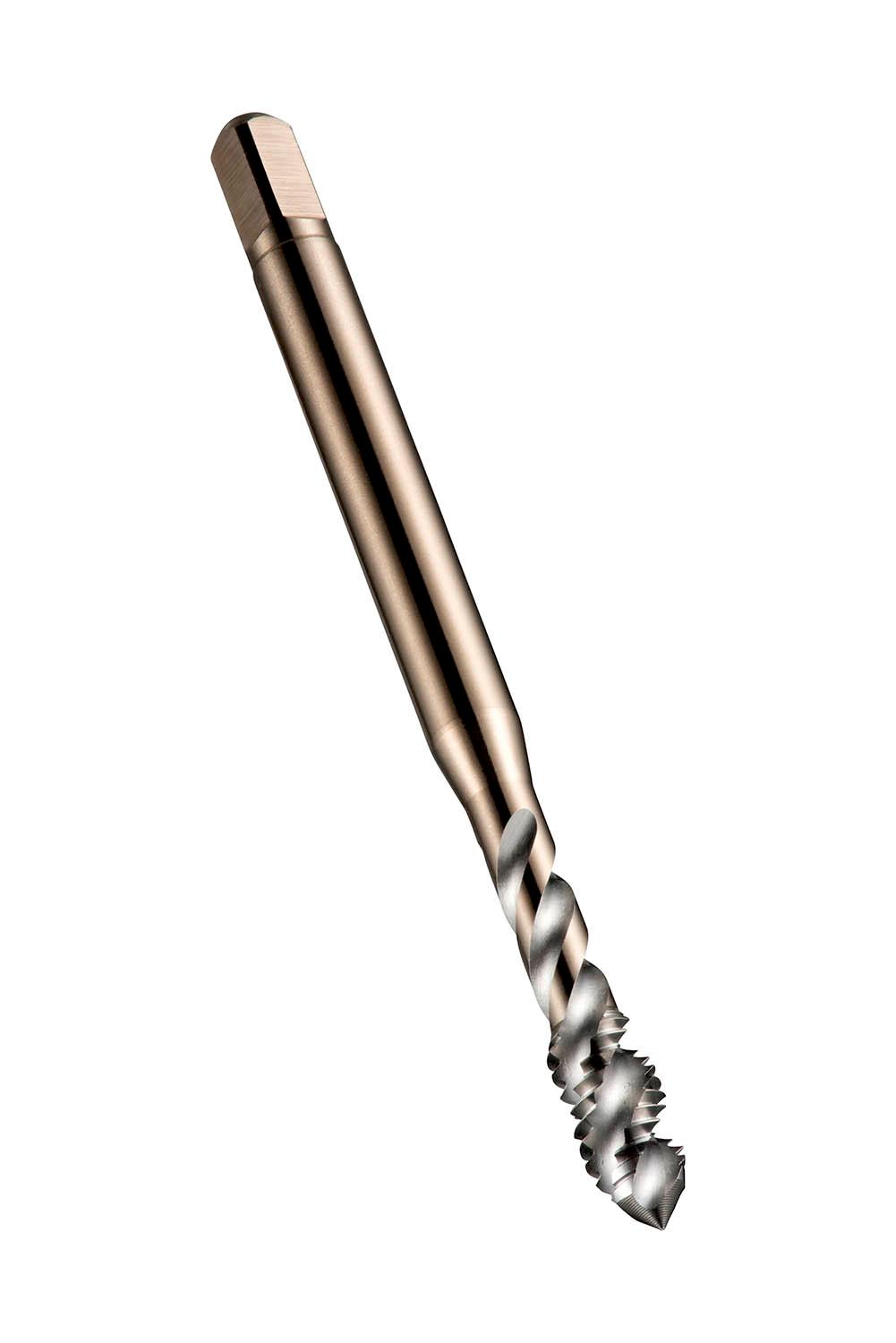

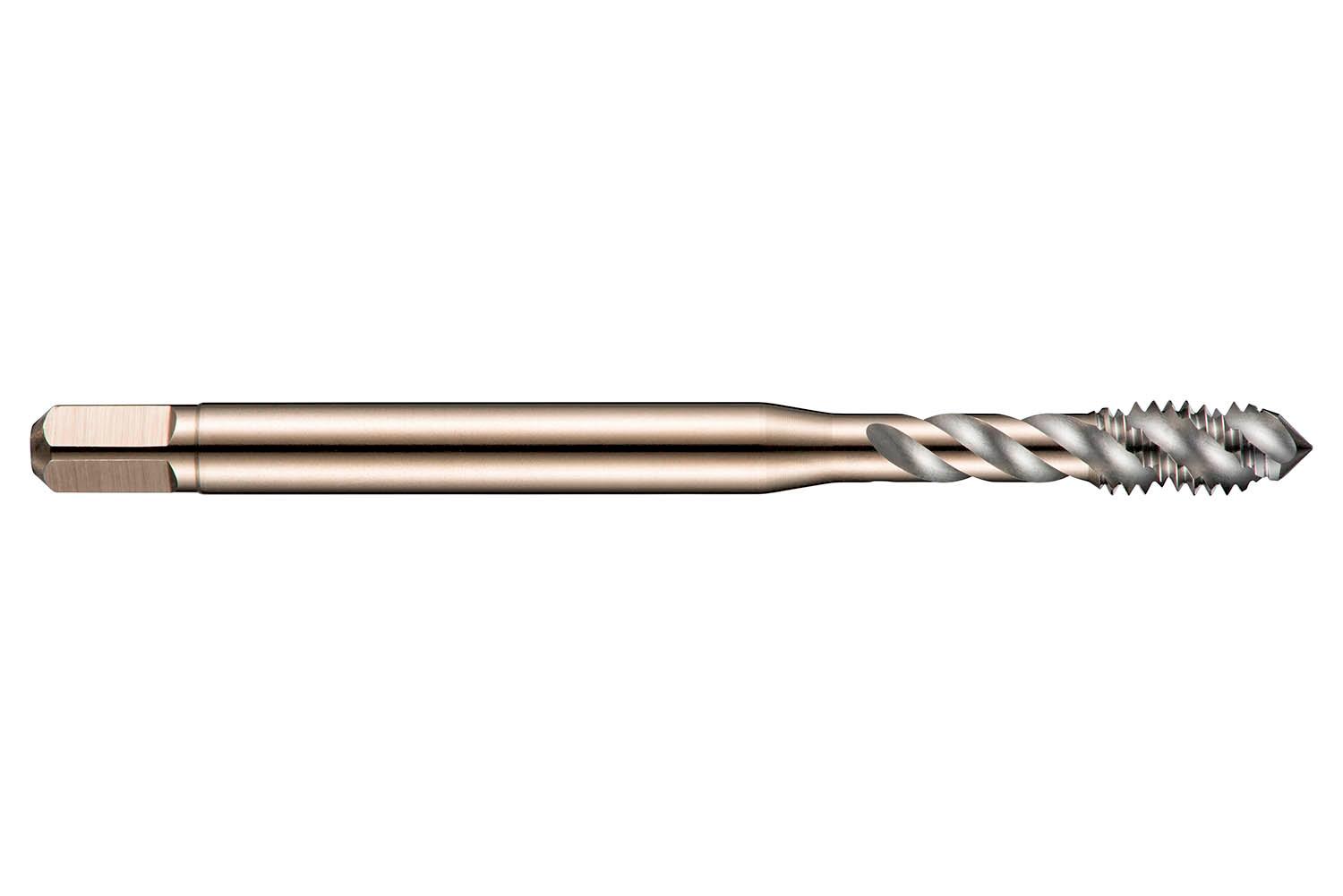

DORMER E002M5

Description: Value
Product name: E002M5
Product number (SAP): 86014912
EAN number: 7320760567890
Thread diameter size (TDZ): 5
Thread pitch – millimeter (TP): 0.8 mm
Overall length – millimeter (OAL): 58 mm
Overall length – inch (OAL): 2.2835 inch
Threading length – millimeter (THL): 8 mm
Threading length – inch (THL): 0.315 inch
Connection diameter – inch (DCON MS): 0.1969 inch
Connection diameter – millimeter (DCON MS): 5 mm
Flute count (NOF): 3
Tolerance limit: D4
Usable Length – inch (LU): 0.8661 inch
Usable Length – millimeter (LU): 22 mm
Clamping width – inch (WSC): 0.1575 inch
Clamping width – millimeter (WSC): 4 mm
Clamping Length – inch (LCS): 0.2756 inch
Clamping Length – millimeter (LSC): 7 mm
Premachined hole diameter – inch (PHD): 0.1654 inch
Premachined hole diameter – millimeter (PHD): 4.2 mm
Gross weight – grams: 10
ISO: E002M5
Ordering code ANSI: E002M5
