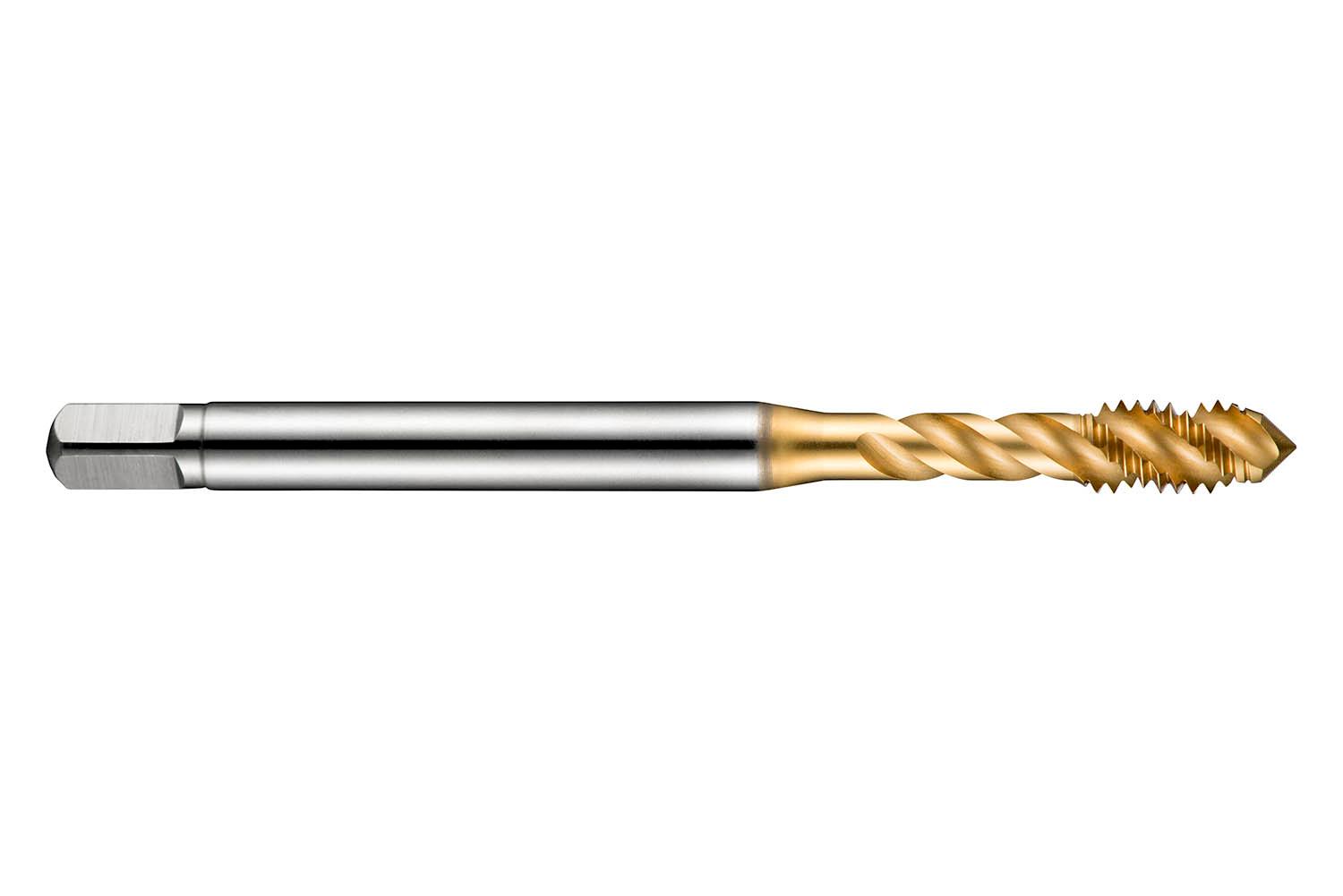

DORMER E002TINM20

Description

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M20 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.2871 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E002TINM20 Product number (SAP): 86014919 EAN number: 7320760662106 Thread diameter size (TDZ): 20 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 112 mm Overall length – inch (OAL): 4.4094 inch Threading length – millimeter (THL): 29 mm Threading length – inch (THL): 1.1417 inch Connection diameter – inch (DCON MS): 0.5512 inch Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Clamping width – inch (WSC): 0.4409 inch Clamping width – millimeter (WSC): 11.2 mm Clamping Length – inch (LCS): 0.5512 inch Clamping Length – millimeter (LSC): 14 mm Premachined hole diameter – inch (PHD): 0.689 inch Premachined hole diameter – millimeter (PHD): 17.5 mm Gross weight – grams: 130 ISO: E002TINM20 Ordering code ANSI: E002TINM20

Need Technical Advice?

Description

Additional information

Brand

DORMER
