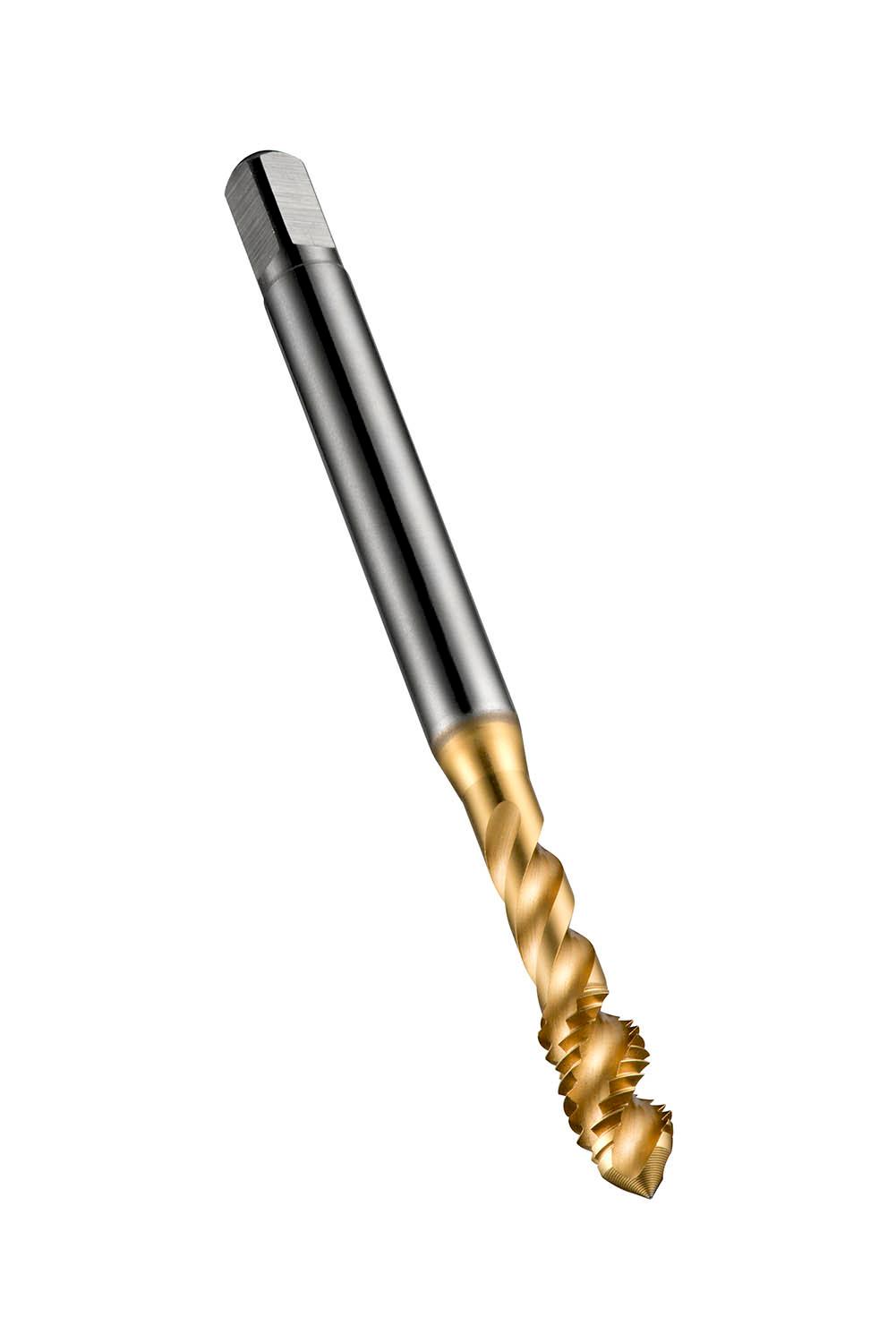

DORMER E002TINM5

Description

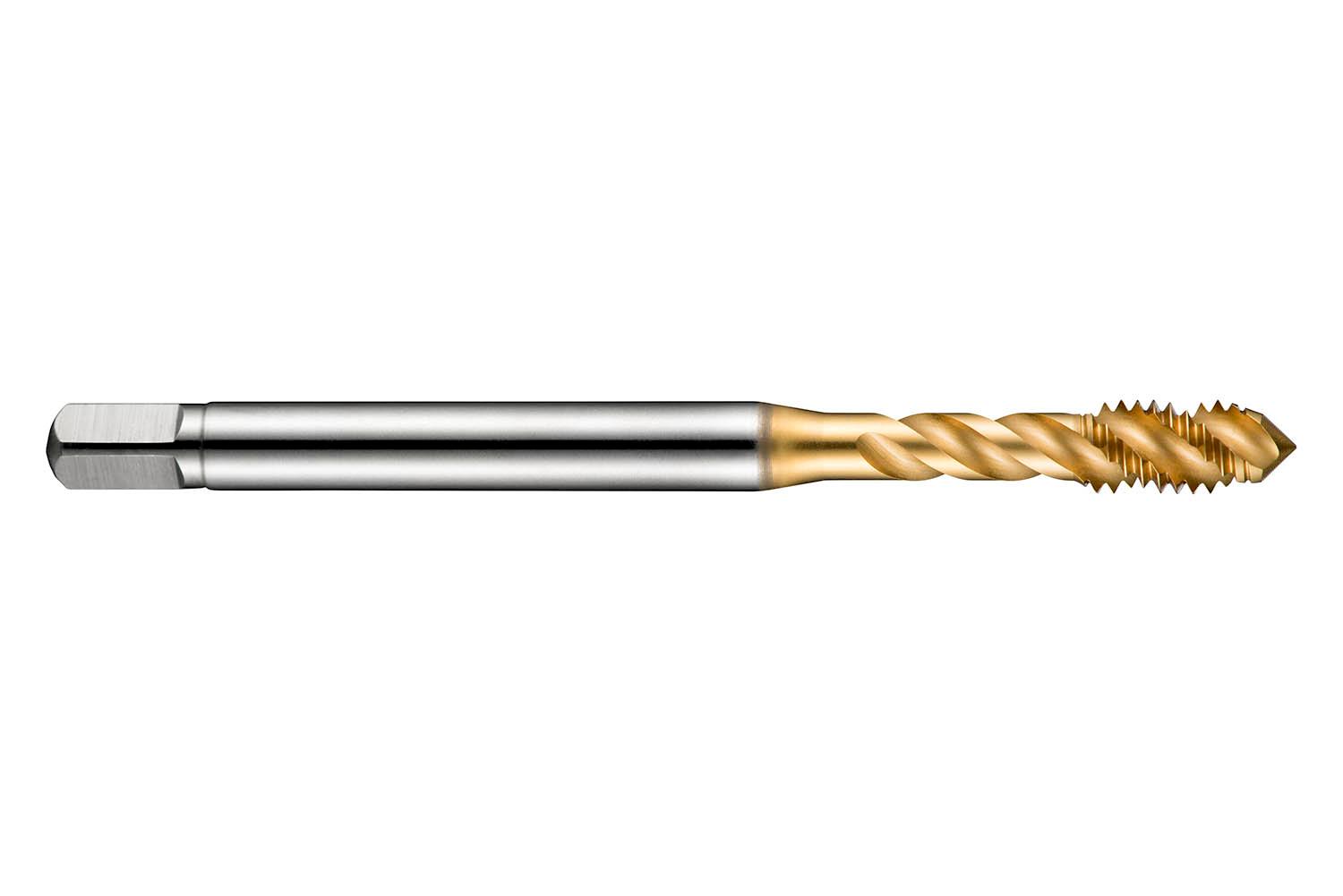

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.0732 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E002TINM5 Product number (SAP): 86014922 EAN number: 7320760662045 Thread diameter size (TDZ): 5 Thread pitch – millimeter (TP): 0.8 mm Overall length – millimeter (OAL): 58 mm Overall length – inch (OAL): 2.2835 inch Threading length – millimeter (THL): 8 mm Threading length – inch (THL): 0.315 inch Connection diameter – inch (DCON MS): 0.1969 inch Connection diameter – millimeter (DCON MS): 5 mm Flute count (NOF): 3 Usable Length – inch (LU): 0.8661 inch Usable Length – millimeter (LU): 22 mm Clamping width – inch (WSC): 0.1575 inch Clamping width – millimeter (WSC): 4 mm Clamping Length – inch (LCS): 0.2756 inch Clamping Length – millimeter (LSC): 7 mm Premachined hole diameter – inch (PHD): 0.1654 inch Premachined hole diameter – millimeter (PHD): 4.2 mm Gross weight – grams: 9.6 ISO: E002TINM5 Ordering code ANSI: E002TINM5

Need Technical Advice?

Description

Additional information

Brand

DORMER
