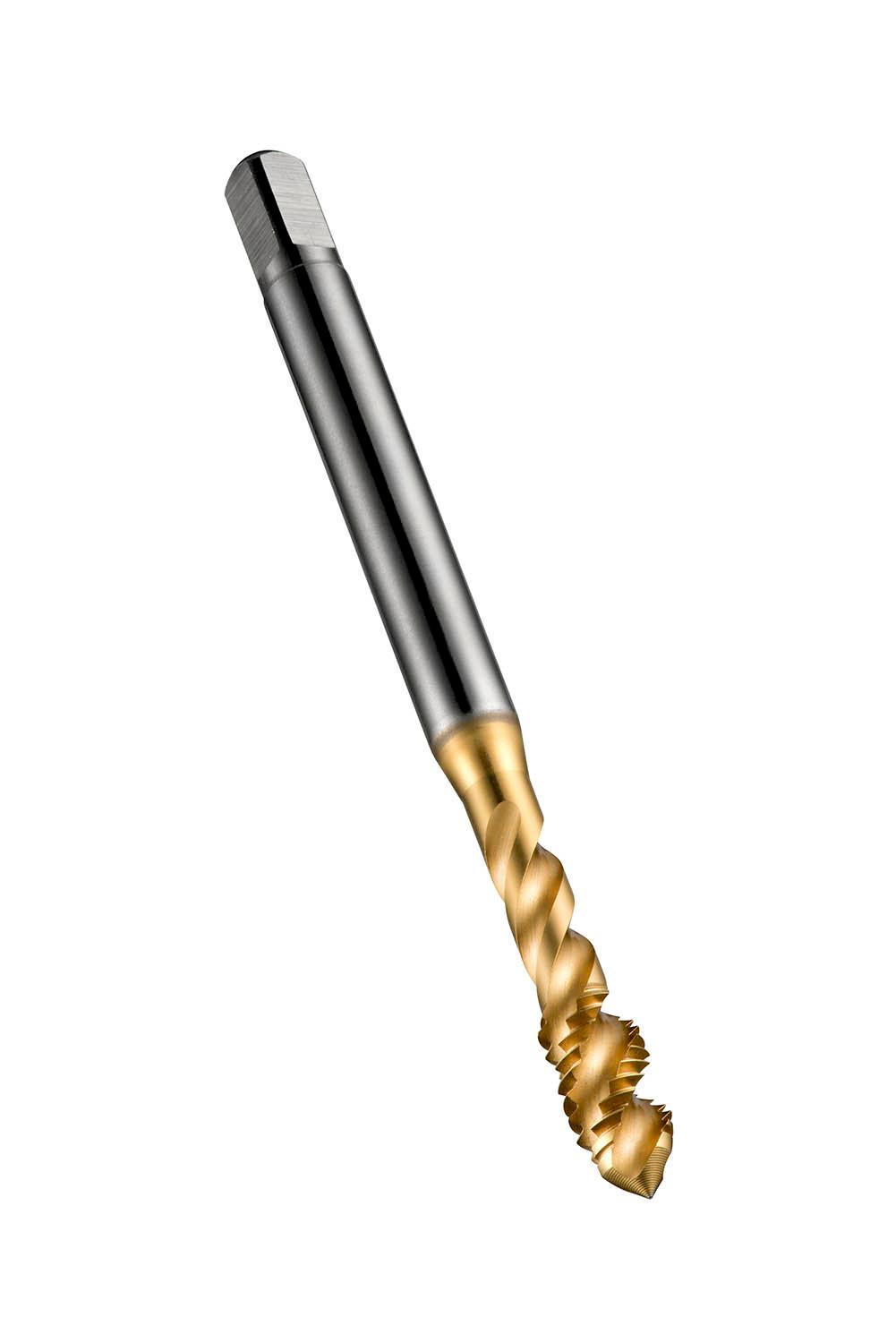

DORMER E002TINM6

Description

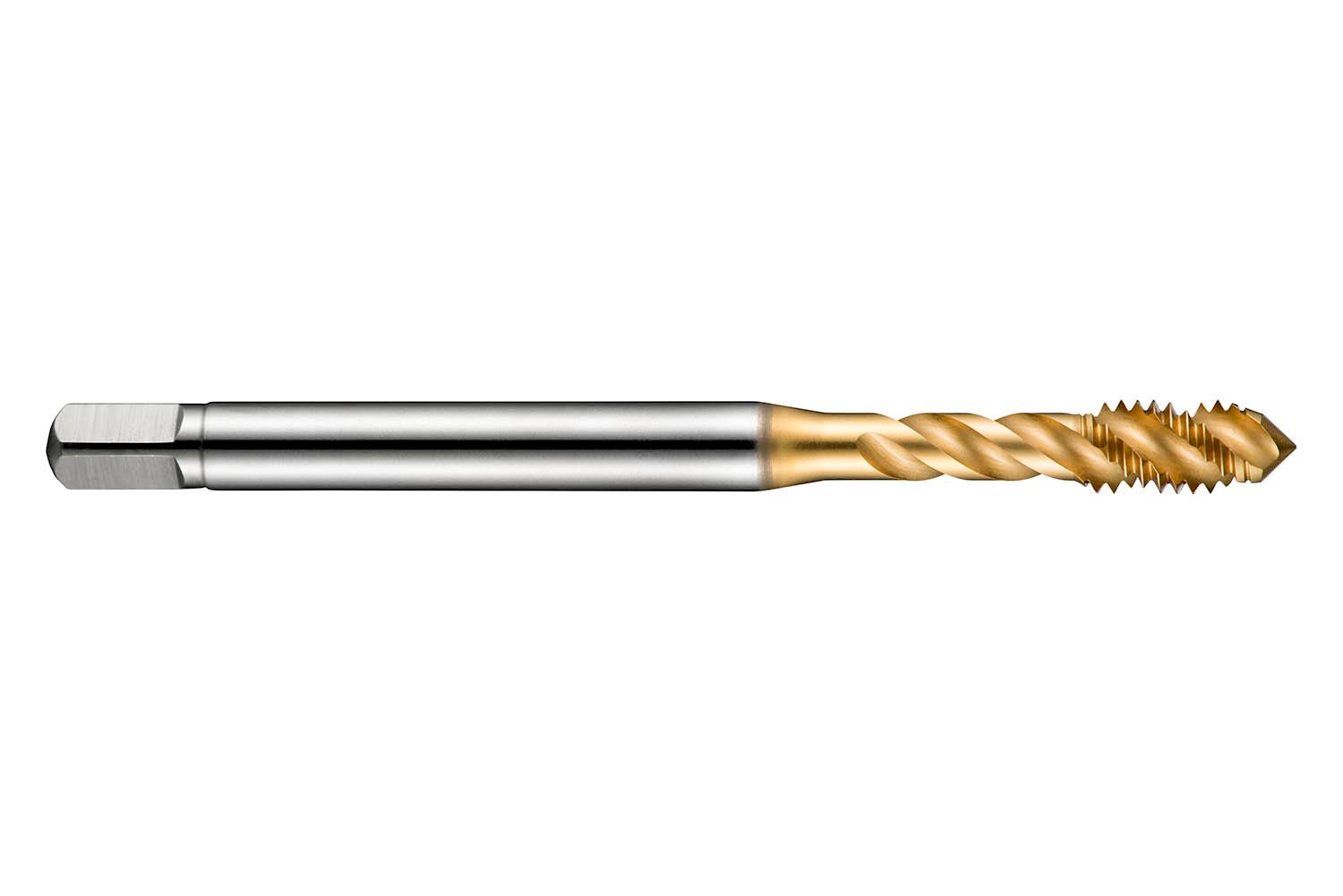

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 6.3mm shank and 5.0mm square drive, powder metallurgical HSS-E with TiN coating and 45° helix angle for 2.5xD blind hole threading in free machining, plain carbon and alloy steel, ferritic, martensitic and austenitic stainless steel and cast aluminium

Additional information

Weight	0.0737 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E002TINM6 Product number (SAP): 86014923 EAN number: 7320760662052 Thread diameter size (TDZ): 6 Thread pitch – millimeter (TP): 1 mm Overall length – millimeter (OAL): 66 mm Overall length – inch (OAL): 2.5984 inch Threading length – millimeter (THL): 10 mm Threading length – inch (THL): 0.3937 inch Connection diameter – inch (DCON MS): 0.248 inch Connection diameter – millimeter (DCON MS): 6.3 mm Flute count (NOF): 3 Usable Length – inch (LU): 1.063 inch Usable Length – millimeter (LU): 27 mm Clamping width – inch (WSC): 0.1969 inch Clamping width – millimeter (WSC): 5 mm Clamping Length – inch (LCS): 0.315 inch Clamping Length – millimeter (LSC): 8 mm Premachined hole diameter – inch (PHD): 0.1969 inch Premachined hole diameter – millimeter (PHD): 5 mm Gross weight – grams: 14 ISO: E002TINM6 Ordering code ANSI: E002TINM6

Need Technical Advice?

Description

Additional information

Brand

DORMER
