DORMER E003M22

Description

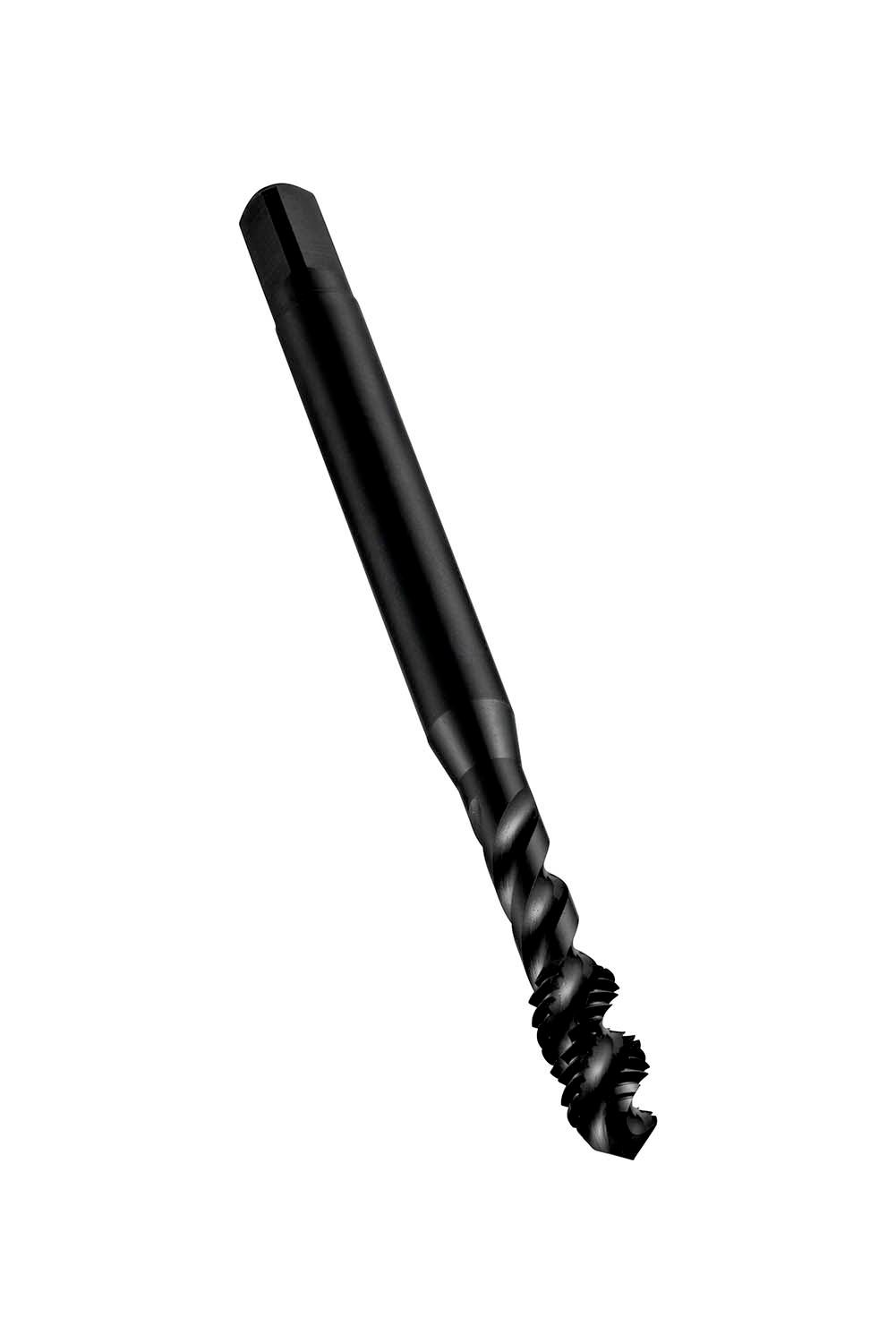

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 16.0mm shank and 12.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Additional information

Weight	0.2904 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E003M22 Product number (SAP): 86014933 EAN number: 7320760568125 Thread diameter size (TDZ): 22 Thread pitch – millimeter (TP): 2.5 mm Overall length – millimeter (OAL): 118 mm Overall length – inch (OAL): 4.6457 inch Threading length – millimeter (THL): 29 mm Threading length – inch (THL): 1.1417 inch Connection diameter – inch (DCON MS): 0.6299 inch Connection diameter – millimeter (DCON MS): 16 mm Flute count (NOF): 4 Tolerance limit: D8 Clamping width – inch (WSC): 0.4921 inch Clamping width – millimeter (WSC): 12.5 mm Clamping Length – inch (LCS): 0.6299 inch Clamping Length – millimeter (LSC): 16 mm Premachined hole diameter – inch (PHD): 0.7677 inch Premachined hole diameter – millimeter (PHD): 19.5 mm Gross weight – grams: 179.8 ISO: E003M22 Ordering code ANSI: E003M22

Need Technical Advice?

Description

Additional information

Brand

DORMER
