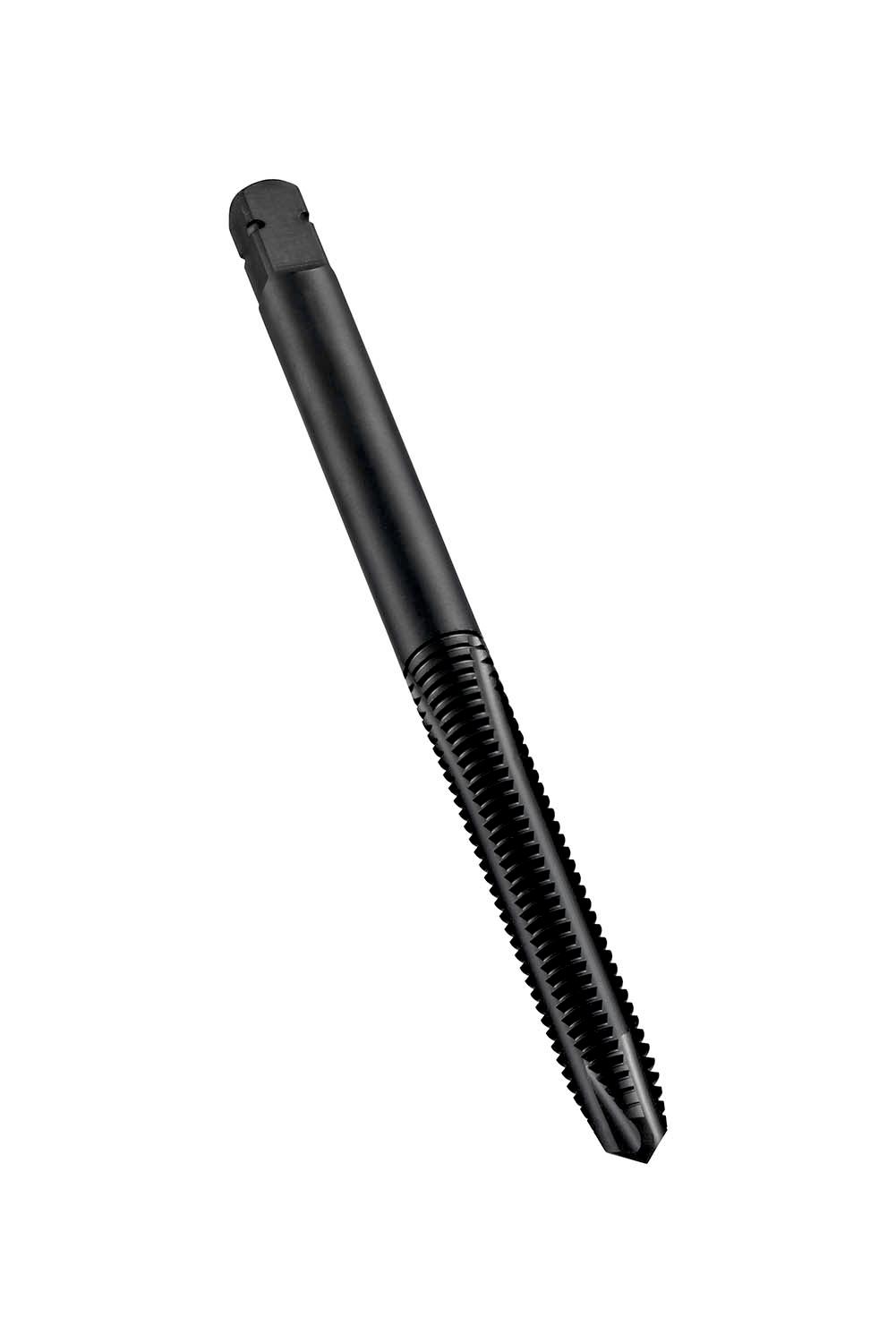

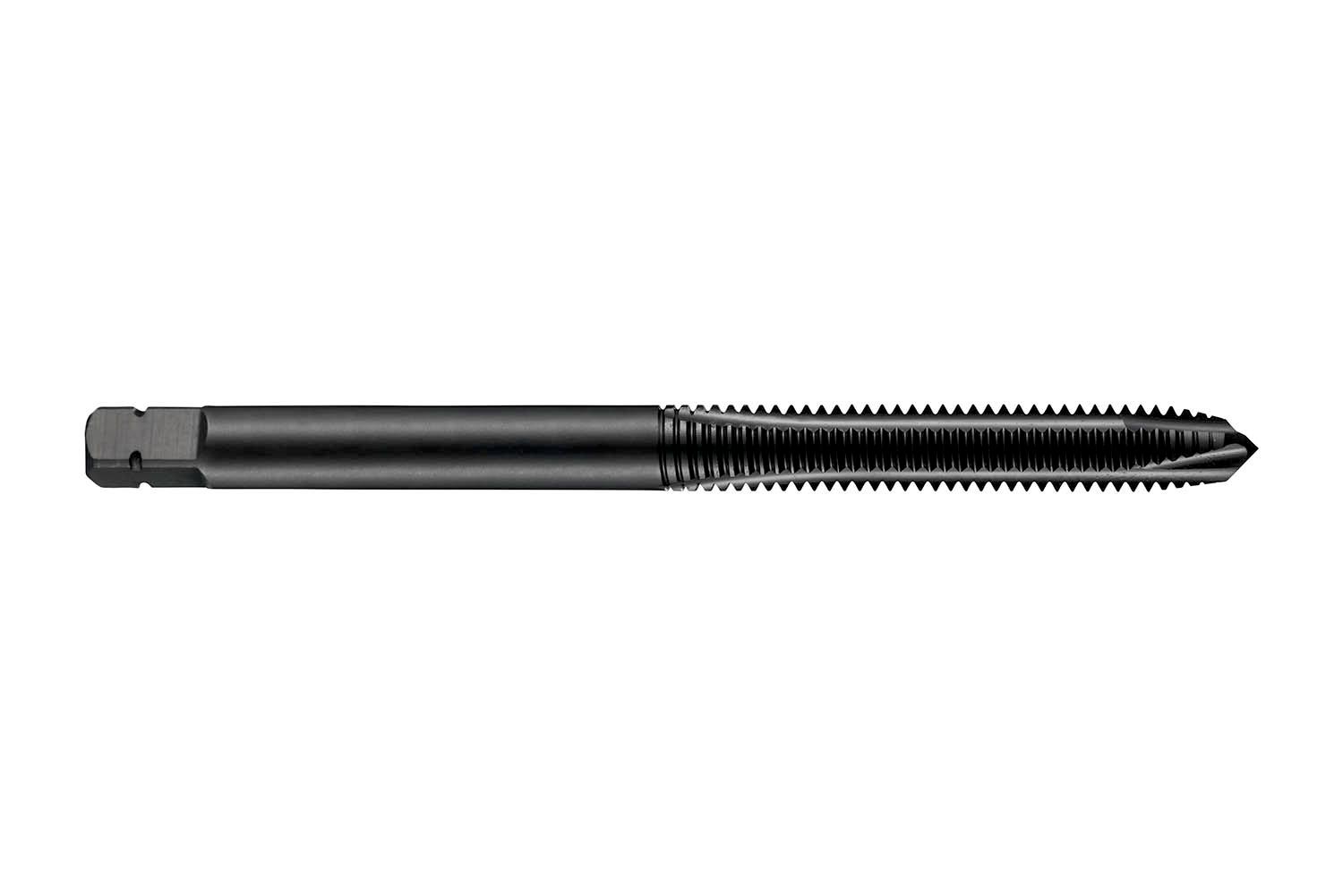

DORMER E011M10X1.0

Description: Value
Product name: E011M10X1.0
Product number (SAP): 86014966
EAN number: 7320760568446
Thread diameter size (TDZ): 10
Thread pitch – millimeter (TP): 1 mm
Overall length – millimeter (OAL): 80 mm
Overall length – inch (OAL): 3.1496 inch
Threading length – millimeter (THL): 18 mm
Threading length – inch (THL): 0.7087 inch
Connection diameter – inch (DCON MS): 0.3937 inch
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
Tolerance limit: D6
Usable Length – inch (LU): 1.3386 inch
Usable Length – millimeter (LU): 34 mm
Clamping width – inch (WSC): 0.315 inch
Clamping width – millimeter (WSC): 8 mm
Clamping Length – inch (LCS): 0.4331 inch
Clamping Length – millimeter (LSC): 11 mm
Premachined hole diameter – inch (PHD): 0.3543 inch
Premachined hole diameter – millimeter (PHD): 9 mm
Gross weight – grams: 44.7
ISO: E011M10X1.0
Ordering code ANSI: E011M10X1.0
