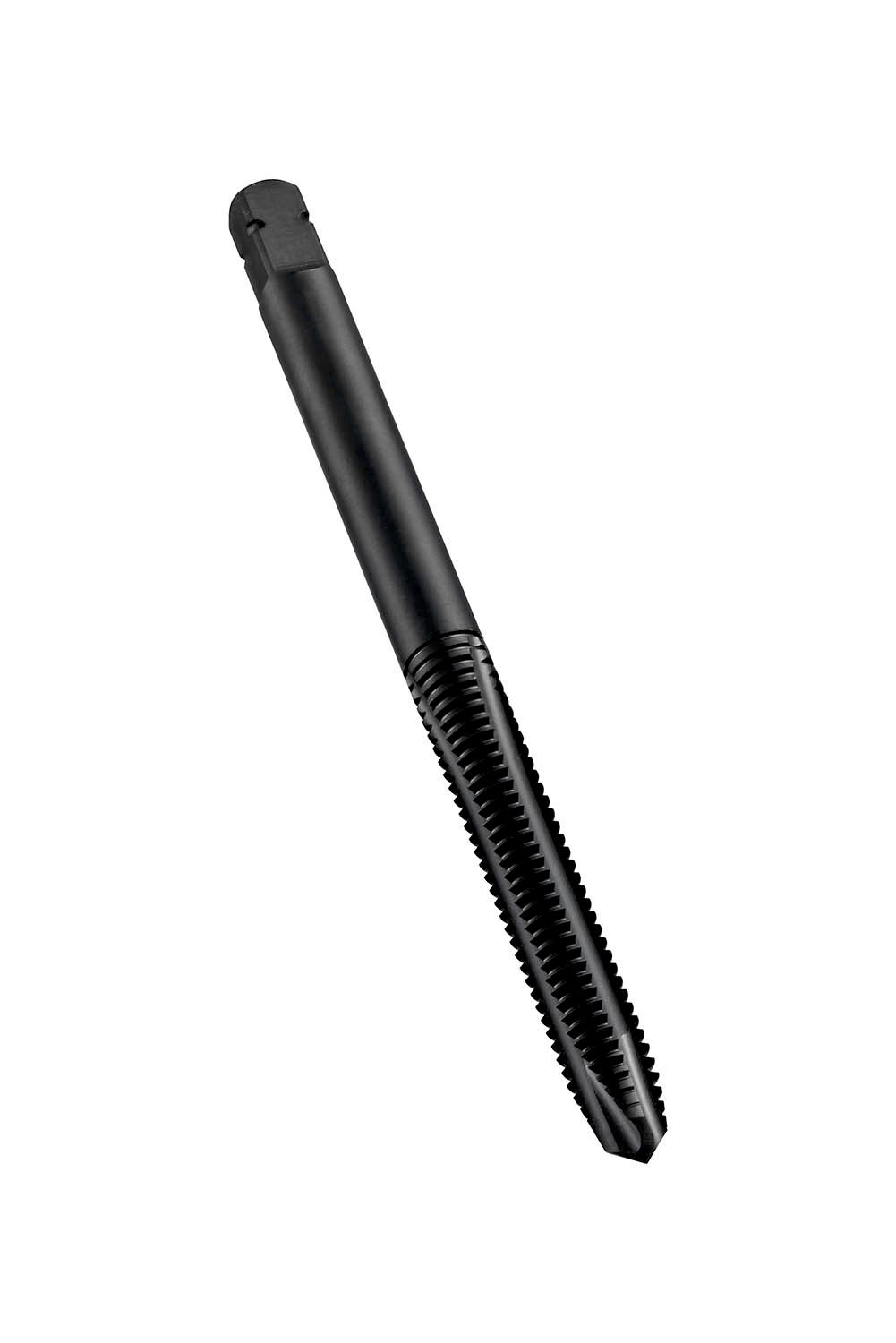

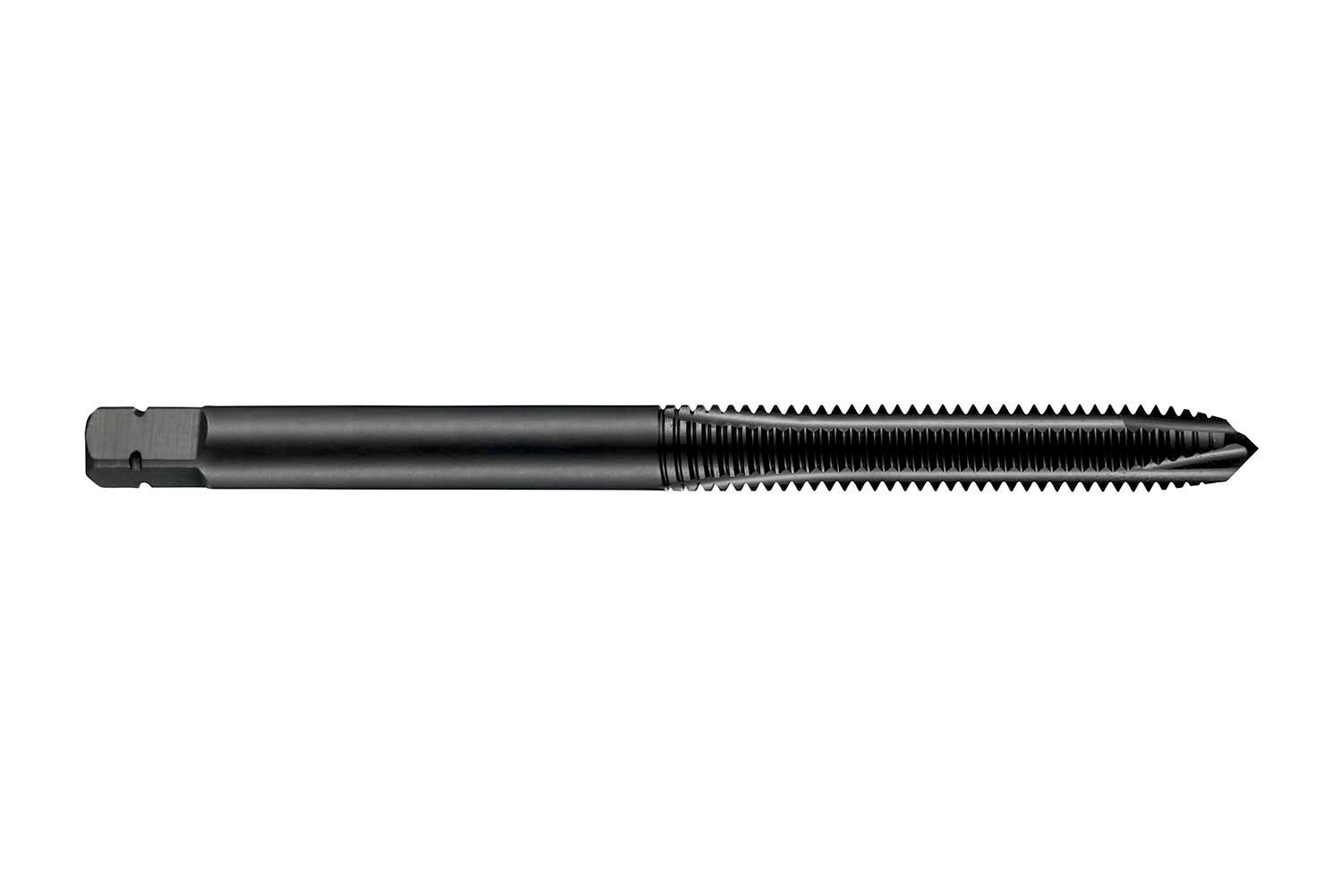

DORMER E011M14X1.0

Description: Value
Product name: E011M14X1.0
Product number (SAP): 86014971
EAN number: 7320760568491
Thread diameter size (TDZ): 14
Thread pitch – millimeter (TP): 1 mm
Overall length – millimeter (OAL): 95 mm
Overall length – inch (OAL): 3.7402 inch
Threading length – millimeter (THL): 24 mm
Threading length – inch (THL): 0.9449 inch
Connection diameter – inch (DCON MS): 0.4409 inch
Connection diameter – millimeter (DCON MS): 11.2 mm
Flute count (NOF): 3
Tolerance limit: D7
Clamping width – inch (WSC): 0.3543 inch
Clamping width – millimeter (WSC): 9 mm
Clamping Length – inch (LCS): 0.4724 inch
Clamping Length – millimeter (LSC): 12 mm
Premachined hole diameter – inch (PHD): 0.5118 inch
Premachined hole diameter – millimeter (PHD): 13 mm
Gross weight – grams: 75.2
ISO: E011M14X1.0
Ordering code ANSI: E011M14X1.0
