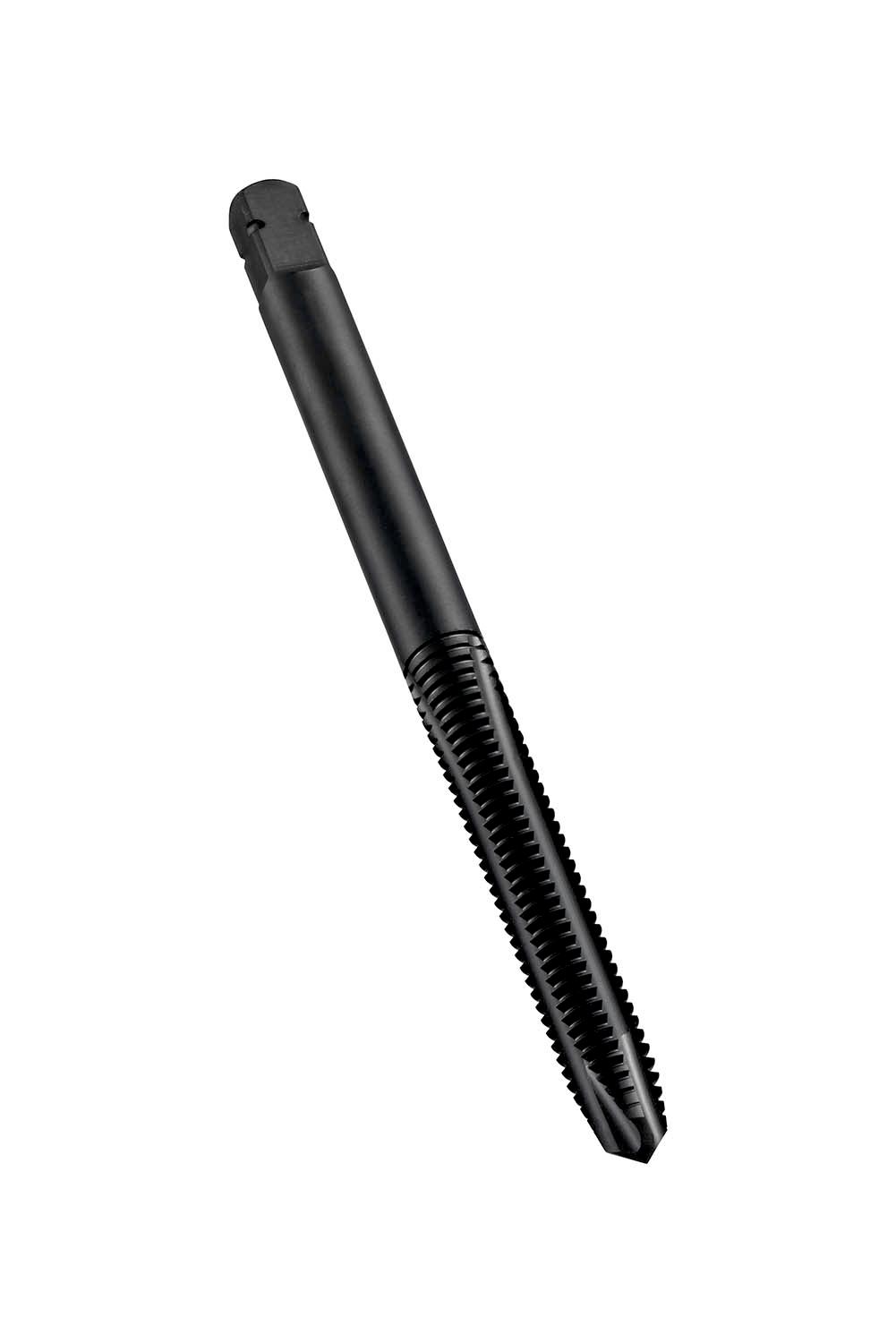

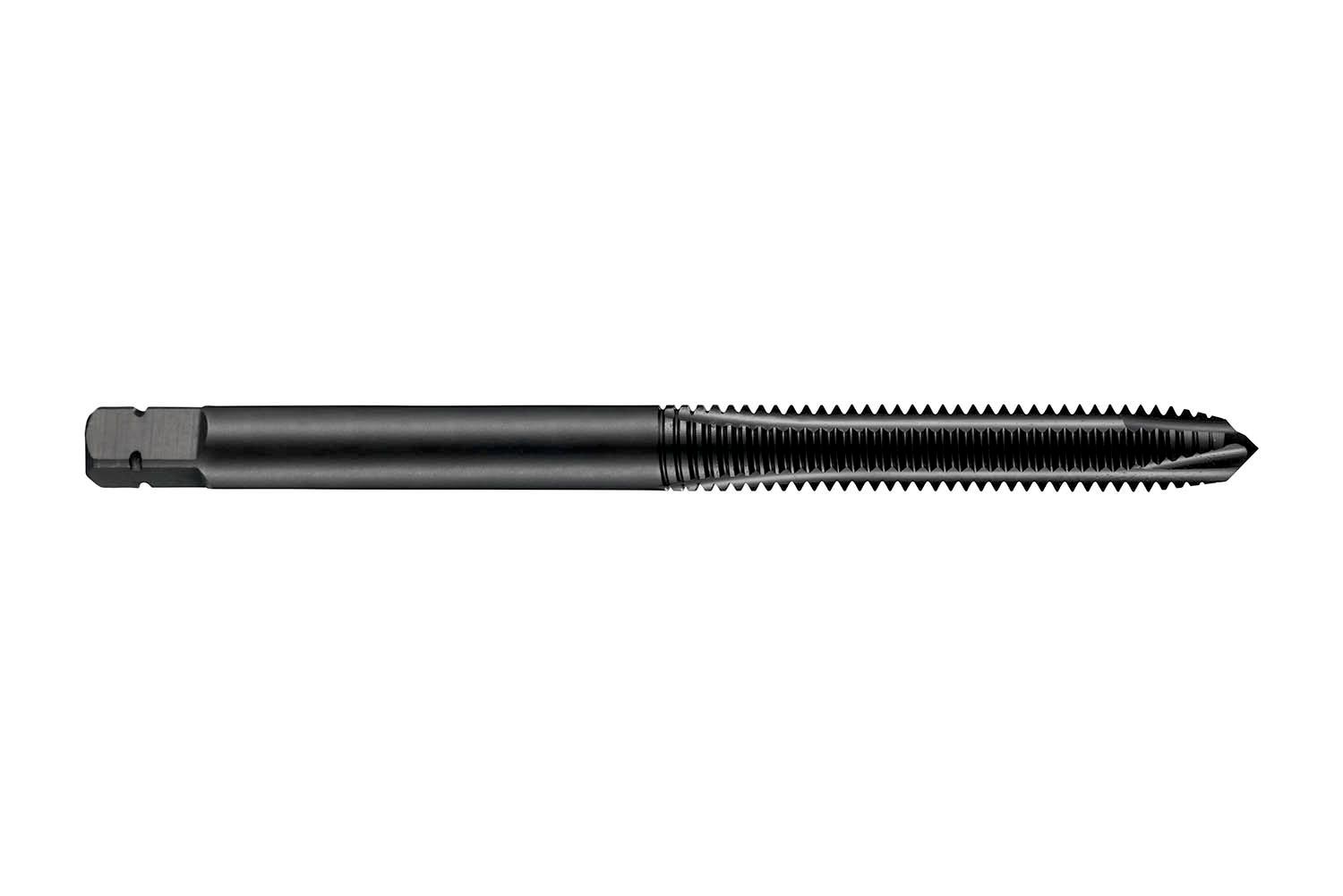

DORMER E011M4X.5

Description: Value
Product name: E011M4X.5
Product number (SAP): 86014984
EAN number: 7320760568385
Thread diameter size (TDZ): 4
Thread pitch – millimeter (TP): 0.5 mm
Overall length – millimeter (OAL): 53 mm
Overall length – inch (OAL): 2.0866 inch
Threading length – millimeter (THL): 17 mm
Threading length – inch (THL): 0.6693 inch
Connection diameter – inch (DCON MS): 0.1575 inch
Connection diameter – millimeter (DCON MS): 4 mm
Flute count (NOF): 3
Tolerance limit: D4
Usable Length – inch (LU): 0.6693 inch
Usable Length – millimeter (LU): 17 mm
Clamping width – inch (WSC): 0.124 inch
Clamping width – millimeter (WSC): 3.15 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.1378 inch
Premachined hole diameter – millimeter (PHD): 3.5 mm
Gross weight – grams: 7.7
ISO: E011M4X.5
Ordering code ANSI: E011M4X.5
