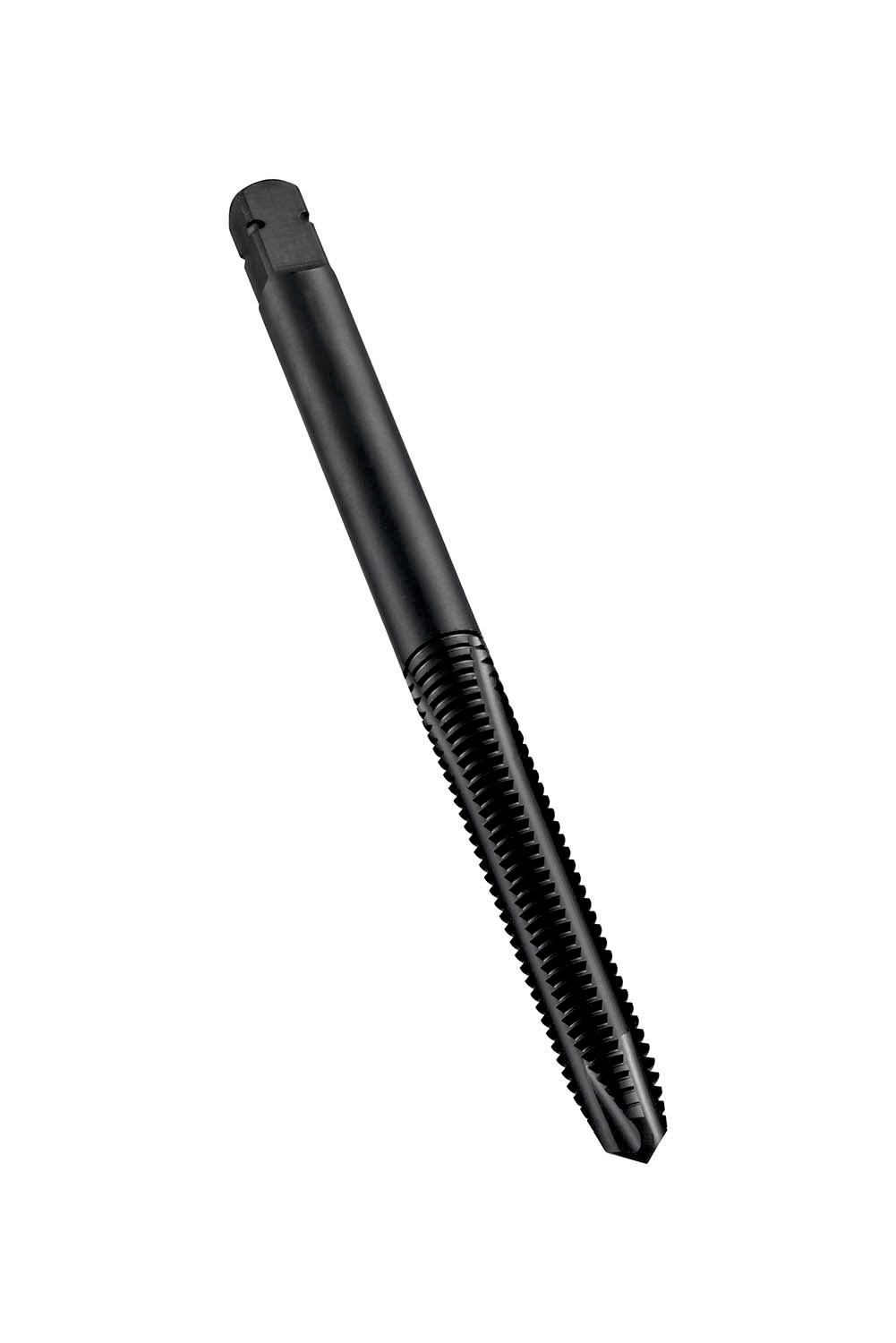

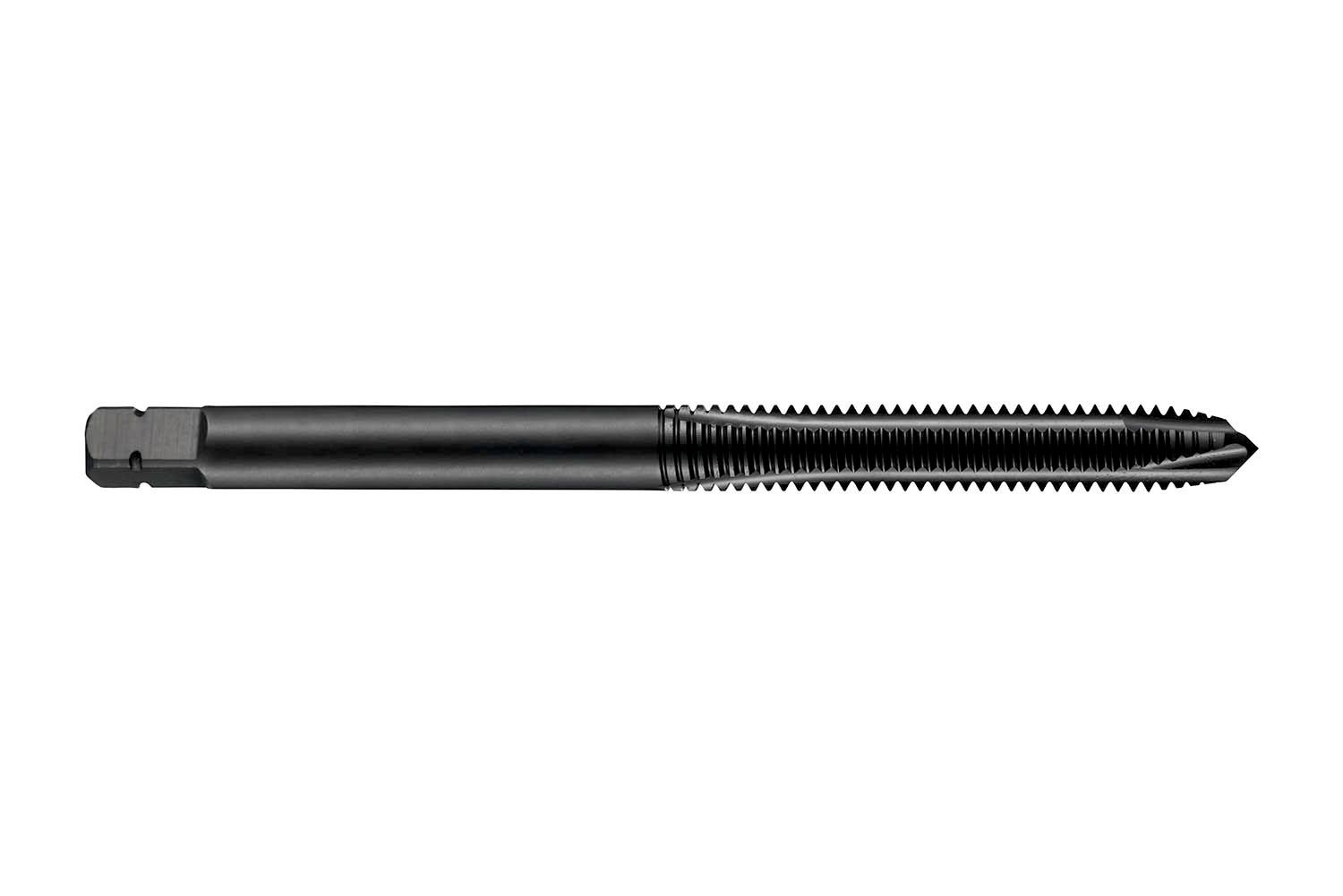

DORMER E0216-32

Description: Value
Product name: E0216-32
Product number (SAP): 86015052
EAN number: 7320760569115
Thread diameter size (TDZ): 6
Thread diameter – millimeter (TD): 3.505 mm
Threads per inch (TPI): 32
Overall length – millimeter (OAL): 50 mm
Overall length – inch (OAL): 1.9685 inch
Threading length – millimeter (THL): 16 mm
Threading length – inch (THL): 0.6299 inch
Connection diameter – inch (DCON MS): 0.1398 inch
Connection diameter – millimeter (DCON MS): 3.55 mm
Flute count (NOF): 3
Tolerance limit: H3
Usable Length – inch (LU): 0.6299 inch
Usable Length – millimeter (LU): 16 mm
Clamping width – inch (WSC): 0.1102 inch
Clamping width – millimeter (WSC): 2.8 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.1122 inch
Premachined hole diameter – millimeter (PHD): 2.85 mm
Gross weight – grams: 5.8
ISO: E0216-32
Ordering code ANSI: E0216-32
