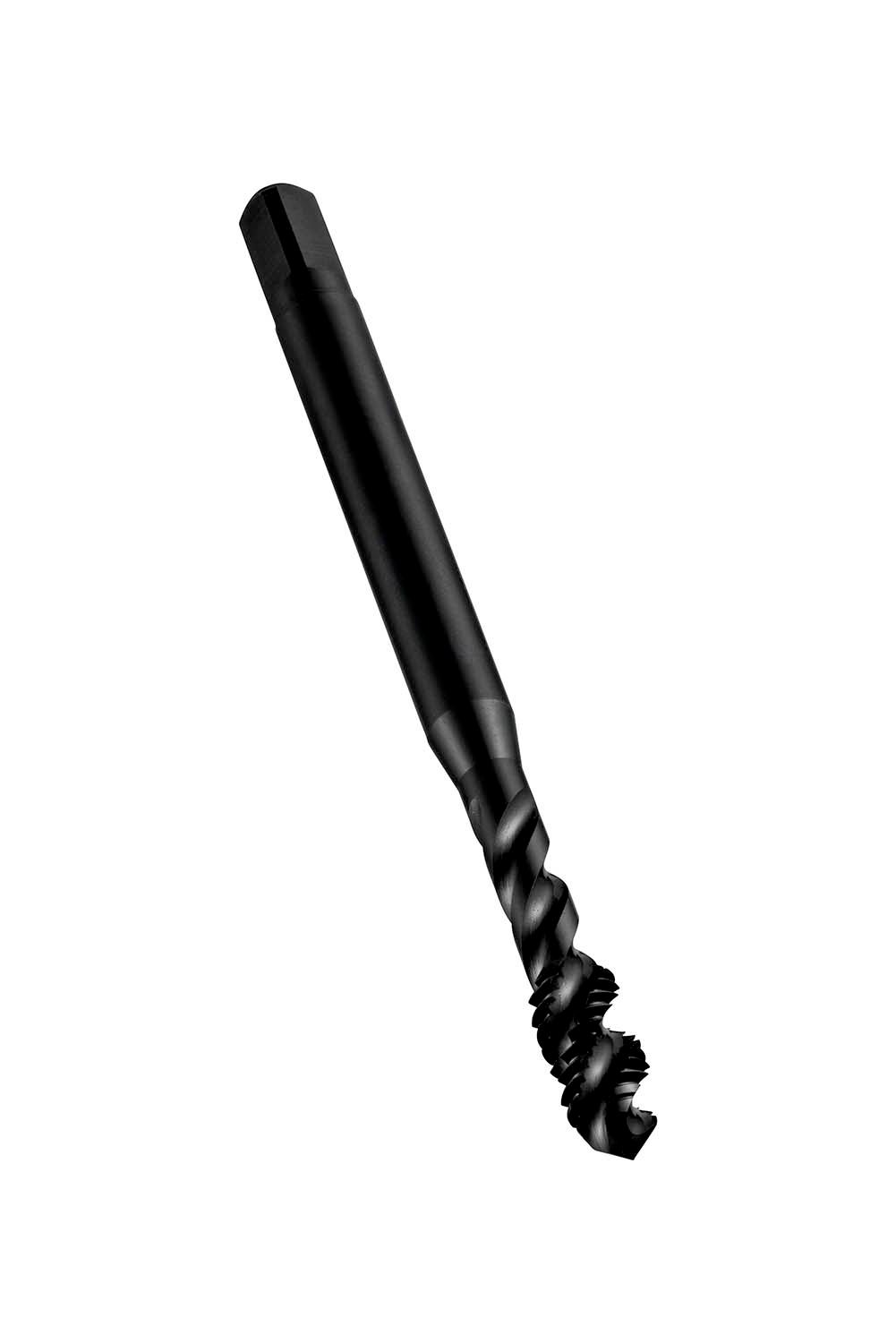

DORMER E0232-56

Description: Value
Product name: E0232-56
Product number (SAP): 86015077
EAN number: 7320760010440
Thread diameter size (TDZ): 2
Thread diameter – millimeter (TD): 2.184 mm
Threads per inch (TPI): 56
Overall length – millimeter (OAL): 44.5 mm
Overall length – inch (OAL): 1.752 inch
Threading length – millimeter (THL): 9.5 mm
Threading length – inch (THL): 0.374 inch
Connection diameter – inch (DCON MS): 0.1102 inch
Connection diameter – millimeter (DCON MS): 2.8 mm
Flute count (NOF): 2
Tolerance limit: H2
Usable Length – inch (LU): 0.374 inch
Usable Length – millimeter (LU): 9.5 mm
Clamping width – inch (WSC): 0.0882 inch
Clamping width – millimeter (WSC): 2.24 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.0728 inch
Premachined hole diameter – millimeter (PHD): 1.85 mm
Gross weight – grams: 4
ISO: E0232-56
Ordering code ANSI: E0232-56
