DORMER E0233/4

Description

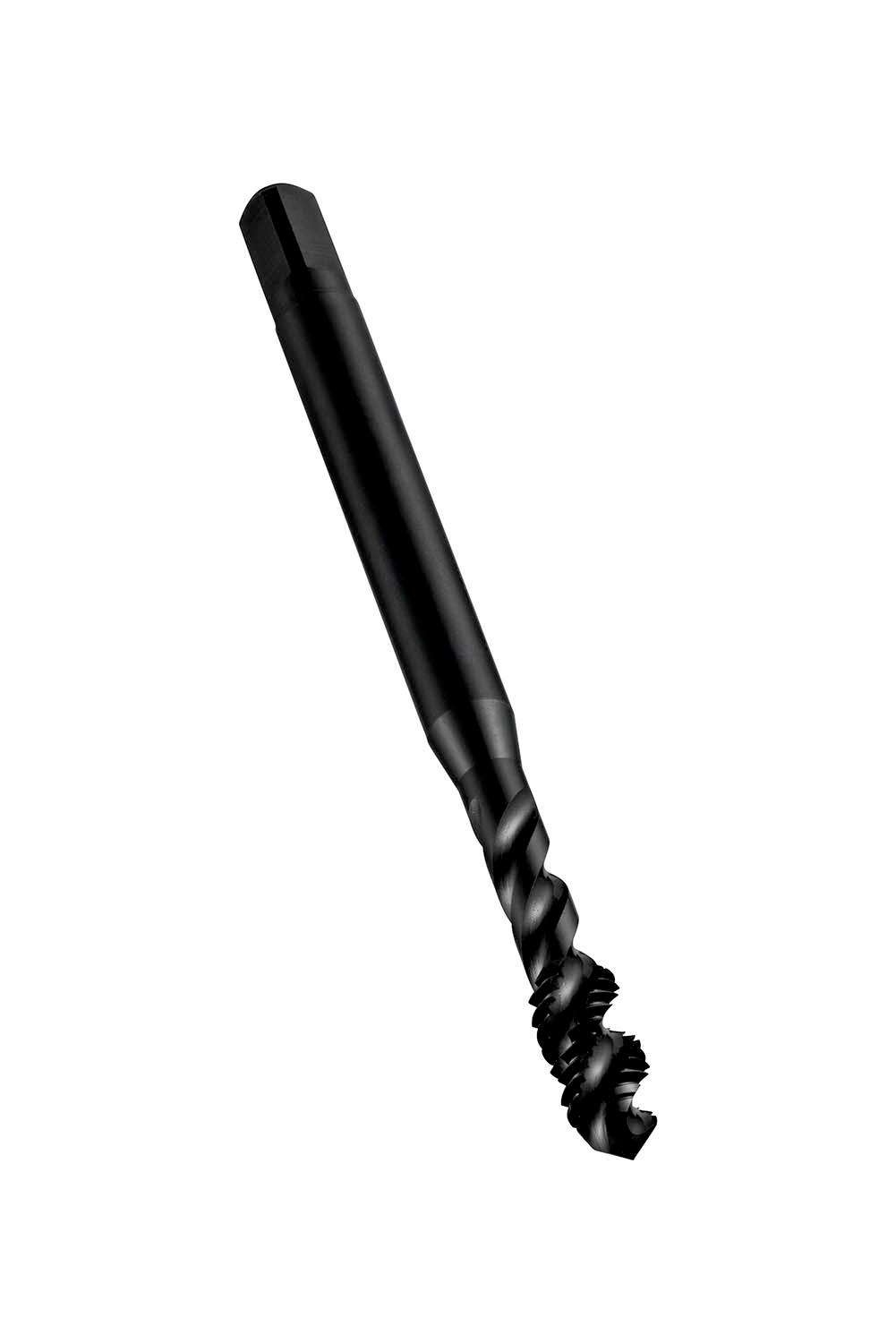

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 3/4″ with 10 TPI and 2B class of fit, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications

Additional information

Weight	0.2816 kg
Dimensions
barcode
Additional Information	Description: Value Product name: E0233/4 Product number (SAP): 86015078 EAN number: 7320760569498 Thread diameter size (TDZ): 3/4 Thread diameter – millimeter (TD): 19.05 mm Threads per inch (TPI): 10 Overall length – millimeter (OAL): 112 mm Overall length – inch (OAL): 4.4094 inch Threading length – millimeter (THL): 29 mm Threading length – inch (THL): 1.1417 inch Connection diameter – inch (DCON MS): 0.5512 inch Connection diameter – millimeter (DCON MS): 14 mm Flute count (NOF): 4 Tolerance limit: H5 Clamping width – inch (WSC): 0.4409 inch Clamping width – millimeter (WSC): 11.2 mm Clamping Length – inch (LCS): 0.5512 inch Clamping Length – millimeter (LSC): 14 mm Premachined hole diameter – inch (PHD): 0.6496 inch Premachined hole diameter – millimeter (PHD): 16.5 mm Gross weight – grams: 131.7 ISO: E0233/4 Ordering code ANSI: E0233/4

Need Technical Advice?

Description

Additional information

Brand

DORMER
