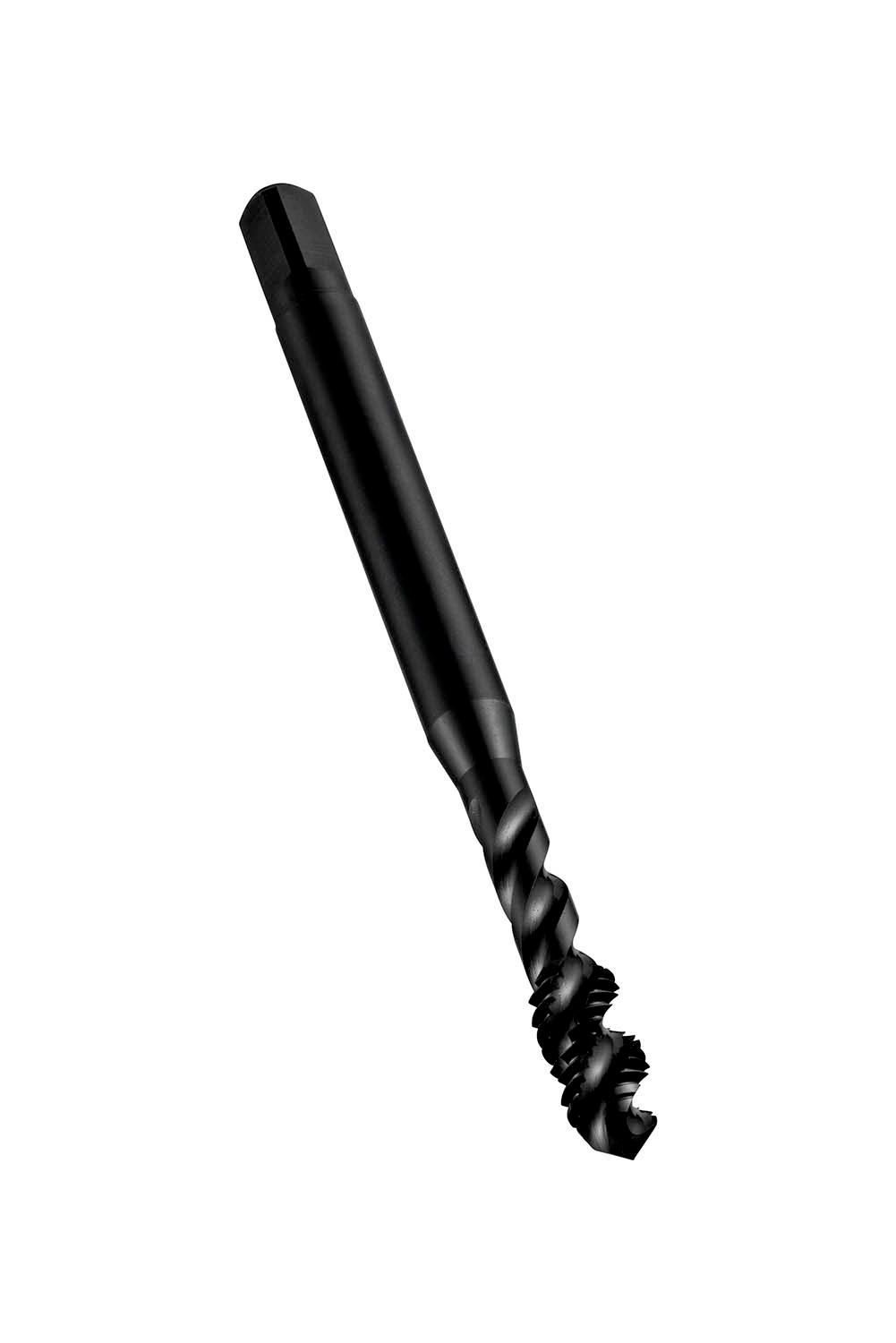

DORMER E0234-40

Description: Value
Product name: E0234-40
Product number (SAP): 86015080
EAN number: 7320760569382
Thread diameter size (TDZ): 4
Thread diameter – millimeter (TD): 2.845 mm
Threads per inch (TPI): 40
Overall length – millimeter (OAL): 48 mm
Overall length – inch (OAL): 1.8898 inch
Threading length – millimeter (THL): 6 mm
Threading length – inch (THL): 0.2362 inch
Connection diameter – inch (DCON MS): 0.124 inch
Connection diameter – millimeter (DCON MS): 3.15 mm
Flute count (NOF): 3
Tolerance limit: H2
Usable Length – inch (LU): 0.5512 inch
Usable Length – millimeter (LU): 14 mm
Clamping width – inch (WSC): 0.0984 inch
Clamping width – millimeter (WSC): 2.5 mm
Clamping Length – inch (LCS): 0.1969 inch
Clamping Length – millimeter (LSC): 5 mm
Premachined hole diameter – inch (PHD): 0.0925 inch
Premachined hole diameter – millimeter (PHD): 2.35 mm
Gross weight – grams: 5.4
ISO: E0234-40
Ordering code ANSI: E0234-40
