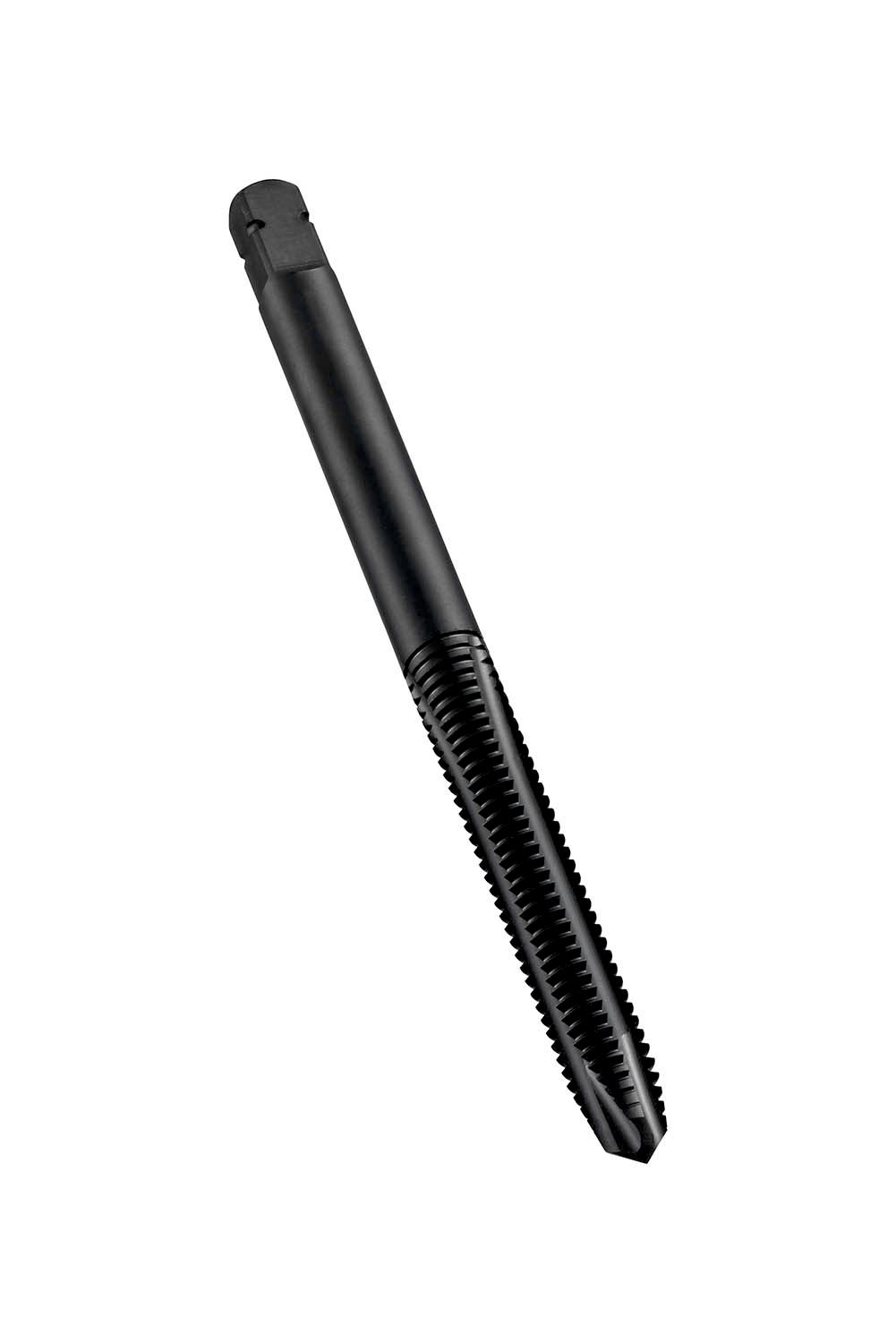

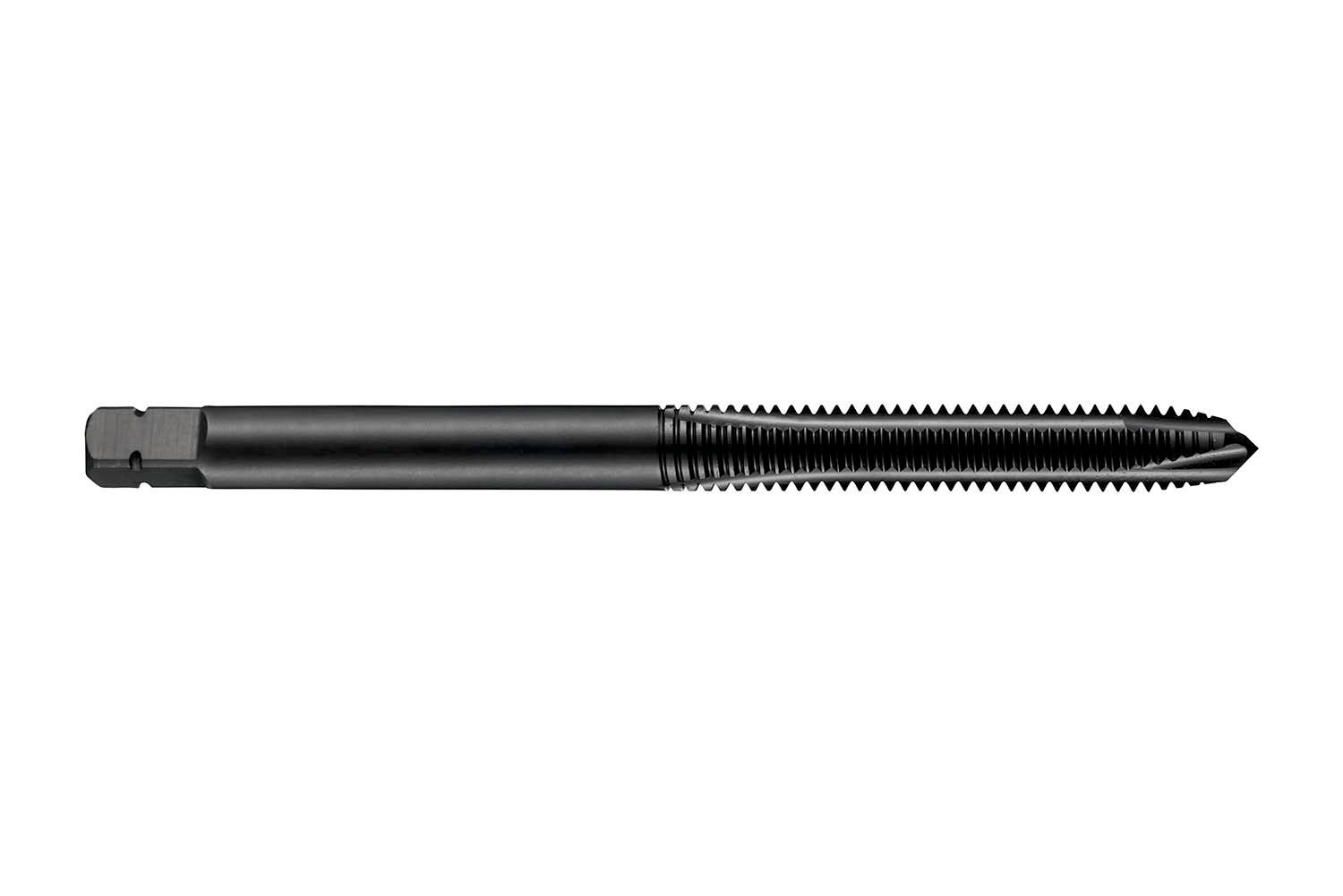

DORMER E0311

Description: Value
Product name: E0311
Product number (SAP): 86015100
EAN number: 7320760569757
Thread diameter size (TDZ): 1"
Thread diameter – millimeter (TD): 25.4 mm
Threads per inch (TPI): 12
Overall length – millimeter (OAL): 130 mm
Overall length – inch (OAL): 5.1181 inch
Threading length – millimeter (THL): 35 mm
Threading length – inch (THL): 1.378 inch
Connection diameter – inch (DCON MS): 0.7087 inch
Connection diameter – millimeter (DCON MS): 18 mm
Flute count (NOF): 4
Tolerance limit: H6
Clamping width – inch (WSC): 0.5512 inch
Clamping width – millimeter (WSC): 14 mm
Clamping Length – inch (LCS): 0.7087 inch
Clamping Length – millimeter (LSC): 18 mm
Premachined hole diameter – inch (PHD): 0.9154 inch
Premachined hole diameter – millimeter (PHD): 23.25 mm
Gross weight – grams: 286.1
ISO: E0311
Ordering code ANSI: E0311
