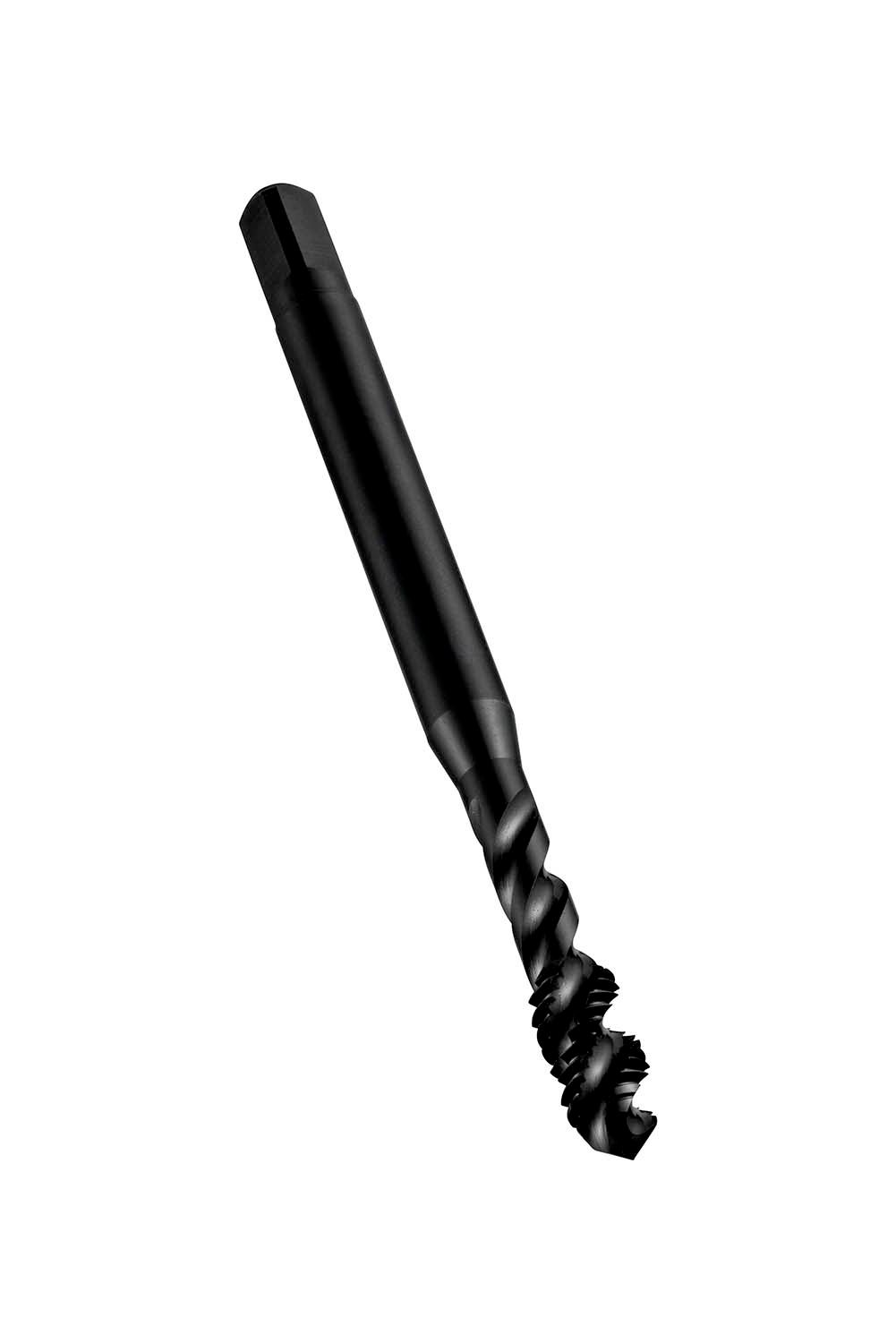

DORMER E0338-36

Description: Value
Product name: E0338-36
Product number (SAP): 86015134
EAN number: 7320760570081
Thread diameter size (TDZ): 8
Thread diameter – millimeter (TD): 4.166 mm
Threads per inch (TPI): 36
Overall length – millimeter (OAL): 53 mm
Overall length – inch (OAL): 2.0866 inch
Threading length – millimeter (THL): 7 mm
Threading length – inch (THL): 0.2756 inch
Connection diameter – inch (DCON MS): 0.1772 inch
Connection diameter – millimeter (DCON MS): 4.5 mm
Flute count (NOF): 3
Tolerance limit: H3
Usable Length – inch (LU): 0.6693 inch
Usable Length – millimeter (LU): 17 mm
Clamping width – inch (WSC): 0.1398 inch
Clamping width – millimeter (WSC): 3.55 mm
Clamping Length – inch (LCS): 0.2362 inch
Clamping Length – millimeter (LSC): 6 mm
Premachined hole diameter – inch (PHD): 0.1378 inch
Premachined hole diameter – millimeter (PHD): 3.5 mm
Gross weight – grams: 8.2
ISO: E0338-36
Ordering code ANSI: E0338-36
