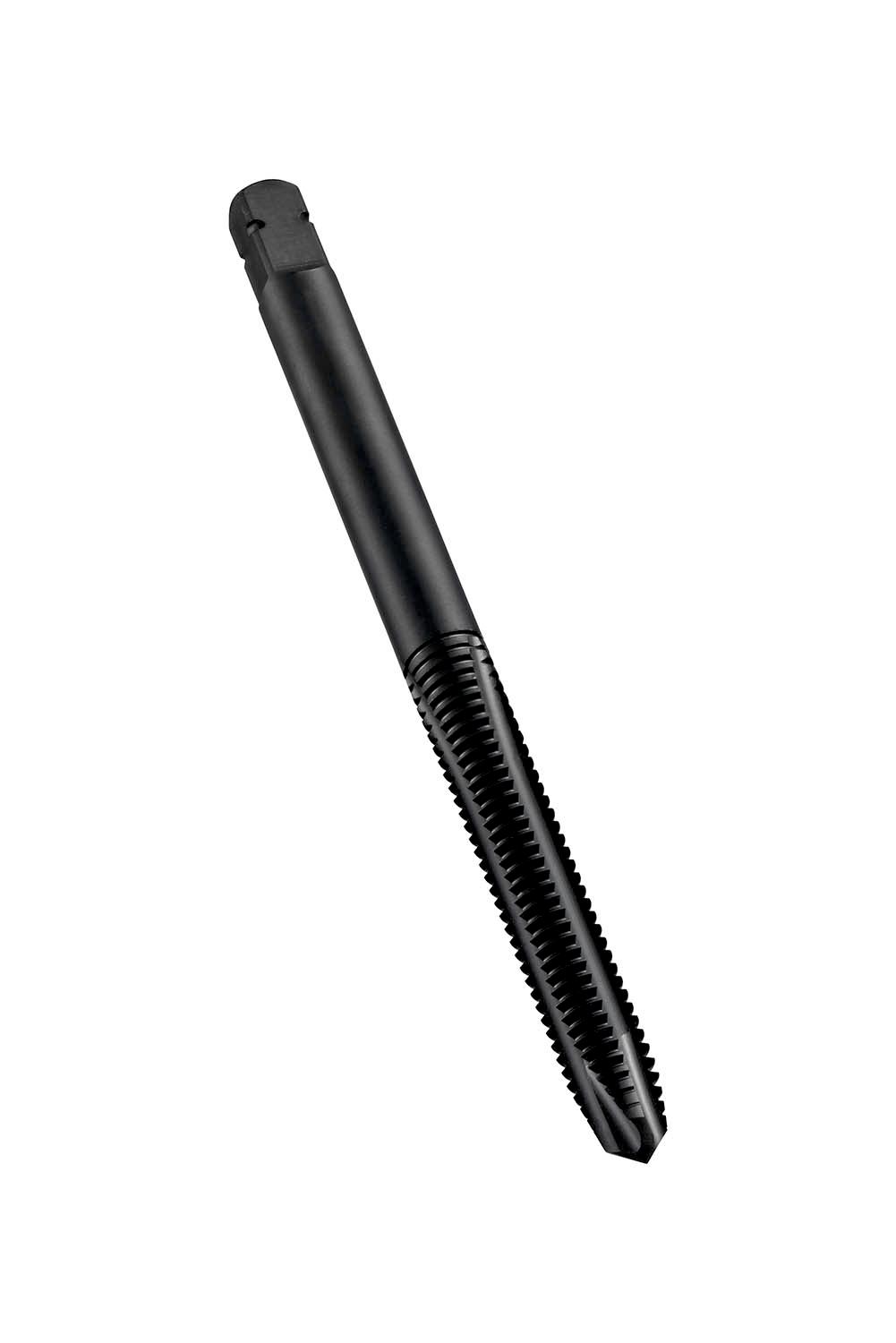

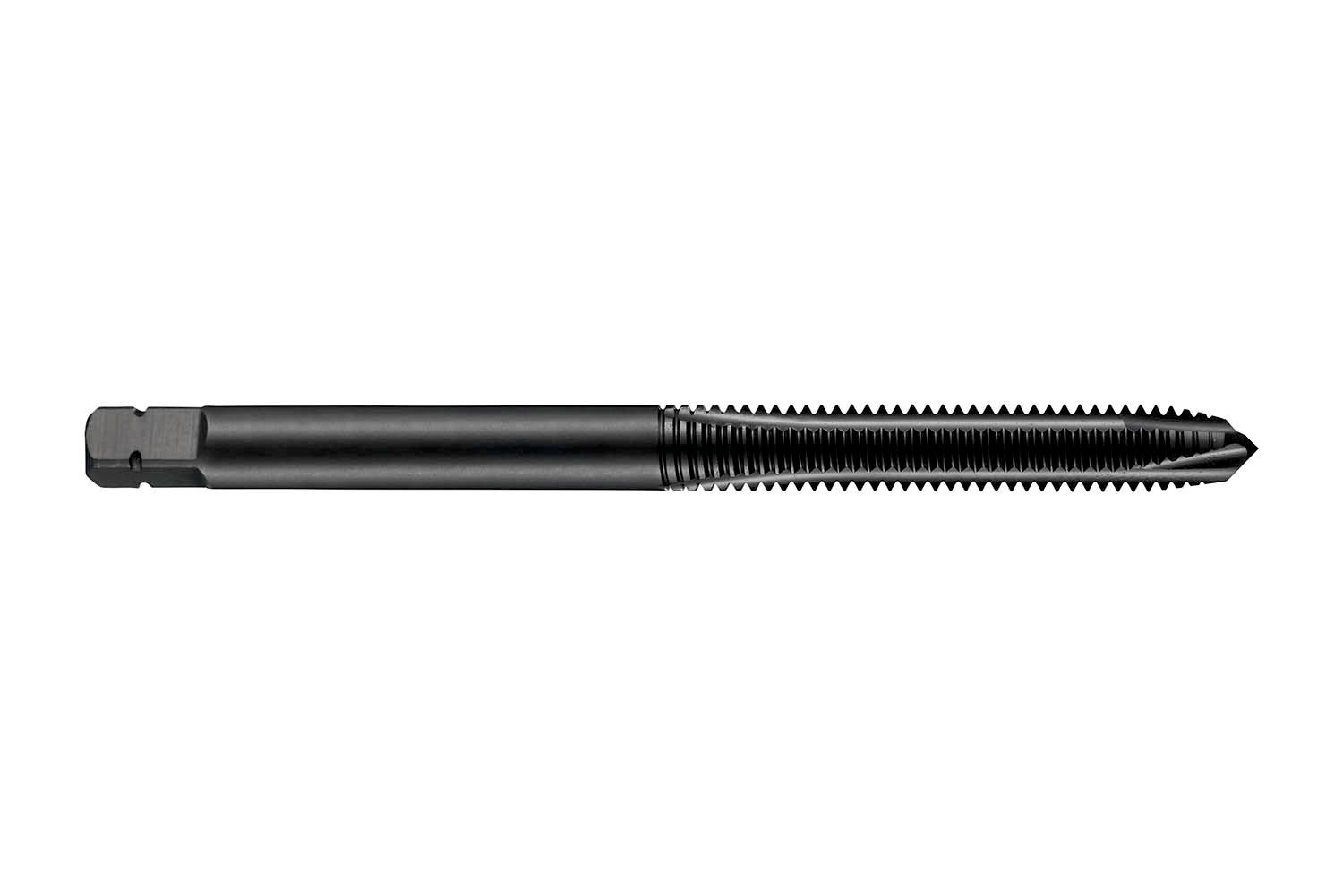

DORMER E0411/2

Description: Value
Product name: E0411/2
Product number (SAP): 86015141
EAN number: 7320760569849

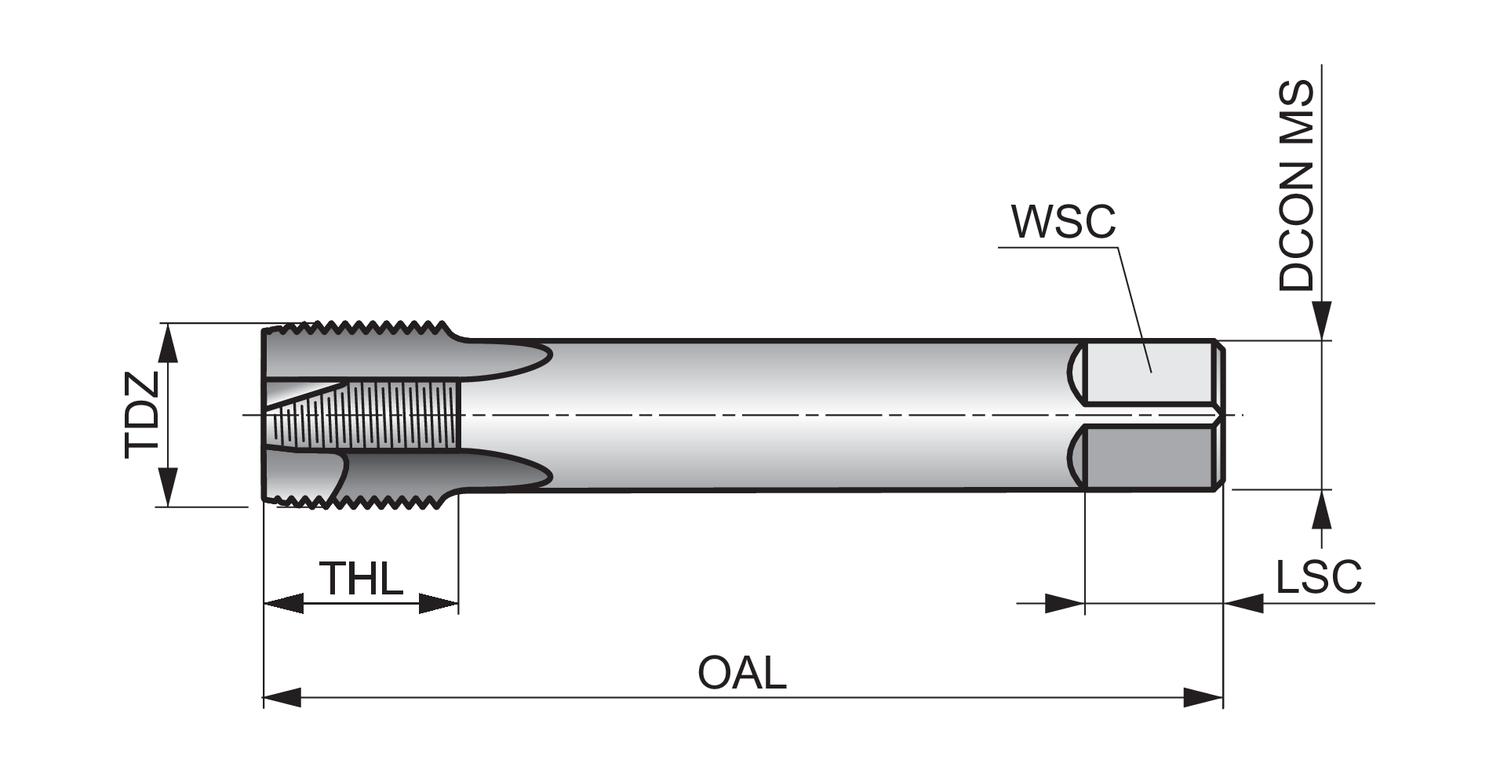

Thread diameter size (TDZ): 1/2
Thread diameter – millimeter (TD): 20.955 mm
Threads per inch (TPI): 14
Overall length – millimeter (OAL): 125 mm
Overall length – inch (OAL): 4.9213 inch
Threading length – millimeter (THL): 26 mm
Threading length – inch (THL): 1.0236 inch
Connection diameter – inch (DCON MS): 0.6299 inch
Connection diameter – millimeter (DCON MS): 16 mm
Flute count (NOF): 4
Clamping width – inch (WSC): 0.4921 inch
Clamping width – millimeter (WSC): 12.5 mm
Clamping Length – inch (LCS): 0.6299 inch
Clamping Length – millimeter (LSC): 16 mm
Premachined hole diameter – inch (PHD): 0.748 inch
Premachined hole diameter – millimeter (PHD): 19 mm
Gross weight – grams: 208.5
ISO: E0411/2
Ordering code ANSI: E0411/2
