DORMER E0411/4

Description: Value
Product name: E0411/4
Product number (SAP): 86015142
EAN number: 7320760569825

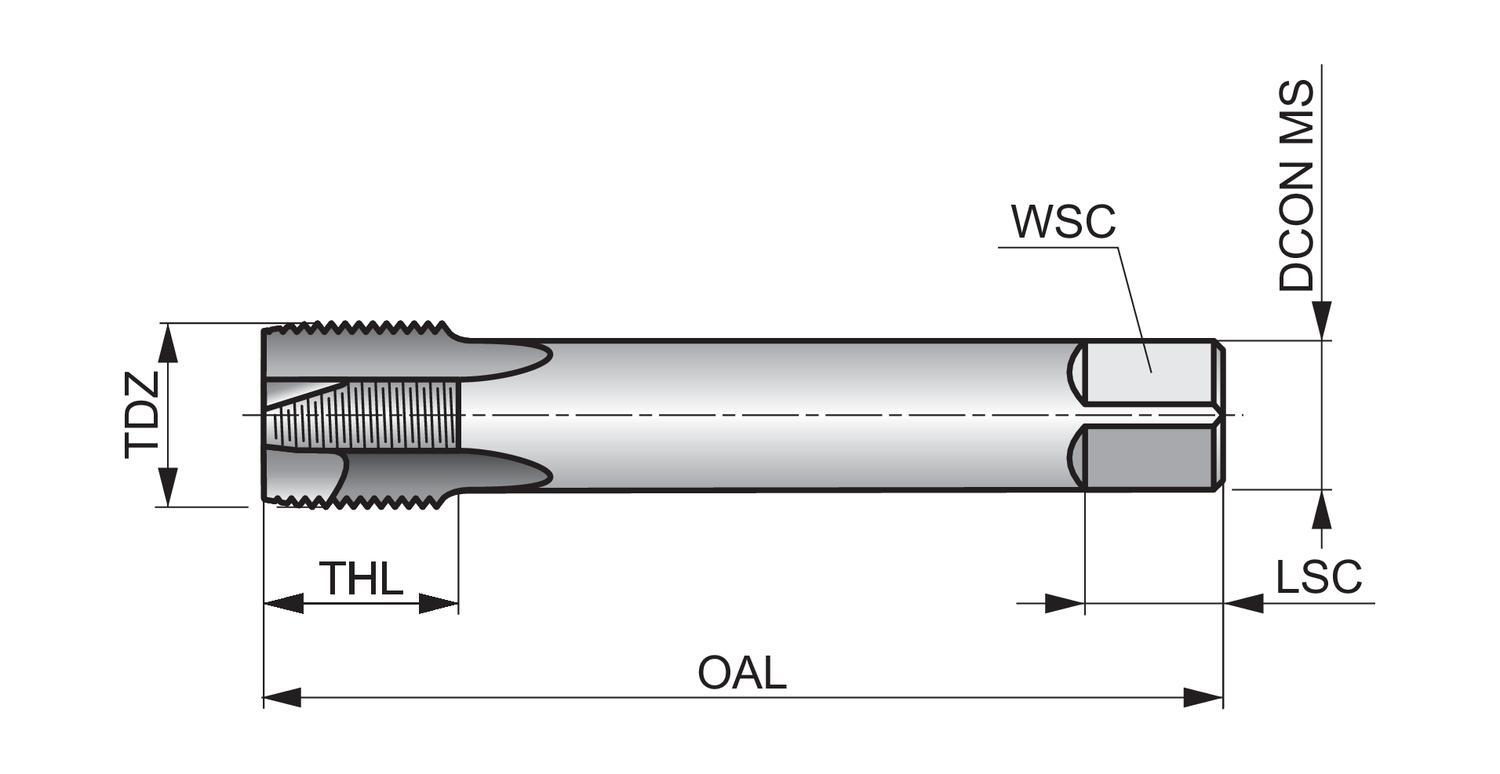

Thread diameter size (TDZ): 1/4
Thread diameter – millimeter (TD): 13.157 mm
Threads per inch (TPI): 19
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 19 mm
Threading length – inch (THL): 0.748 inch
Connection diameter – inch (DCON MS): 0.3937 inch
Connection diameter – millimeter (DCON MS): 10 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.315 inch
Clamping width – millimeter (WSC): 8 mm
Clamping Length – inch (LCS): 0.4331 inch
Clamping Length – millimeter (LSC): 11 mm
Premachined hole diameter – inch (PHD): 0.4646 inch
Premachined hole diameter – millimeter (PHD): 11.8 mm
Gross weight – grams: 64.9
ISO: E0411/4
Ordering code ANSI: E0411/4
