DORMER E0413/8

Description: Value
Product name: E0413/8
Product number (SAP): 86015145
EAN number: 7320760569832

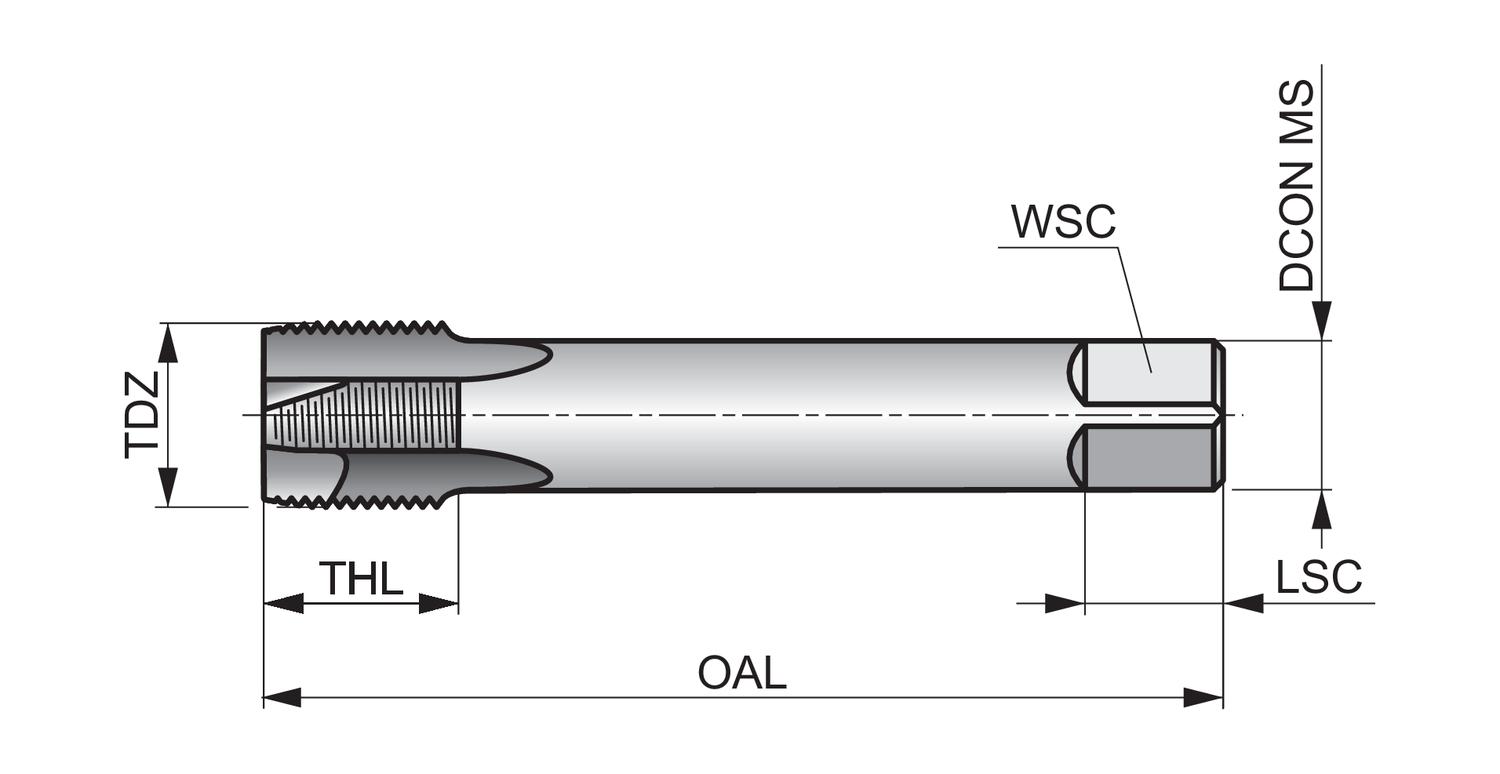

Thread diameter size (TDZ): 3/8
Thread diameter – millimeter (TD): 16.662 mm
Threads per inch (TPI): 19
Overall length – millimeter (OAL): 100 mm
Overall length – inch (OAL): 3.937 inch
Threading length – millimeter (THL): 21 mm
Threading length – inch (THL): 0.8268 inch
Connection diameter – inch (DCON MS): 0.4921 inch
Connection diameter – millimeter (DCON MS): 12.5 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.3937 inch
Clamping width – millimeter (WSC): 10 mm
Clamping Length – inch (LCS): 0.5118 inch
Clamping Length – millimeter (LSC): 13 mm
Premachined hole diameter – inch (PHD): 0.6004 inch
Premachined hole diameter – millimeter (PHD): 15.25 mm
Gross weight – grams: 101.3
ISO: E0413/8
Ordering code ANSI: E0413/8
