DORMER E0431/8

Description: Value
Product name: E0431/8
Product number (SAP): 86015153
EAN number: 7320760569917

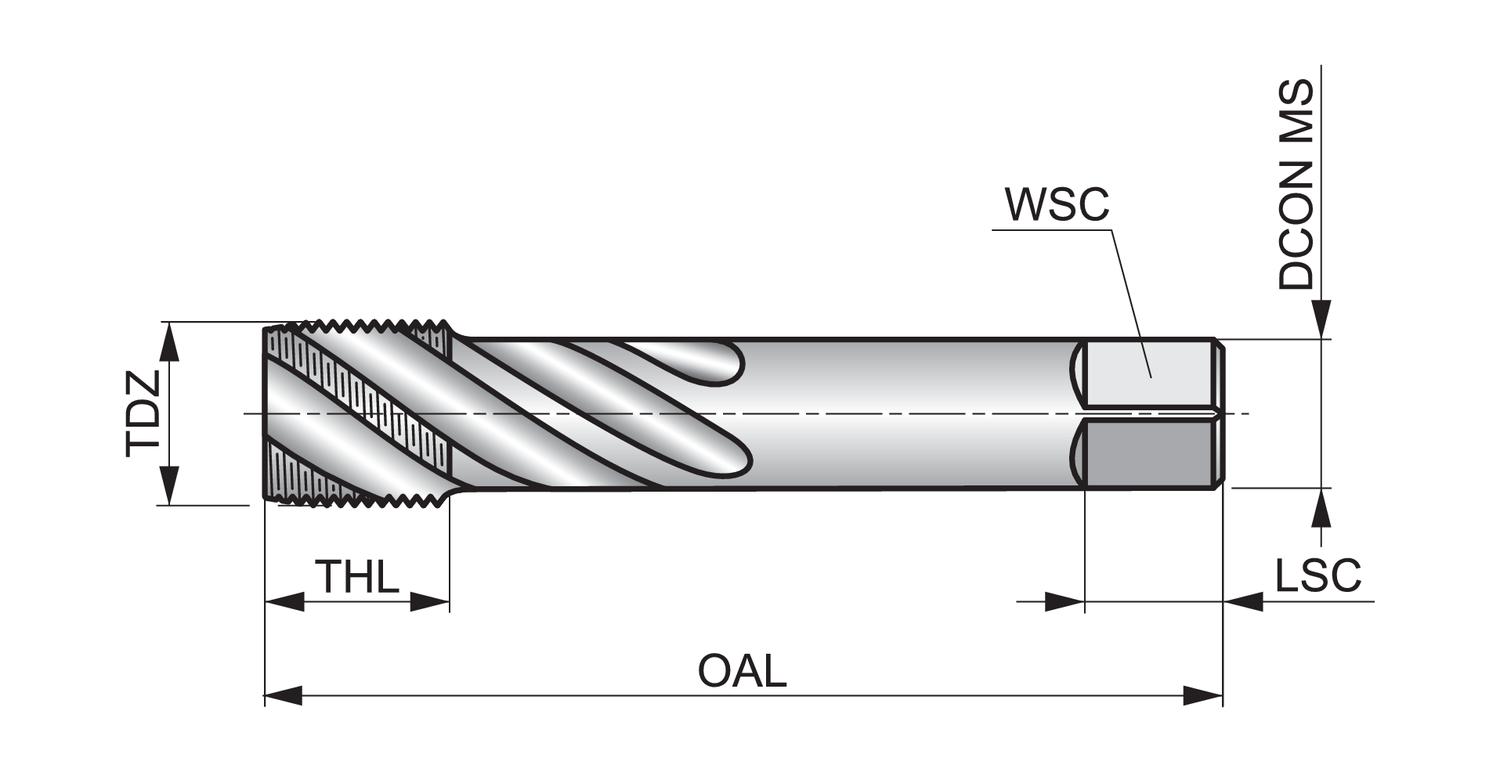

Thread diameter size (TDZ): 1/8
Thread diameter – millimeter (TD): 9.728 mm
Threads per inch (TPI): 28
Overall length – millimeter (OAL): 90 mm
Overall length – inch (OAL): 3.5433 inch
Threading length – millimeter (THL): 15 mm
Threading length – inch (THL): 0.5906 inch
Connection diameter – inch (DCON MS): 0.315 inch
Connection diameter – millimeter (DCON MS): 8 mm
Flute count (NOF): 3
Clamping width – inch (WSC): 0.248 inch
Clamping width – millimeter (WSC): 6.3 mm
Clamping Length – inch (LCS): 0.3543 inch
Clamping Length – millimeter (LSC): 9 mm
Premachined hole diameter – inch (PHD): 0.3465 inch
Premachined hole diameter – millimeter (PHD): 8.8 mm
Gross weight – grams: 37
ISO: E0431/8
Ordering code ANSI: E0431/8
